Home
>>
Cadillac
>>
1998
>>
Catera V6-3.0L VIN R
>>
Repair and Diagnosis
>>
Accessories and Optional Equipment
>>
Antitheft and Alarm Systems
>>
Keyless Entry
>>
Diagrams
>>
Electrical Diagrams
>>
Door Lock, Trunk Lid Lock Release and Fuel Door Actuators
Door Lock, Trunk Lid Lock Release and Fuel Door Actuators

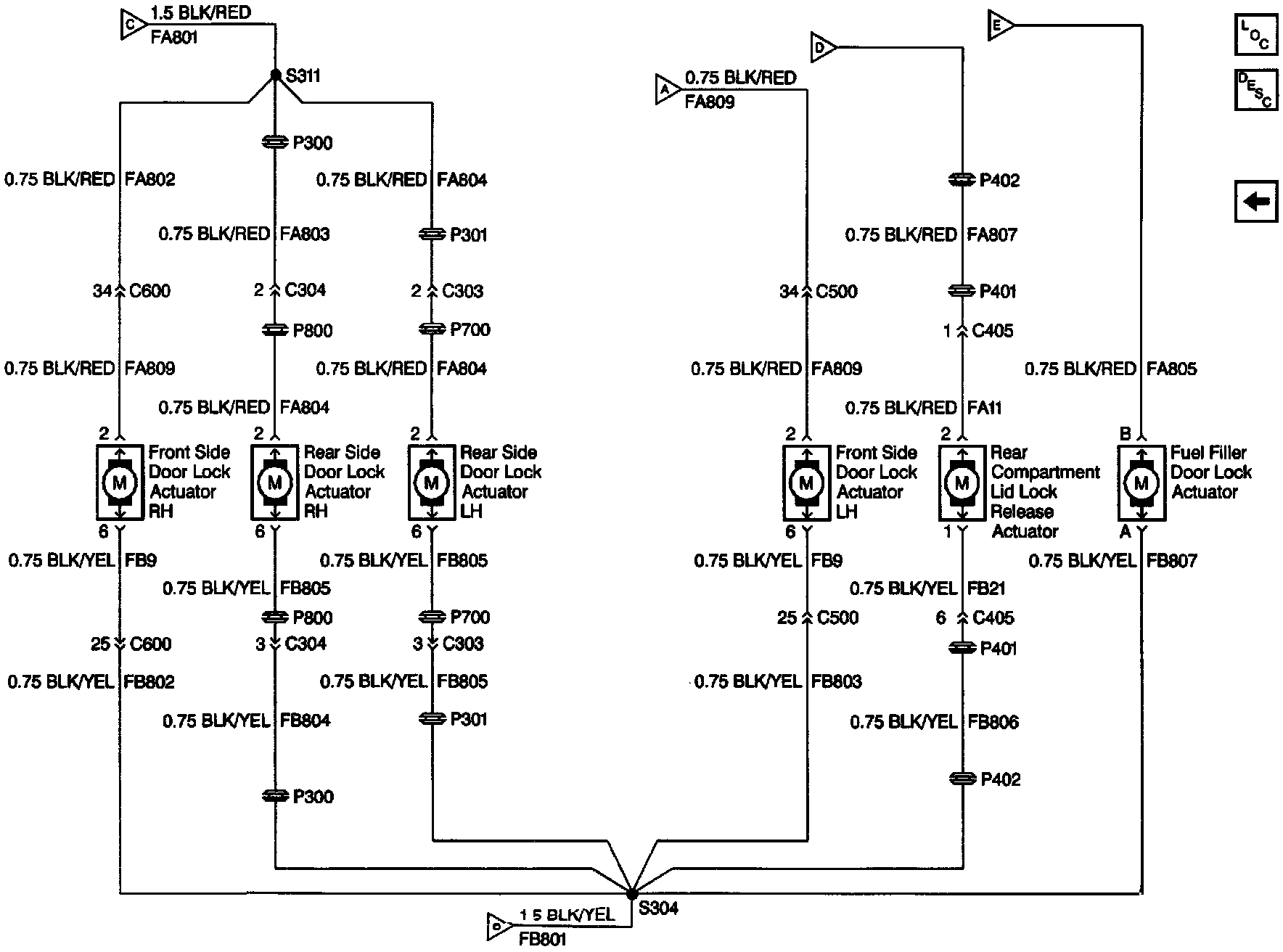

Keyless Entry Schematics: Door Lock, Trunk Lid Lock Release And Fuel Door Actuators:
