P1705

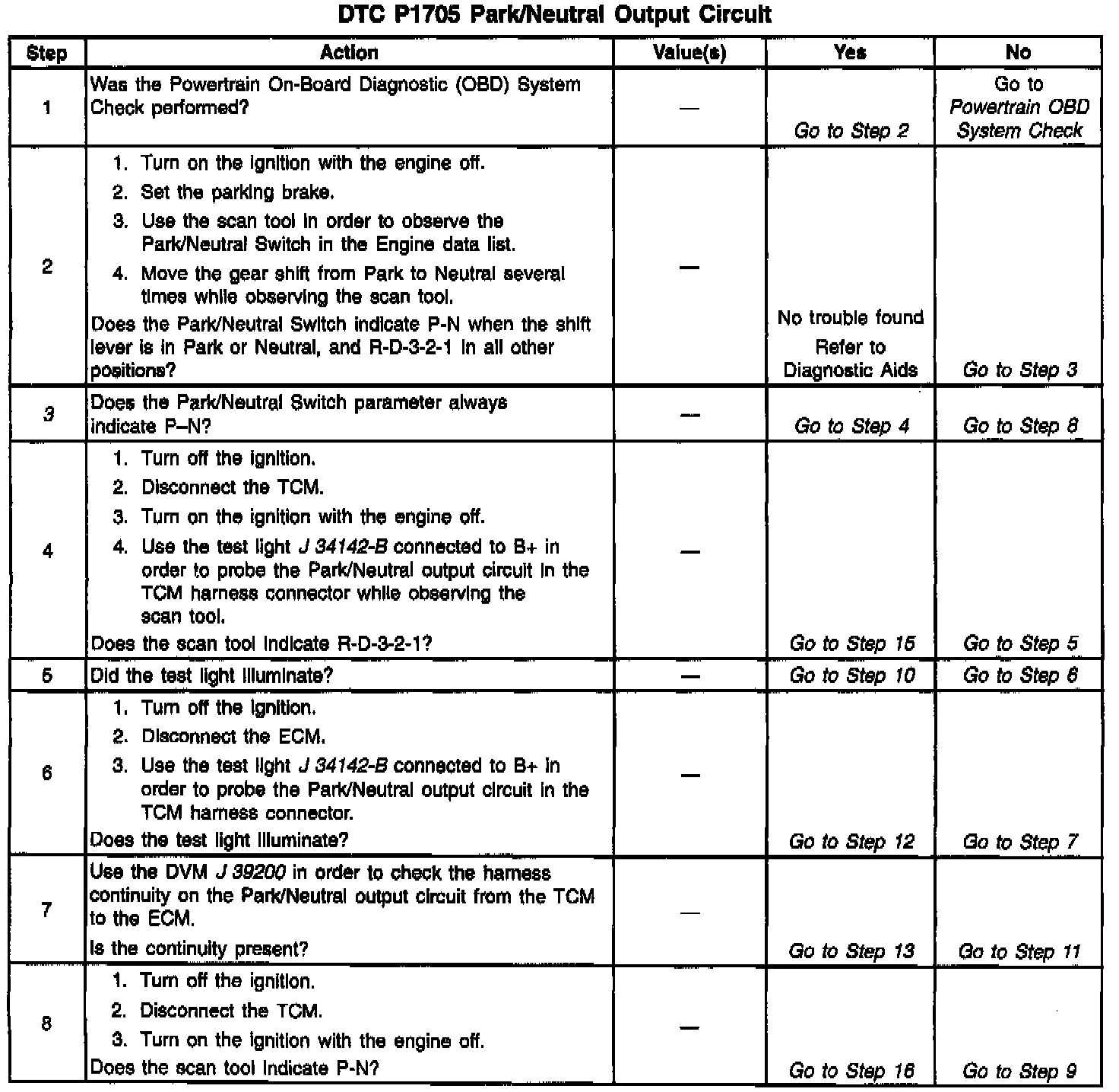

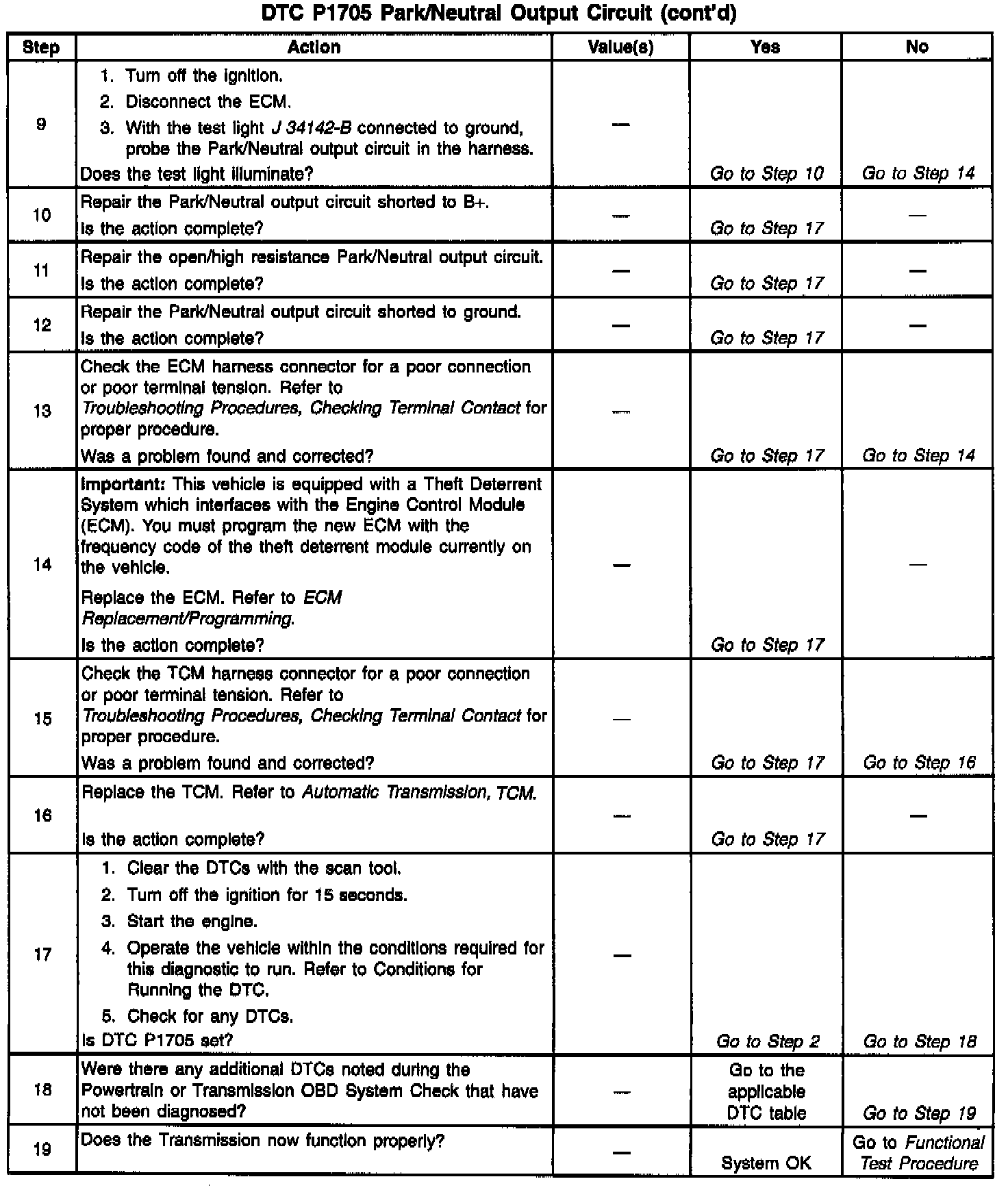

Diagnostic Chart:

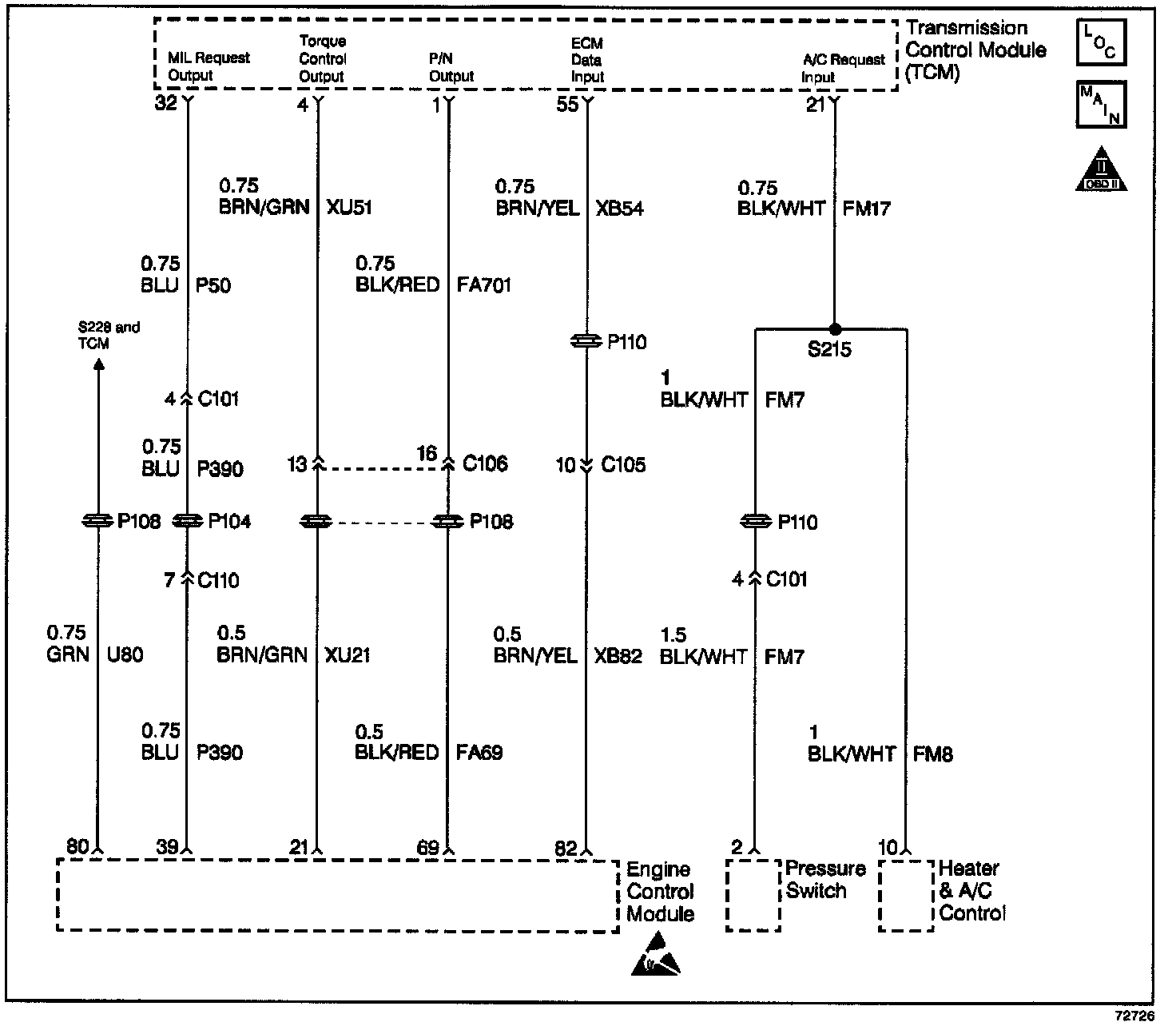

Wiring Diagram:

CIRCUIT DESCRIPTION

The Transmission Control Module (TCM) pulls this circuit up to 12 volts in gear positions R, D, 3, 2, 1. The circuit voltage is pulled low in P/N. The ECM monitors the circuit voltage. One of the ECMs uses for this signal is to compensate for in-gear engine load. If the TCM detects a problem on this circuit, this DTC will set.

CONDITIONS FOR RUNNING THE DTC

Tests continuously

CONDITIONS FOR SETTING THE DTC

The commanded state of the circuit does not match the actual state.

ACTION TAKEN WHEN THE DTC SETS

^ The Malfunction Indicator Lamp (MIL)/Service Transmission Lamp (STL) will not illuminate.

^ The TCM memory stores the DTC at the time of the first failure.

CONDITIONS FOR CLEARING THE MIL/DTC

^ A History DTC clears after forty consecutive warm-up cycles if no failures are present by this or any other non-emission related diagnostic.

^ The scan tool clears the MIL/DTC.

DIAGNOSTIC AIDS

Use the Connector Test Adapter Kit J 35616-A for any test that requires probing the TCM harness connector or a component harness connector. Using this kit will prevent damage to the harness connector terminals.

Check for the following conditions:

^ Poor connections at the TCM or at the component. Inspect the harness connectors for any backed out terminals, improper mating, broken locks, improperly formed or damaged terminals, and poor terminal to wire connection. Refer to Overall Vehicle Information / Diagrams / Diagnostic Aids for Checking Terminal Contact procedure.

^ Damaged harness. Inspect the wiring harness for damage. If the harness appears to be OK, observe the scan tool while moving any related connectors and any wiring harnesses. A change in the display may help to locate the fault.

TEST DESCRIPTION

The number(s) below refer to the step number(s) on the Diagnostic Table.

3. In the previous step, the parameter did not change during the functional test. This step determines whether the circuit has failed high or failed low.
