Instrument Panel

DTC 52 Reprogram Cluster:

CIRCUIT DESCRIPTION
The calibrations for the instrument cluster are stored in EEPROM. When the ignition is first turned ON, the instrument cluster performs internal tests on the EEPROM and can determine the integrity of the EEPROM's non - volatile memory. A DTC 52 indicates that the EEPROM is partially programmed.

TEST DESCRIPTION

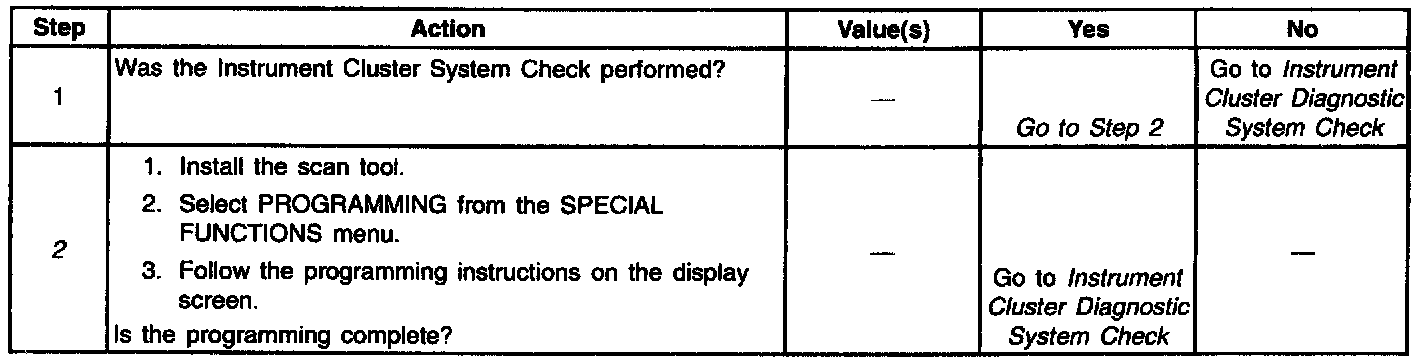

The number(s) below refer to the step number(s) on the diagnostic table.
2. This step reprograms the instrument cluster using the scan tool.
