C0550

CIRCUIT DESCRIPTION

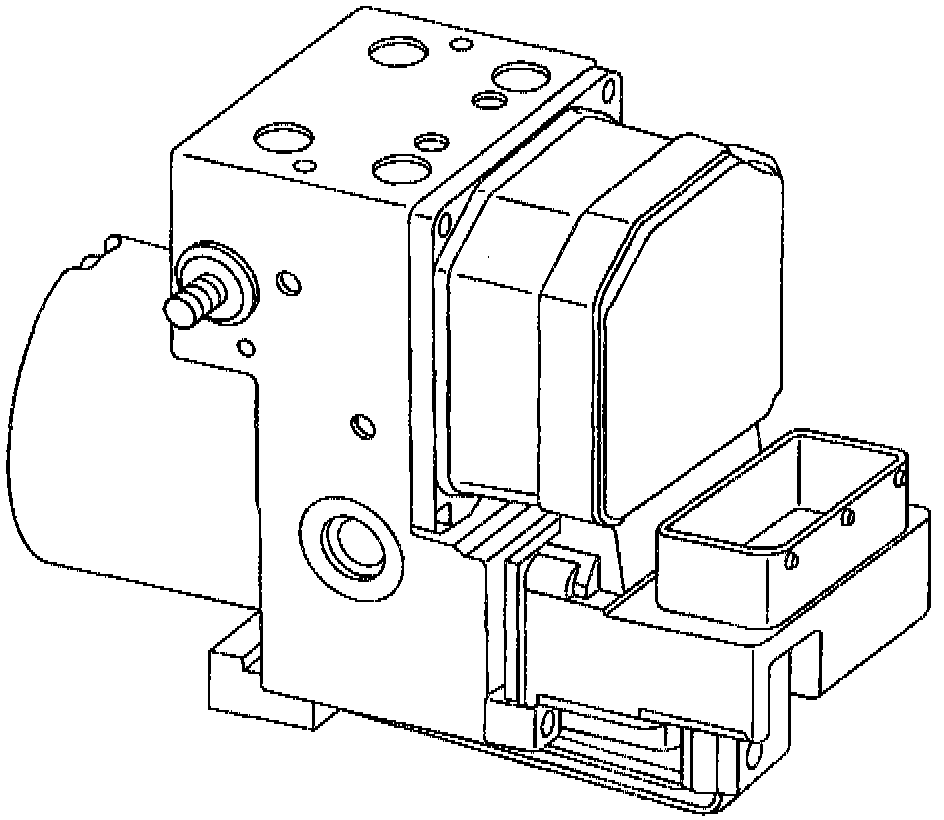

This Diagnostic Trouble Code (DTC) identifies a malfunction within the Electronic Brake and Traction Control Module (EBTCM).

CONDITIONS FOR SETTING THE DTC
DTC C0550 is set when an internal EBTCM malfunction exists.

ACTION TAKEN WHEN THE DTC SETS
A malfunction DTC is stored, ABS/TCS is disabled and the ABS and Traction Control Indicators are turned on.

CONDITIONS FOR CLEARING THE DTC
^ Condition for DTC is no longer present and scan tool clear DTC function is used.
^ 100 ignition cycles pass with no DTC(s) detected.
