C0075

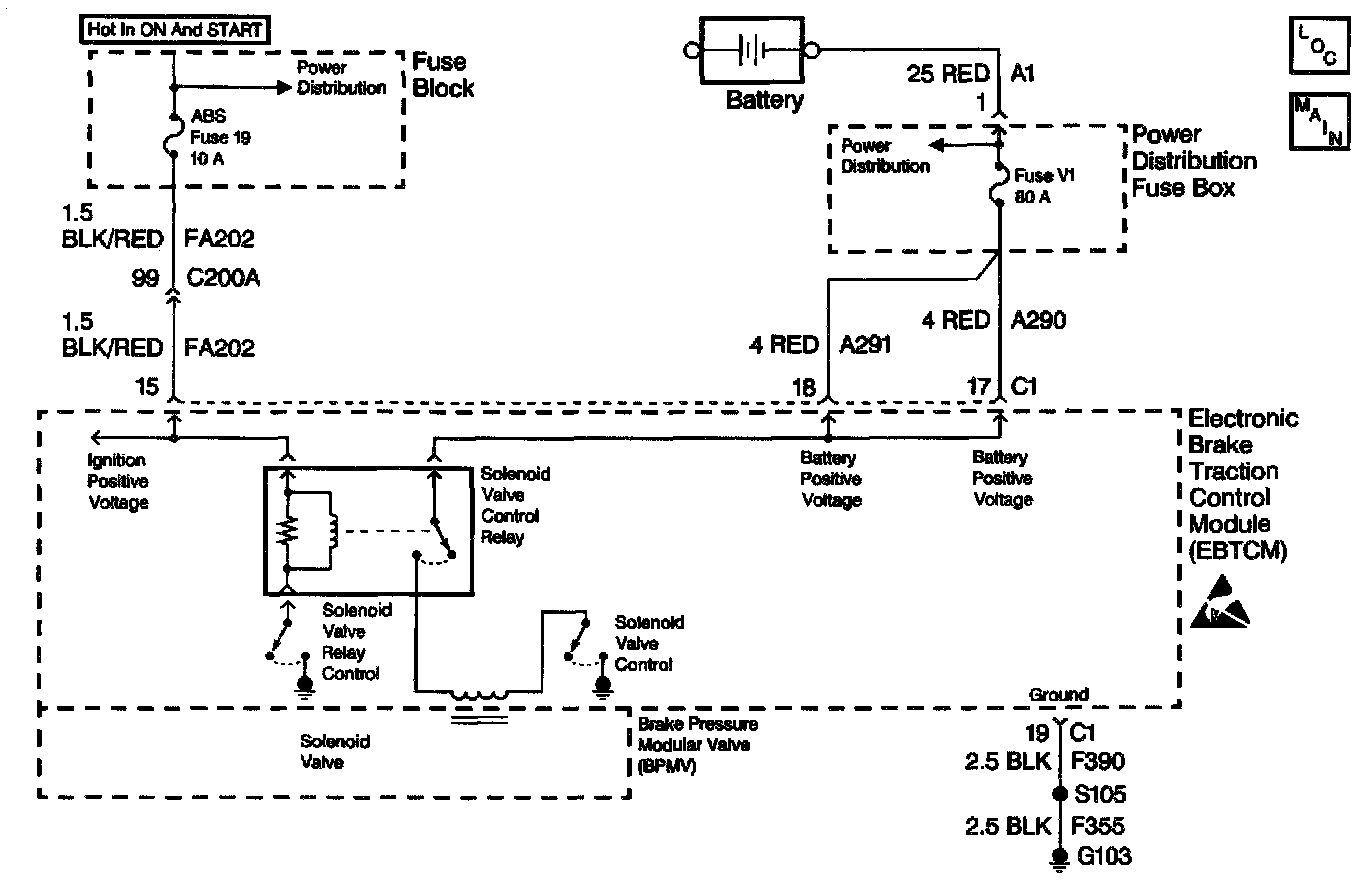

CIRCUIT DESCRIPTION
The inlet valve solenoid circuits are supplied with battery power when the ignition is in the run position. The Electronic Brake and Traction Control Module (EBTCM) controls the valve functions by grounding the circuit when necessary.

CONDITIONS FOR SETTING THE DTC
The EBTCM senses a discrepancy such as an open, short to ground, or short to voltage in the circuit.

ACTION TAKEN WHEN THE DTC SETS
^ A malfunction Diagnostic Trouble Code (DTC) is stored.
^ ABS/TCS is disabled.
^ The ABS and TC Indicators are turned on.

CONDITIONS FOR CLEARING THE DTC
^ Condition for DTC is no longer present and scan tool clear DTC function is used.
^ 100 ignition cycles pass with no DTC(s) detected.

DIAGNOSTIC AIDS
The solenoid valve circuit and the solenoid coil are internal to the EBTCM. No part of the solenoid circuit is diagnosable external to the EBTCM. The DTC sets when there is a malfunction in the solenoid circuit internal to the EBTCM only.

TEST DESCRIPTION
The numbers below refer to step numbers on the Diagnostic Table.
2. This step determines if the DTC is current
