CIRCUIT DESCRIPTION
The speed sensor used on this vehicle is a single point magnetic pickup. This sensor produces an AC signal that the Electronic Brake and Traction Control Module (EBTCM) uses the frequency from to calculate the wheel speed.

CONDITIONS FOR SETTING THE DTC
The Diagnostic Trouble Code (DTC) can be set any time the ignition is in the RUN position and the EBTCM detects an open or a short to voltage.

ACTION TAKEN WHEN THE DTC SETS
^ A malfunction DTC stores.
^ The ABS/TCS disables.
^ The amber ABS/TC indicator(s) turn on.

CONDITIONS FOR CLEARING THE DTC
^ The condition responsible for setting the DTC no longer exists and the scan tool Clear DTCs function is used.
^ 100 ignition cycles pass with no DTC(s) detected.

DIAGNOSTIC AIDS
^ It is very important that a thorough inspection of the wiring and connectors be performed. Failure to carefully and fully inspect wiring and connectors may result in misdiagnosis, causing part replacement with reappearance of the malfunction.

^ Thoroughly inspect any circuitry that may be causing the complaint for the following conditions:
- Backed out terminals
- Improper mating
- Broken locks
- Improperly formed or damaged terminals
- Poor terminal-to-wiring connections
- Physical damage to the wiring harness

^ The following conditions may cause an intermittent malfunction:
- A poor connection
- Rubbed-through wire insulation
- A broken wire inside the insulation

^ If the customer's comments reflect that the amber ABS/TCS indicator is on only during moist environmental conditions (rain, snow, vehicle wash), inspect all the wheel speed sensor circuitry for signs of water intrusion. If the DTC is not current, clear all DTCs and simulate the effects of water intrusion by using the following procedure:
1. Spray the suspected area with a five percent saltwater solution.
Add two teaspoons of salt to twelve ounces of water to make a five percent saltwater solution.

2. Test drive the vehicle over various road surfaces (bumps, turns, etc..) above 40 km/h (25 mph) for at least 30 seconds.
3. If the DTC returns, replace the suspected harness.

^ If an intermittent malfunction exists refer to "General Electrical Diagnostic Procedures" in Diagrams for further diagnosis.

TEST DESCRIPTION

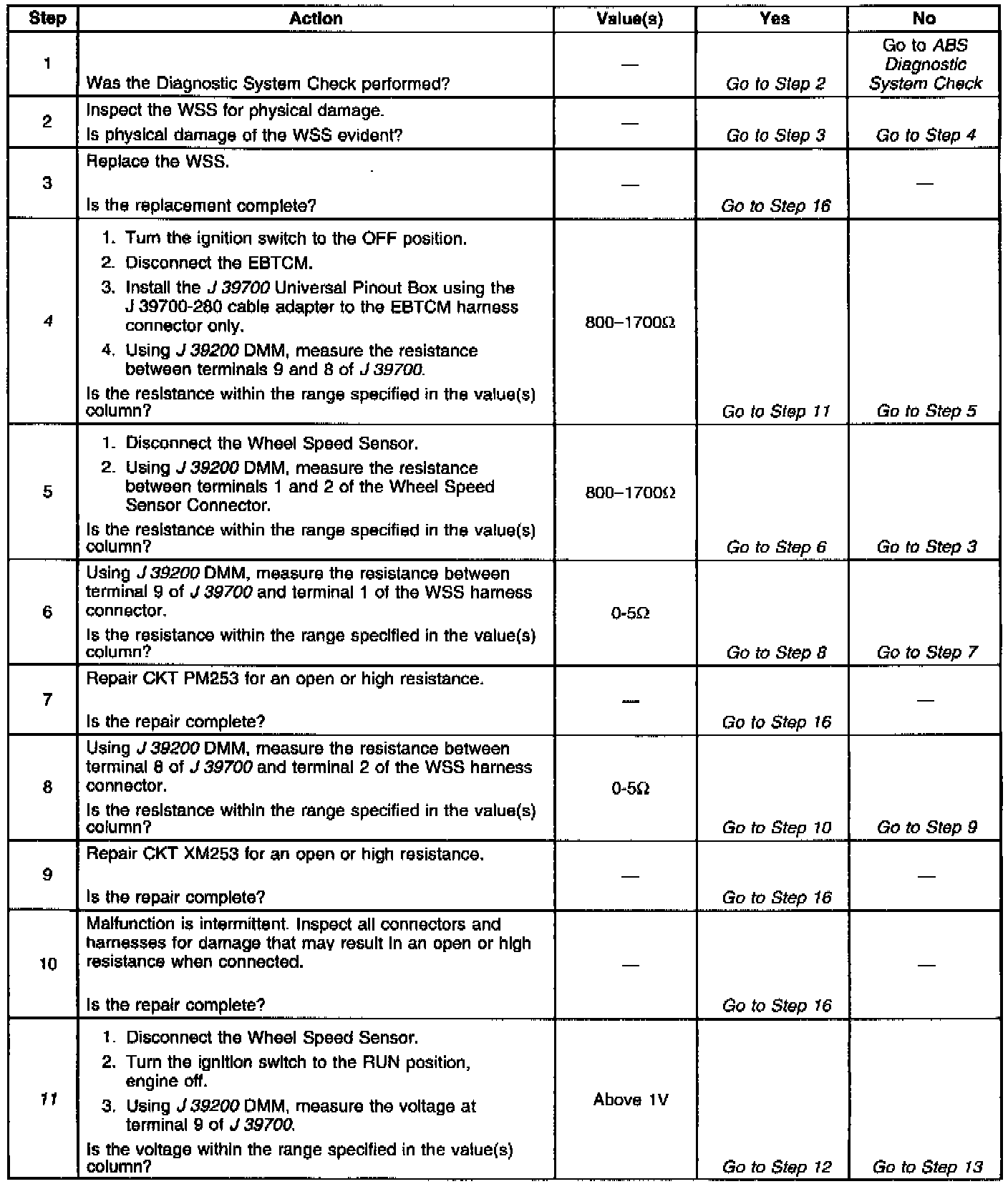

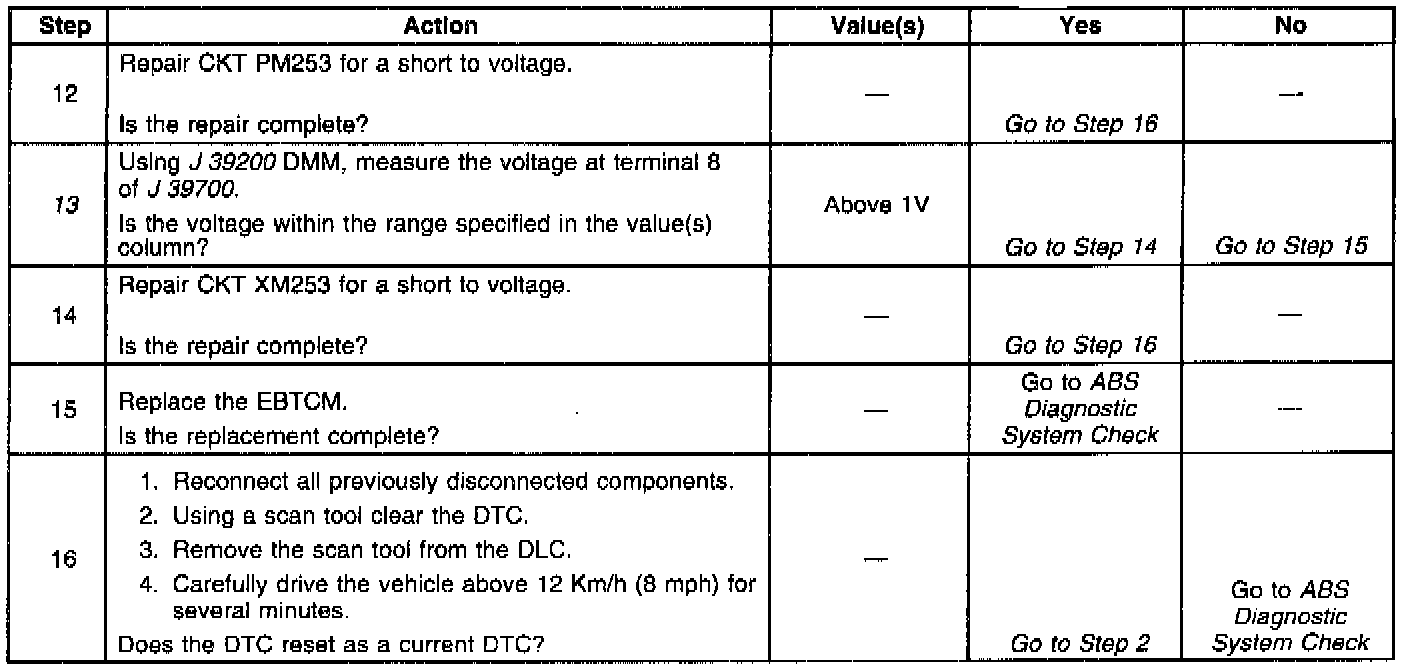

The numbers below refer to step numbers on the diagnostic table.
4. This step checks for an open in the Wheel Speed Sensor (WSS) or WSS CKT.
11. Checks for a short to voltage in the WSS CKT.
13. Checks for a short to voltage in the WSS CKT.
