B1552

DTC B1552 Loss Of Keep Alive Memory:

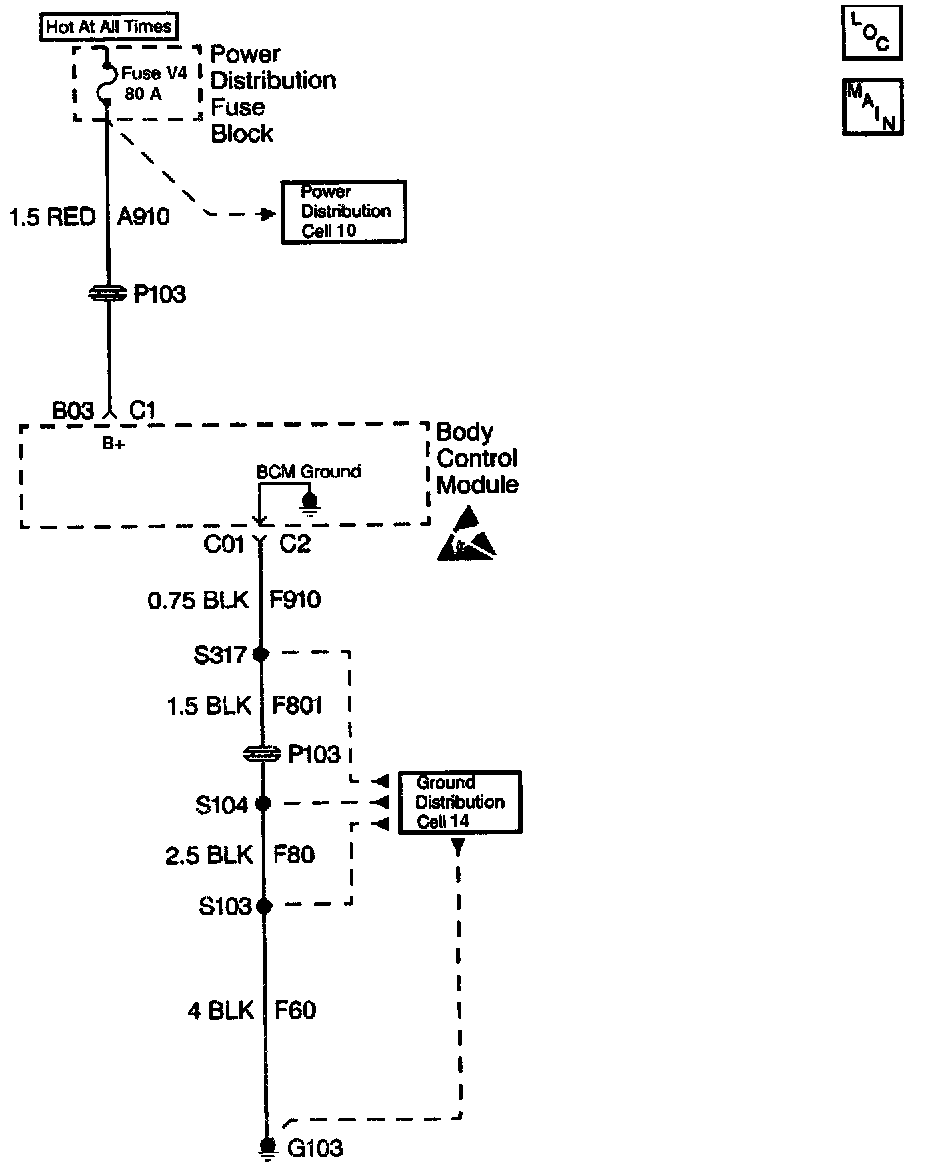

CIRCUIT DESCRIPTION
A DTC B1552 indicates that the keep alive or the long term memory in the Body Control Module (BCM) is reset. It is a normal occurrence whenever the power or the ground is removed from the BCM. For example: anytime the battery is disconnected and reconnected.

CONDITIONS FOR SETTING THE DTC
The following cause DTC B1552 to set:
^ A loss of battery input to the BCM.
^ A loss of ground to the BCM.

ACTION TAKEN WHEN THE DTC SETS
The BCM memory resets Keep Alive Memory (KAM) to initial default values.

CONDITIONS FOR CLEARING THE DTC
^ The conditions for the fault are no longer present.
^ The use of the scan tool.
^ A history DTC will clear after 50 consecutive ignition cycles if the condition for the fault is no longer present.

DIAGNOSTIC AIDS
Check the following if DTC B1552 sets without a battery disconnect:
^ Battery condition
^ Good terminal contact at B3
^ Good terminal contact at C1
^ A good clean and tight connection at G103.
