Without Rainsense

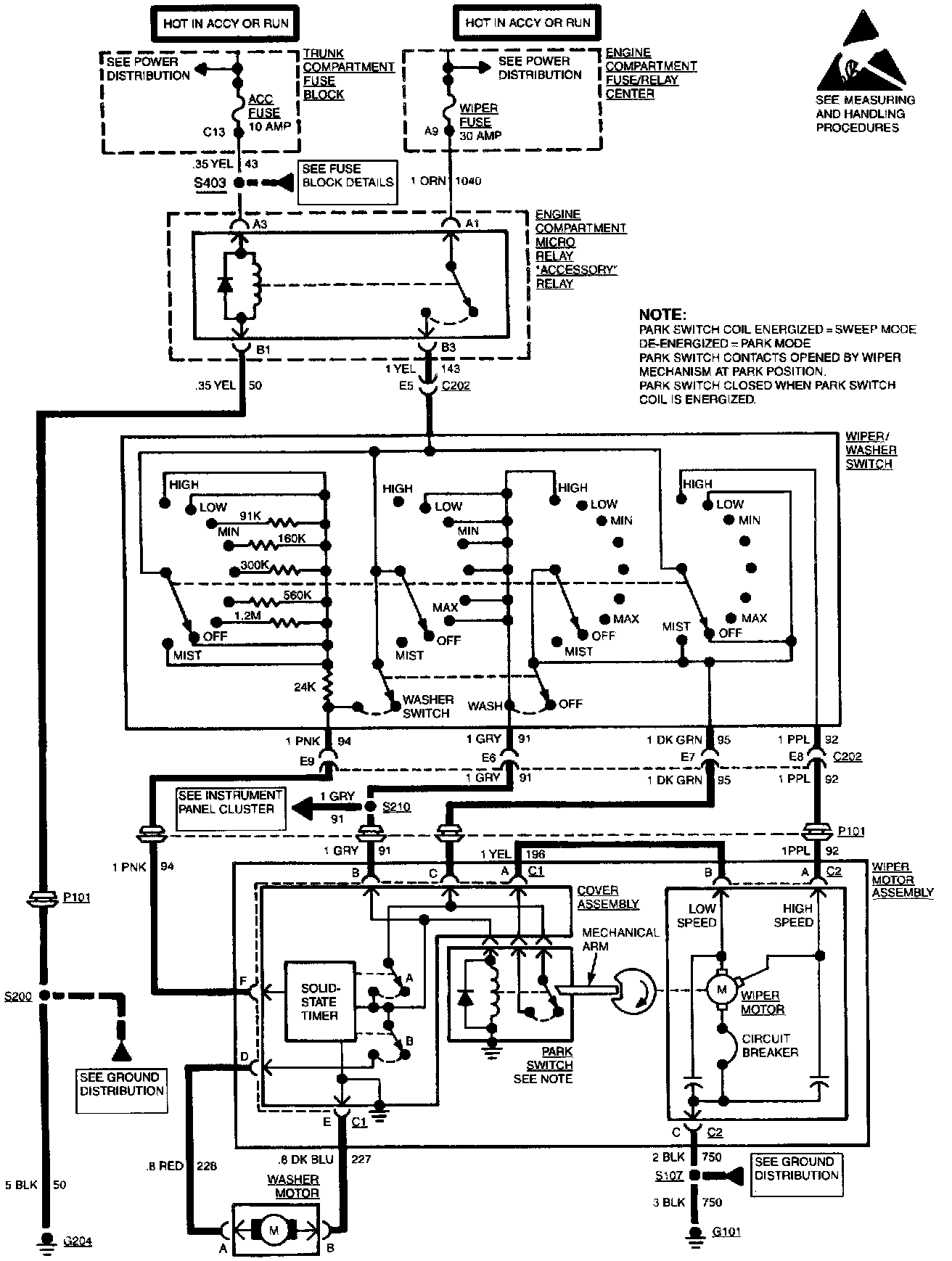

Pulse Wiper/Washer System Electrical Schematic:

^ Make the following checks before beginning System Diagnosis.
1. Check wiper fuses C13 and A9 by visual inspection.
2. Check that all system electrical connectors are mated correctly.
3. Check terminal contact at connector C202, row "E."
4. If wipers cycle in and out of park position in "HI" and do not operate in 'to: "MIST," or "DELAY," check circuit 196 for an open.
5. If wipers work in "LO" but not in "MIST," replace wiper/washer switch assembly.
6. If wiper motor assembly but wiper blades do not, check wiper transmissions wiper motor crank arm.
7. If washer does not operate, check that:
- Washer solvent container is filled.
- Hoses are not pinched or kinked.
- Hoses are correctly attached.
- Nozzles are not clogged.
^ Refer to System Diagnosis.
