A/T - Buzz or Moan at About 28-34 MPH With TCC Applied

File In Section: 7 - Transmission

Bulletin No.: 67-71-56

Date: February, 1997

Subject:
Buzz or Moan Noise During TCC Apply
(Replace Spacer Plate and Upper Control Valve Body)

Models:
1996 Cadillac Eldorado, Seville, DeVille, Deville Concours

1997 Cadillac Eldorado, Seville, DeVille, DeVille Concours, DeVille d'Elegance 1997 Oldsmobile Aurora with 4.0L and 4.6L Engines (VINs C, Y, 9 - RPOs L47, LD8, L37) and HYDRA-MATIC 4T80-E Transaxle (RPO MH1)

Transaxle Models:
6AAN, 6AJN, 6MLN, 7AAN, 7AJN, 7MLN, 7MSN

Condition

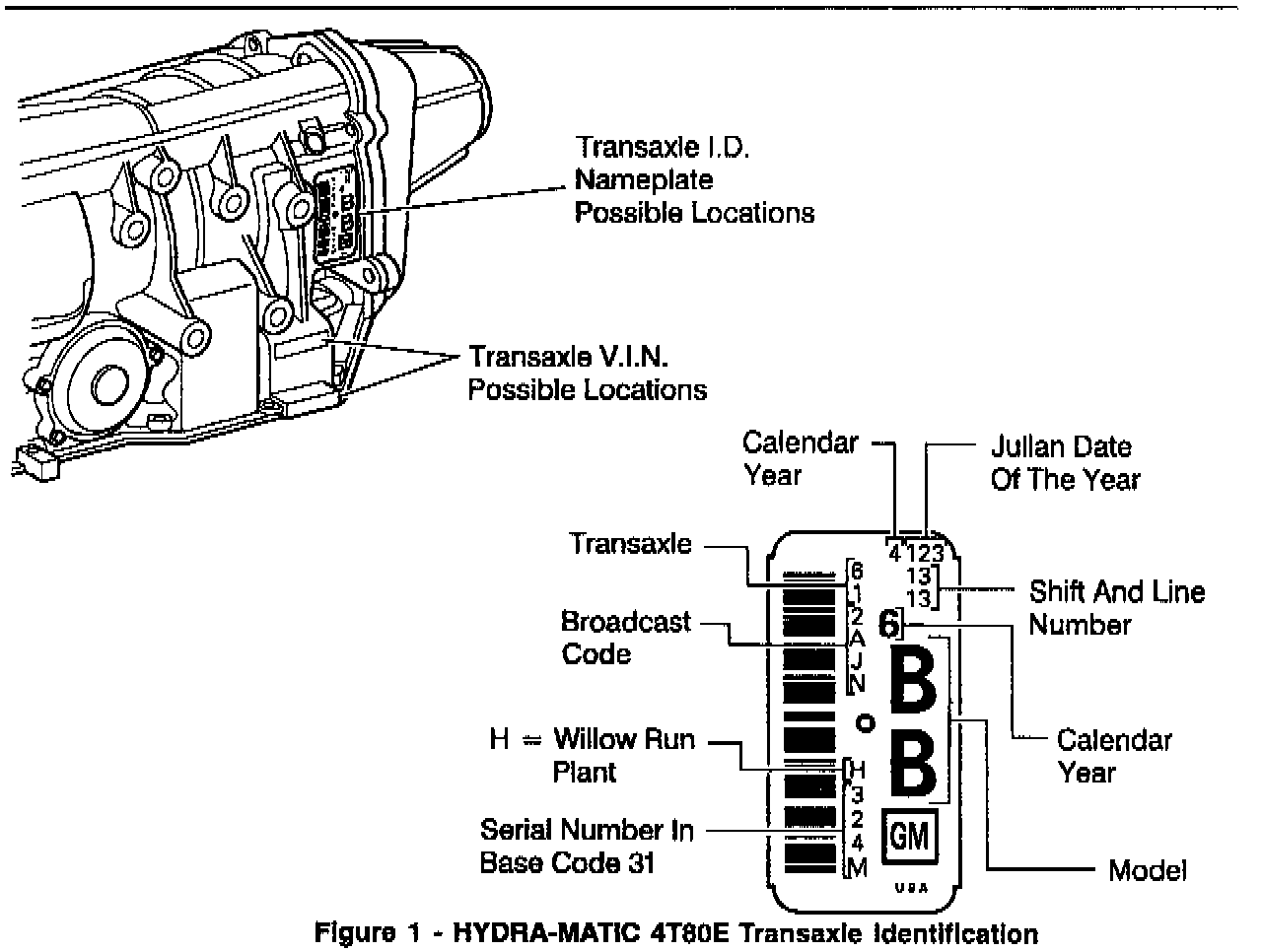

(Figure 1)

Some owners of the above models may experience a buzz or moan noise when the TCC is applied. This noise will occur at or near minimum throttle speeds, at about 28-34 miles per hour, and will last only about one second. The condition is an audible sound only, which some owners may find objectionable. It in no way affects the driveability, operation or durability of the vehicle.

Cause

This condition may be due to both the TCC control valve and enable valve lineups, within the upper control valve body, oscillating during TCC apply.

Correction

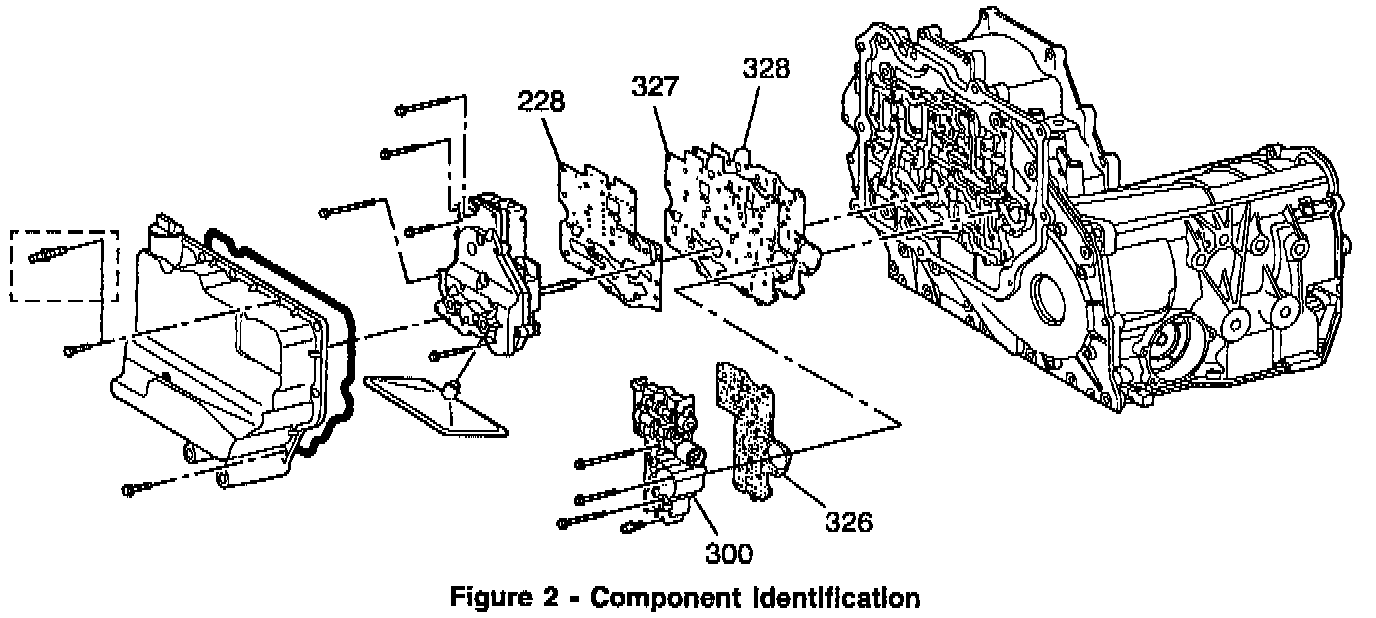

(Figure 2)

To repair this condition, the case cover assembly spacer plate (327) and the upper control valve body (300), which have been revised, must be replaced together. Follow the steps listed under "Service Information."

Service Information

Road test the vehicle. Verify that the vehicle has a buzz or moan noise during TCC apply as listed under "Condition."

Replace the original case cover assembly spacer plate and the upper control valve body with those that are supplied in service kit (P/N 24209915). Refer to the Unit Repair Section of the Service Manual for the proper procedure.

Parts Information

Part Number Description
24209915 Upper Control Valve Body
Remanufactured Kit

Repair kit contains the secondary pump body to spacer plate gasket (228), a spacer plate to case cover gasket (328), a valve body to spacer plate gasket (326), a revised case cover assembly spacer plate (327), and a revised upper control valve body (300).

Parts are currently available from GMSPO.

Warranty Information

For vehicles repaired under warranty, use:

Labor
Labor Operation Description Time
K7248 Valve assembly, upper 8.2 hrs.
control - R & R or replace
