Case Cover Passages (SEC Pump Body and Upper Valve Body Side)
Case Cover Passages (SEC Pump Body and Upper Valve Body Side)

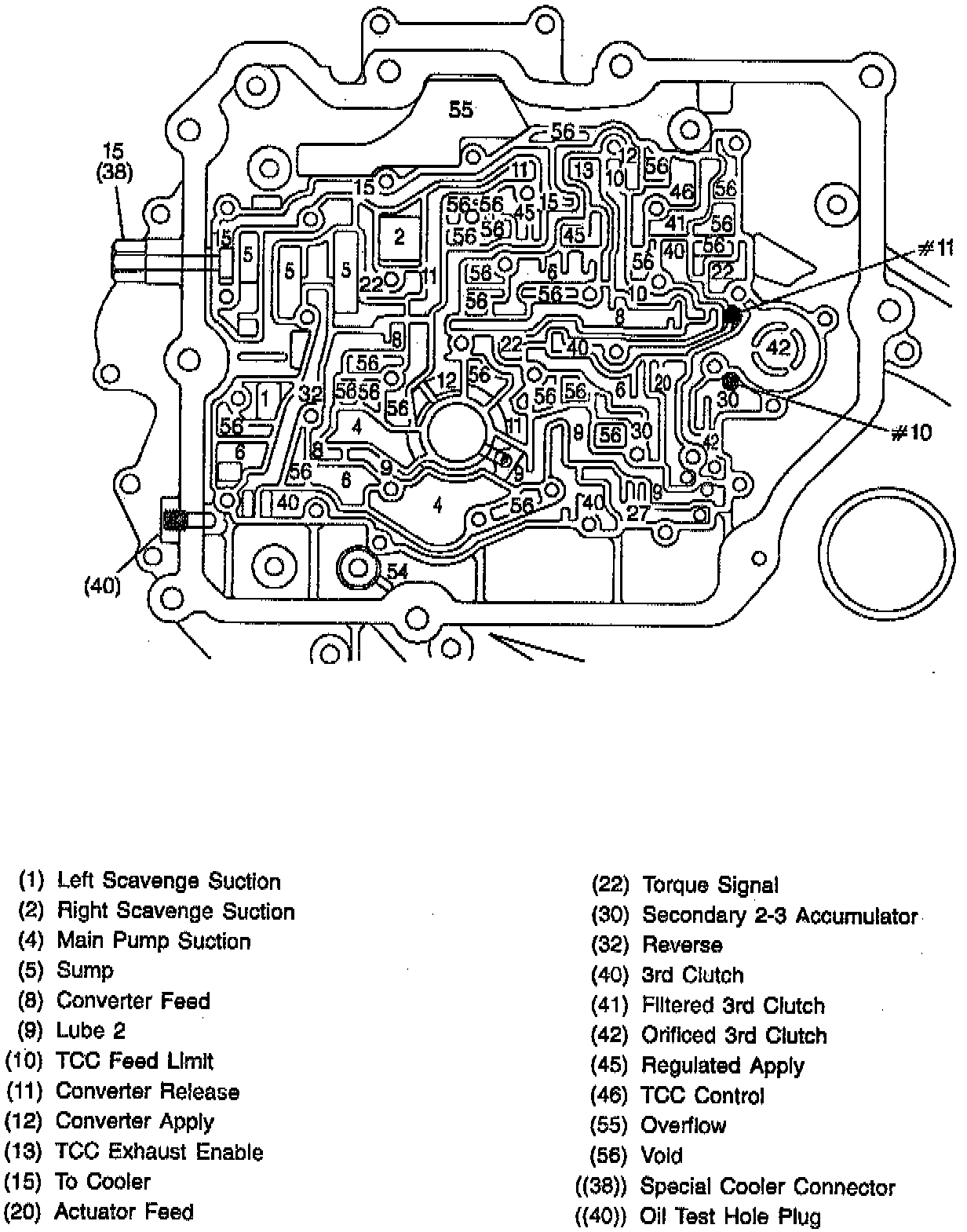

Case Cover Fluid Passages (Secondary Pump Body and Upper Valve Body Side):
