Installation Procedure

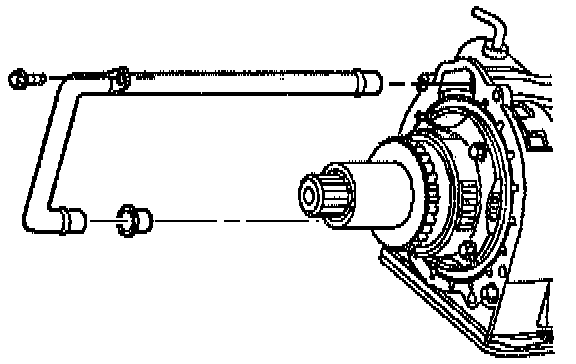

1. Install the scavenger tube seal into the case.
2. Install the scavenger tube into the case. Tap the scavenger tube in lightly using a plastic hammer. The rib on the pipe will remain exposed. This is a normal condition.
3. Install the scavenger tube bolt.
- Tighten the bolt to 13 Nm (116 inch lbs.).

NOTICE: Always use the correct fastener in the correct location. When you replace a fastener, use ONLY the exact part number for that application. The manufacturer will call out those fasteners that require a replacement after removal. The manufacturer will also call out the fasteners that require thread lockers or thread sealant. UNLESS OTHERWISE SPECIFIED, do not use supplemental coatings (paints, greases, or other corrosion inhibitors) on threaded fasteners or fastener joint interfaces. Generally, such coatings adversely affect the fastener tightening sequence and specifications. Following these instructions can help you avoid damage to parts and systems.

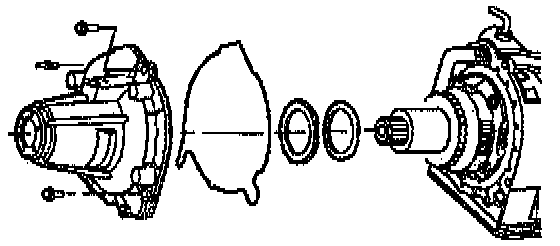

4. Install the selective washer and the thrust roller bearing onto the differential output shaft.
5. Insert the case extension seal into the case extension.
6. Install the case extension onto the case.
7. Install the bolts and the stud. Install the stud in the 11 O' clock position using the star pattern.
- Tighten the bolts and the stud to 54 Nm (40 ft. lbs.).
8. Install the vehicle speed sensor (VSS) electrical connector and the ground wire to the case.
9. Install the right transmission to engine bracket and the heat shield.
10. Install the right transmission mount and the bolts.
11. Install the power steering pressure switch connector and the wiring harness.
12. Remove the J 28467-360.
13. Install both drive axles into the transmission.
14. Install the RTD sensor to the lower control arm.
15. Install the right front wheel splash shield.
16. Install the right front wheel and tire.
17. Remove the safety stands.
18. Lower the vehicle.

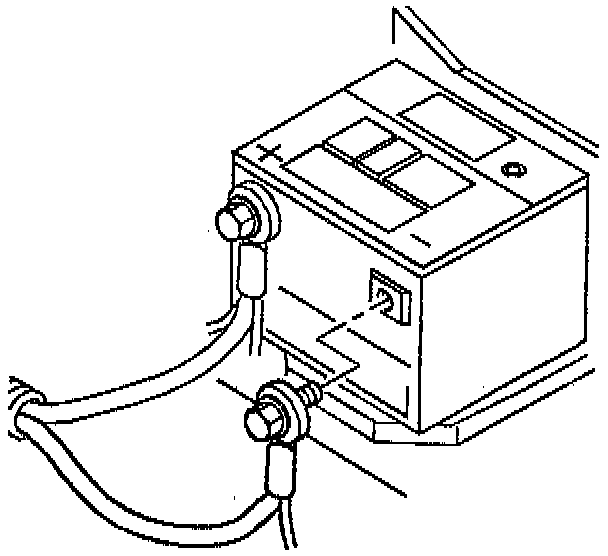

19. Connect the battery negative cable assembly to the battery negative terminal.
- Tighten the terminal bolt to 15 Nm (11 ft. lbs.).
20. Add DEXRON-III transmission fluid as required. Refer to FLUID FILTER REPLACEMENT AND TO FLUID CAPACITY.
