Home >> Cadillac >> 1997 >> DeVille Concours V8-4.6L VIN 9 >> Repair and Diagnosis >> Steering and Suspension >> Suspension >> Suspension Control ( Automatic - Electronic ) >> Testing and Inspection >> Component Tests and General Diagnostics >> Electronic Level Control (ELC) >> W/ Electronic Suspension Control (Cvrss Rss CCR SSS Sdd) >> Rear of Vehicle Low

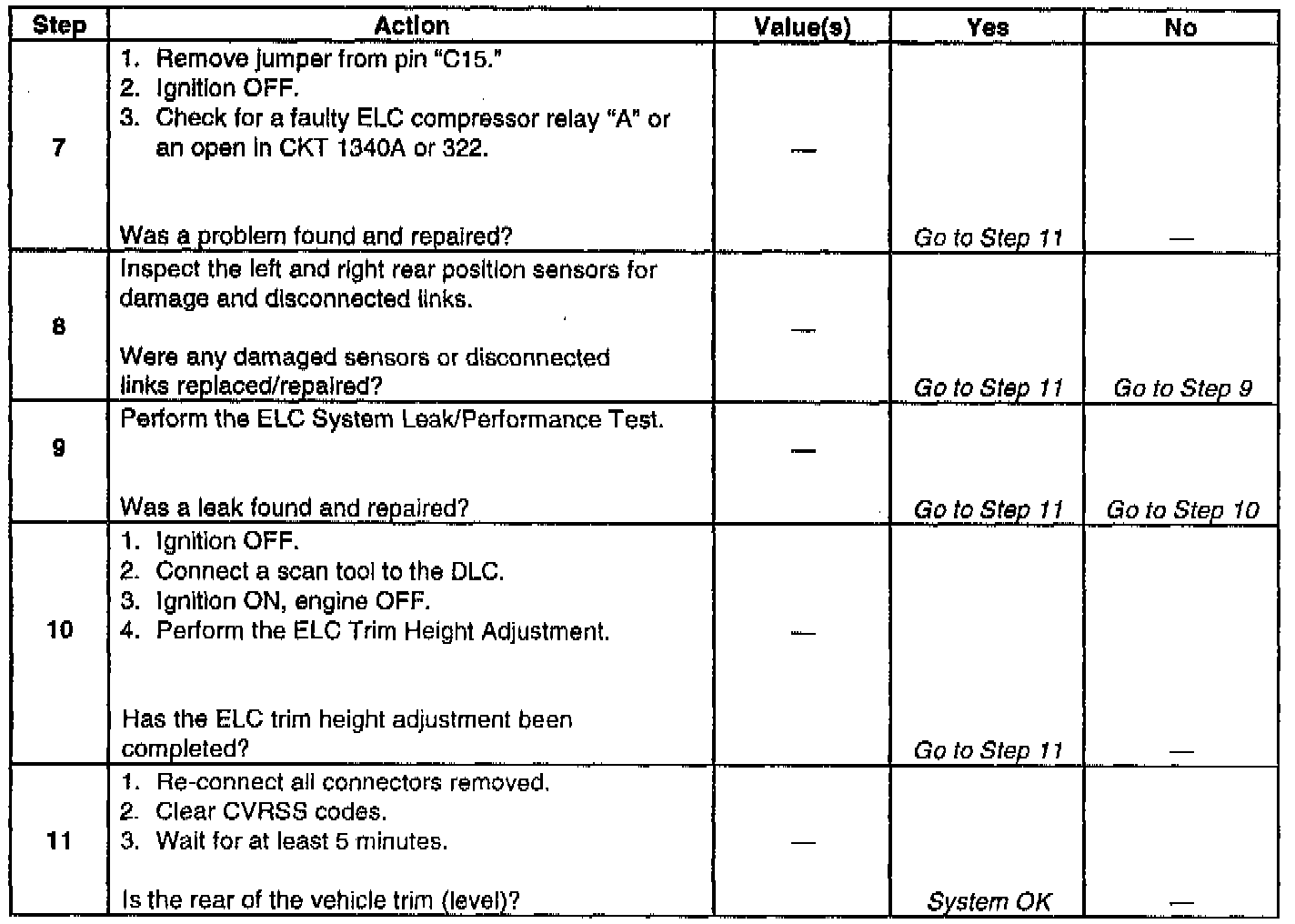

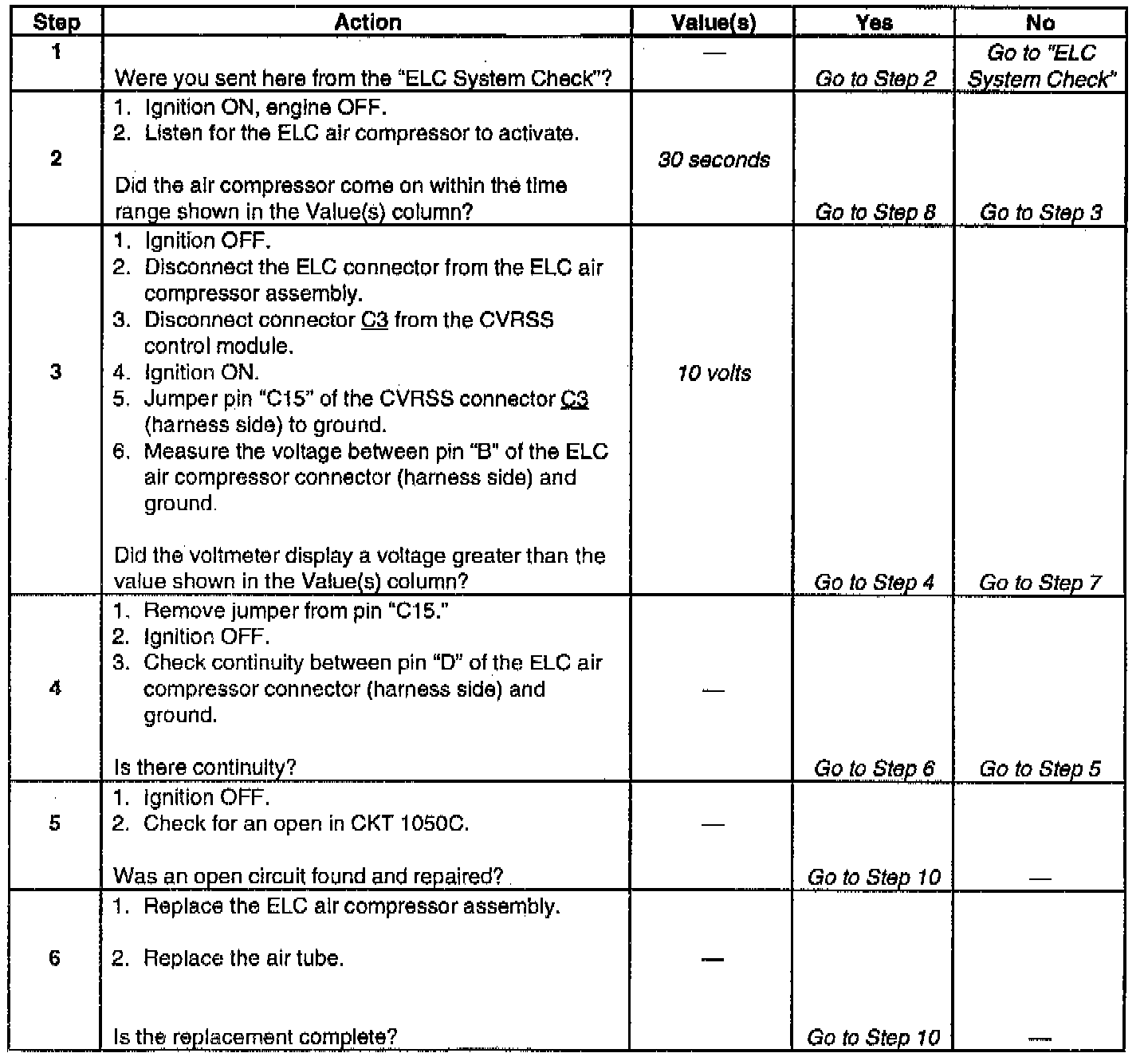

Rear of Vehicle Low










^ Tool Required:
- J 22124-B Pressure Gage
- Or Equivalent


Important: Diagnose Continuously Variable Road Sensing Suspension (CVRSS) codes first.
