Height Sensor and Ball Stud Replacement

For Vehicles W/O Electronically Controlled Suspension








REMOVE OR DISCONNECT
1. Raise vehicle.
2. Height sensor connector from vehicle harness connector.

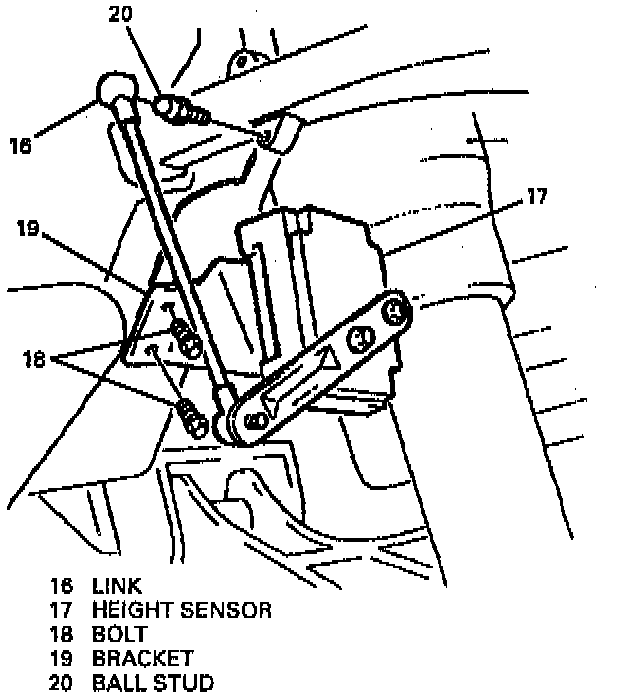

3. Link (16) from height sensor (17) actuating arm.
4. Two bolts (18) and height sensor (17) with bracket (19) from vehicle.
5. Four nuts and bracket (19) from height sensor (17).
6. Link (16) from ball stud (20).
7. Ball stud (20) from vehicle.

INSTALL OR CONNECT

NOTICE: Always use the correct fastener in the correct location. When you replace a fastener, use ONLY the exact part number for that application. The manufacturer will call out those fasteners that require a replacement after removal. The manufacturer will also call out the fasteners that require thread lockers or thread sealant. UNLESS OTHERWISE SPECIFIED, do not use supplemental coatings (paints, greases, or other corrosion inhibitors) on threaded fasteners or fastener joint interfaces. Generally, such coatings adversely affect the fastener torque and the joint clamping force, and may damage the fastener. When you install fasteners, use the correct tightening sequence and specifications. Following these instructions can help you avoid damage to parts and systems.

1. Ball stud (20) on vehicle.
^ Tighten ball stud to 6 Nm (54 inch lbs.).
2. Link (16) to ball stud (20).
3. Bracket (19) on height sensor (17) with four nuts.
^ Tighten four nuts to 2 to 5 Nm (18 to 45 inch lbs.).
4. Height sensor (17) with bracket (19) on vehicle with two bolts (18).
^ Tighten two bolts to 6 Nm (54 inch lbs.).
5. Link (16) to height sensor (17) actuating arm.
6. Height sensor connector to vehicle harness connector.
7. Lower vehicle.
^ Adjust Height Sensor.
