Remove or Disconnect

REMOVE OR DISCONNECT








NOTICE: Place ignition to "LOCK" position to prevent uncentering coil assembly (3).

1. Disable the SIR system.
2. Negative (-) battery cable.

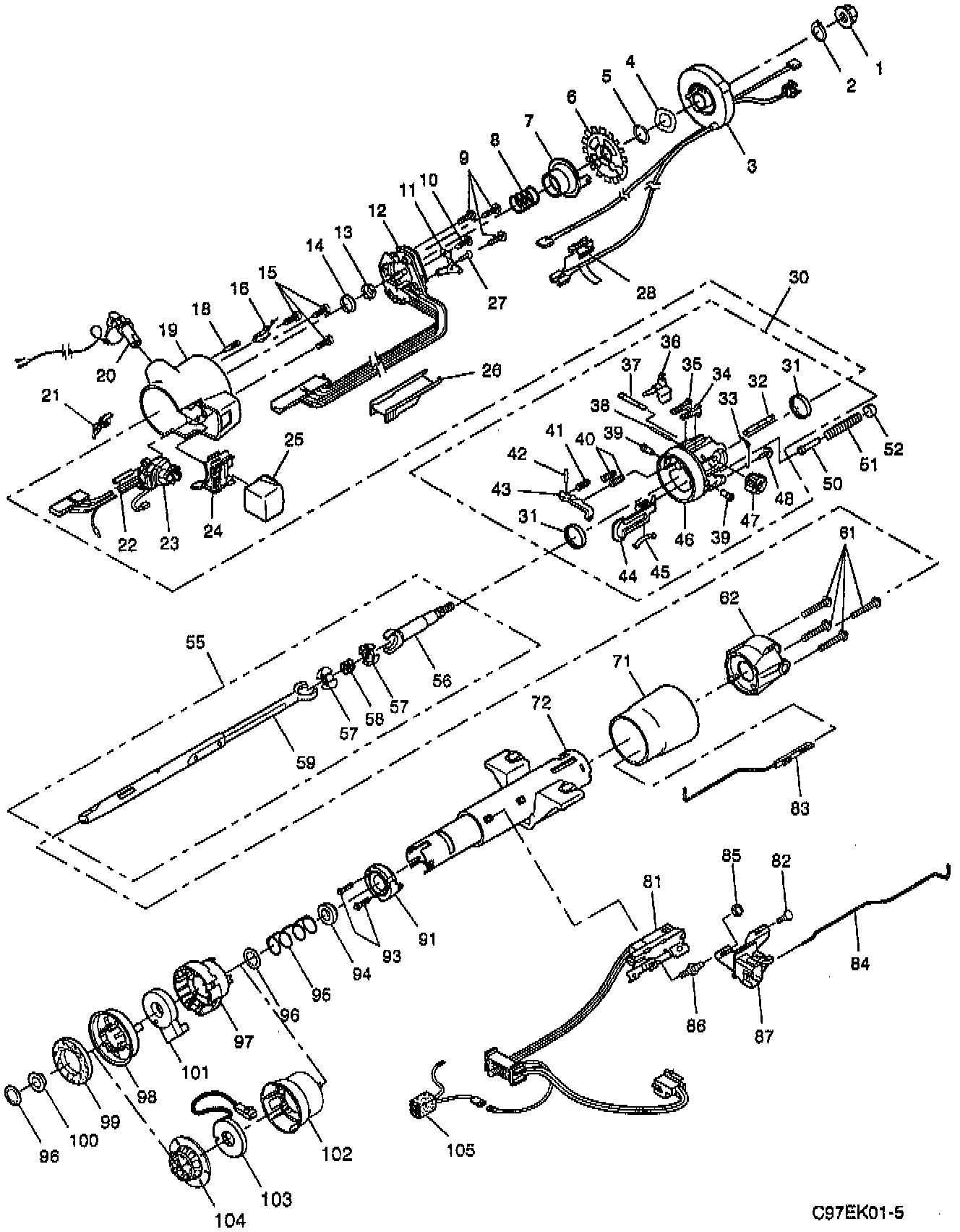

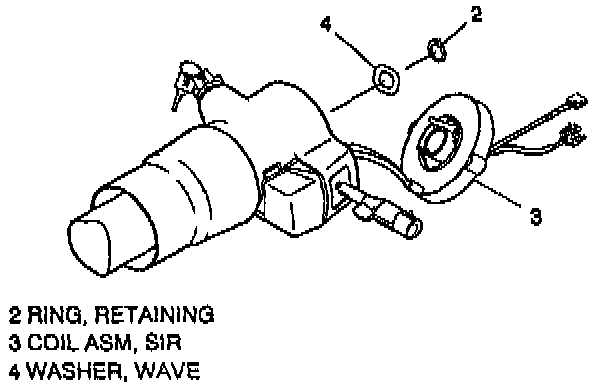

3. Coil assembly retaining ring (2).
4. SIR coil assembly (3).
^ Let switch hang freely if removal is not needed.
^ To remove coil (3), do steps 5 through 17 in this section.
5. Wave washer (4).





6. Shaft lock retaining ring (5) using J 23653-SIR to push down shaft lock (6).
^ Dispose of ring (5).





7. Shaft lock (6).

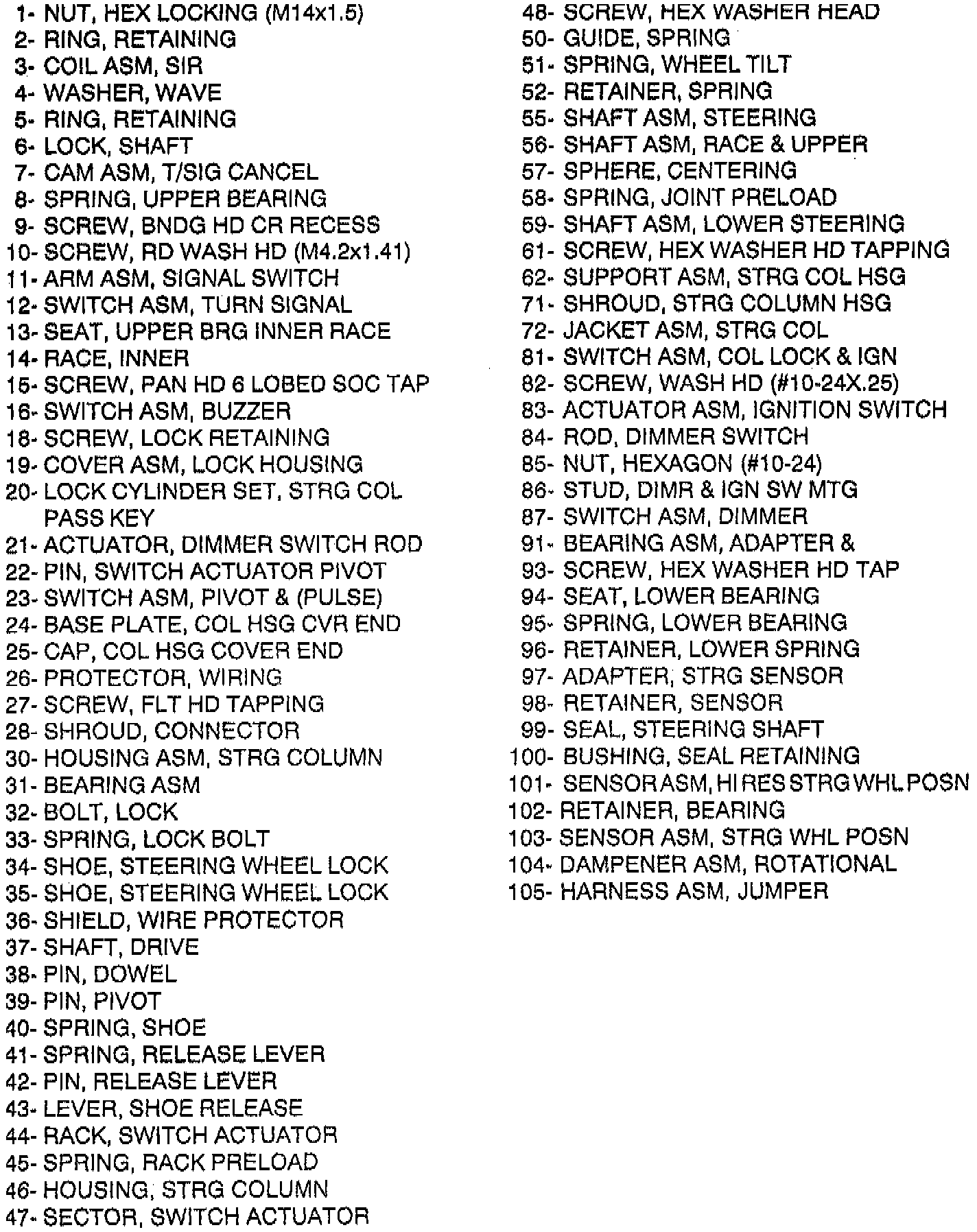

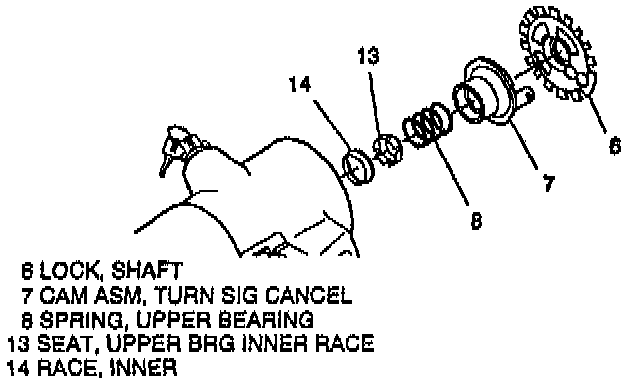

8. Turn signal cancelling cam assembly (7).
9. Upper bearing spring (8).
10. Upper bearing inner race seat (13).
11. Inner race (14).
12. Turn signal to "RIGHT TURN" position (up).
13. Multi-function lever and hazard knob assembly.

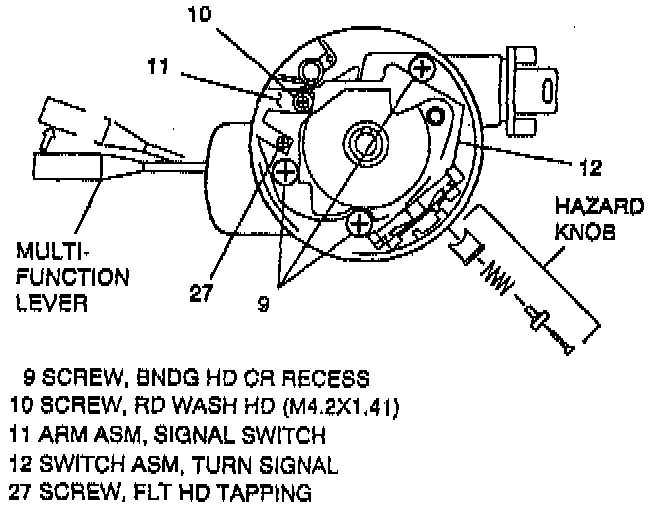

14. Washer head screw (10), and flat head screw (27) with signal switch arm (11).
15. Turn signal switch binding head screws (9).
16. Turn signal switch assembly (12).
^ Let switch hang freely if removal is not needed.
^ To remove switch (12):

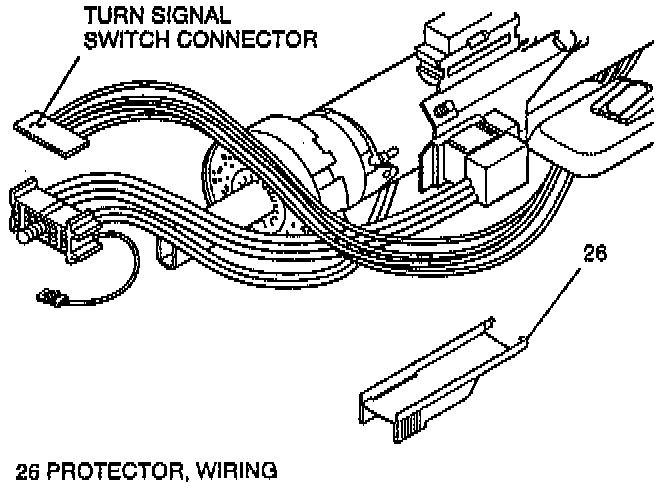

A. Turn signal switch connector from bulkhead connector.





B. Wiring protector (26).
C. Gently pull wire harness through column.

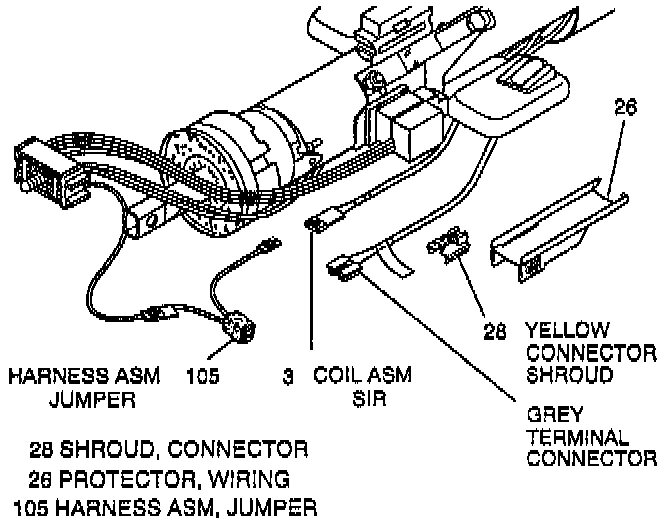

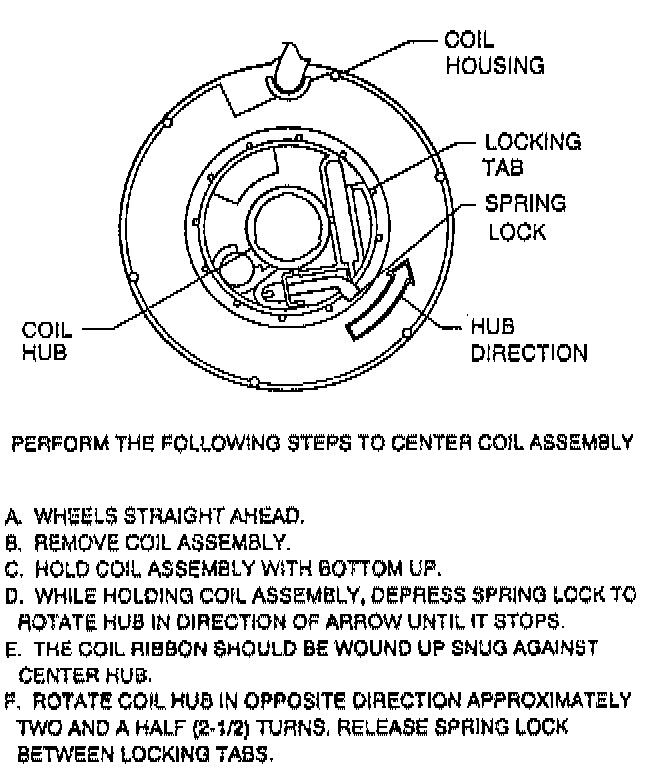

NOTICE: Coil assembly (3) will become uncentered if:
1) Steering column is separated from steering gear and is allowed to rotate, or





2) Centering spring is pushed down, letting hub rotate while coil (3) is removed from steering column.





17. SIR coil assembly (3) with wire harness from column assembly.
A. Wiring protector (26).
B. Attach a length of mechanics wire to coil terminal connector to aid in reassembly.
C. Gently pull wire through column.





18. Key from pass key lock cylinder set (20).
19. Buzzer switch assembly (16).
20. Reinsert key in pass key lock cylinder (20).
^ Key in "LOCK" position.
21. Lock retaining screw (18).
22. Pass key lock cylinder (20) and harness.
^ To remove lock cylinder (20):

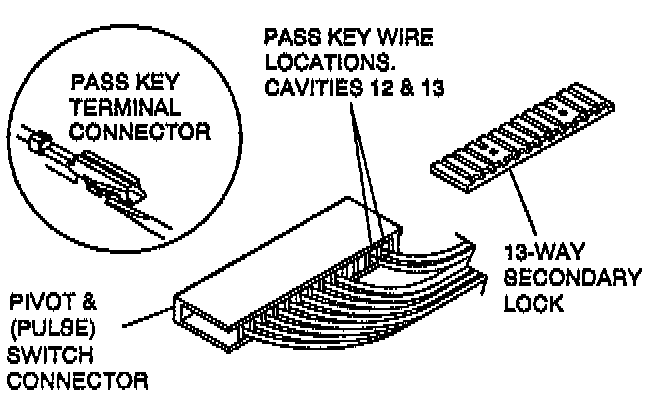

A. Pivot & (pulse) switch (23) connector from bulkhead connector and remove 13way secondary lock.
B. Two terminals of pass key wire harness from cavities 12 and 13 of switch (23) connector.
C. Wiring protector (26).
D. Attach a length of mechanics wire to terminal to aid in reassembly.
E. Retaining clip from housing cover (19) and gently pull wire harness through column.
