Rear Position Sensor Replacement

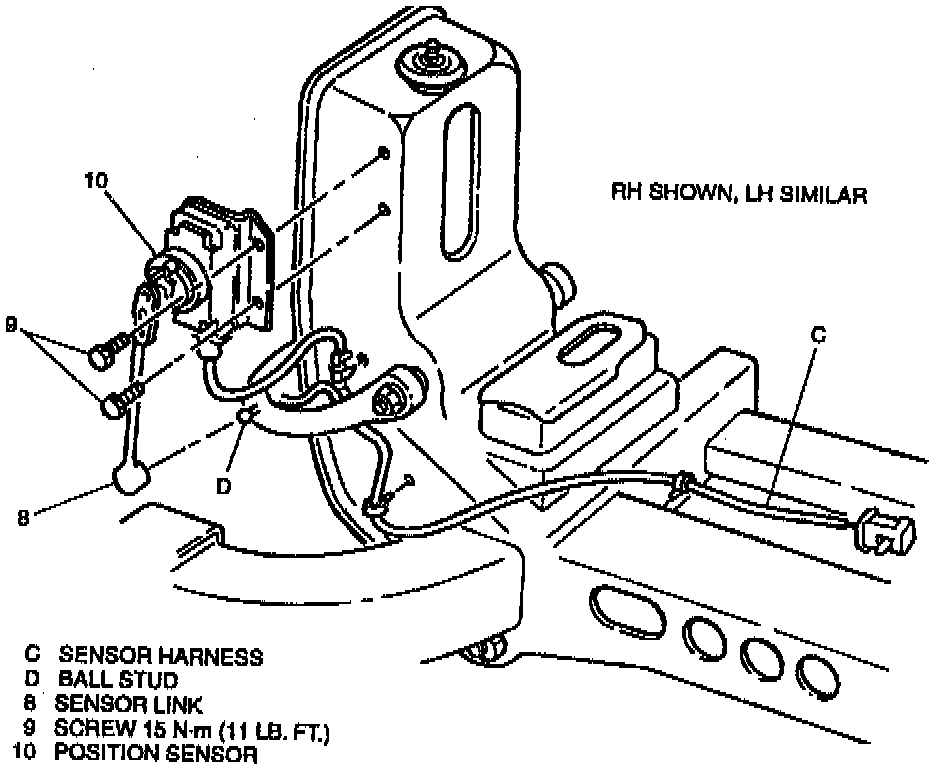

REMOVE OR DISCONNECT
1. Raise vehicle.
2. Wheel from vehicle.
3. Sensor harness (C) connector from vehicle harness connector.
4. Three sensor harness (C) clips from vehicle.
5. Sensor link (8) from ball stud (D).
6. Two screws (9) and position sensor (10) from vehicle.

INSTALL OR CONNECT

NOTICE: Always use the correct fastener in the correct location. When you replace a fastener, use ONLY the exact part number for that application. The manufacturer will call out those fasteners that require a replacement after removal. The manufacturer will also call out the fasteners that require thread lockers or thread sealant. UNLESS OTHERWISE SPECIFIED, do not use supplemental coatings (paints, greases, or other corrosion inhibitors) on threaded fasteners or fastener joint interfaces. Generally, such coatings adversely affect the fastener torque and the joint clamping force, and may damage the fastener. When you install fasteners, use the correct tightening sequence and specifications. Following these instructions can help you avoid damage to parts and systems.

1. Install position sensor (10) on vehicle with two screws (9).
^ Tighten two screws to 15 Nm (11 ft. lbs.).
2. Sensor link (8) to ball stud (D).
3. Three sensor harness (C) clips on vehicle.
4. Sensor harness (C) connector to vehicle harness connector.
5. Wheel on vehicle.
6. Lower vehicle.

Important: Electronic Leveling Control (ELC) Trim Height Adjustment must be performed.
