Final Drive Pinion End Play

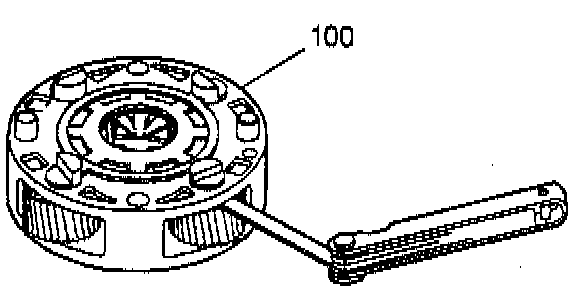

1. Inspect the final drive planet pinion to carrier clearance. The clearance should be 0.20-0.30 mm (0.007-0.012 in). The carrier must be replaced if the gears are out of specification.
2. Inspect the pinion gear teeth for chips or damage.
