Brake Fluid Level Sensor/Switch: Service and Repair

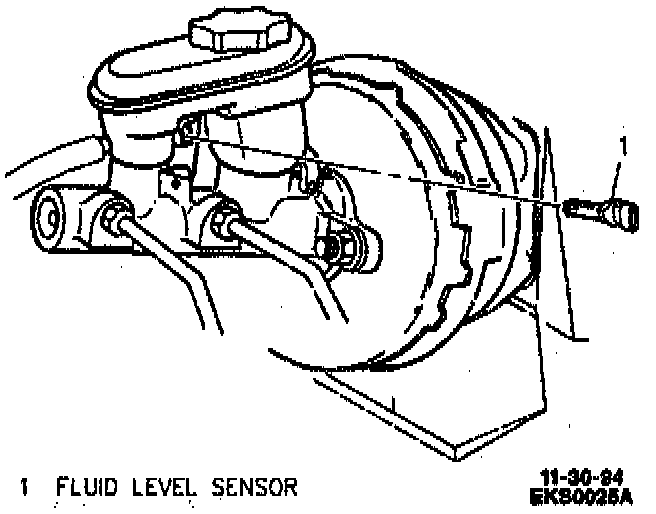

Fluid Level Sensor Switch:

REMOVE OR DISCONNECT
1. Electrical connector from fluid level sensor switch.

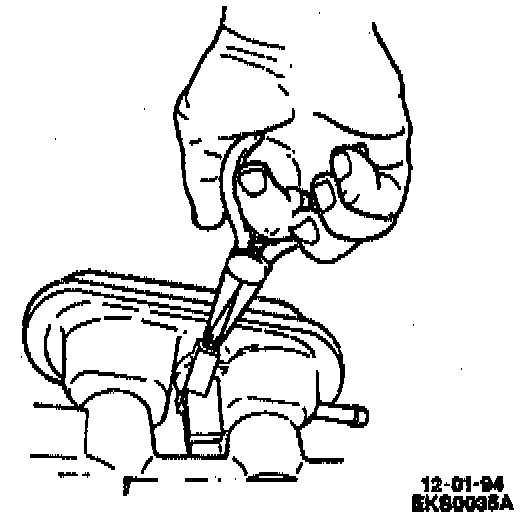

Unlocking Switch Tabs:

2. Fluid level sensor switch using needle nose pliers to compress switch locking tabs at inboard side of master cylinder.

INSTALL OR CONNECT
1. Fluid level sensor switch until locking tabs snap in place.
2. Electrical connector to fluid level sensor switch.
