Fuel Pump Relay: Service and Repair

Relay And Fuse Bracket Cover:

Removal Procedure

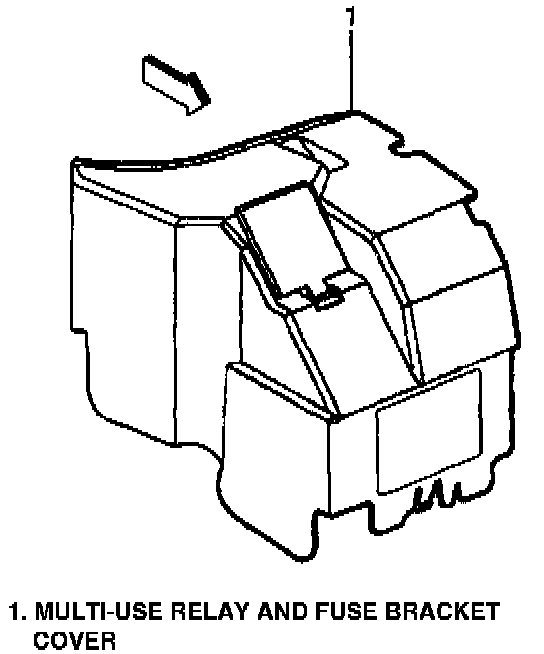

Notice: Numbers in text correspond to numbered components in image.

1. Unsnap the multi-use relay and fuse bracket cover to bracket (1).
2. Locate fuel pump relay and remove. Refer to Locations for fuel pump relay location.

Installation Procedure
1. Install the fuel pump relay.
2. Install the multi-use (1) relay and fuse bracket cover to bracket.
3. Snap tabs on cover into 3 holes on top and bottom of multi-use relay bracket to secure.
