Fuel Pump Relay: Locations

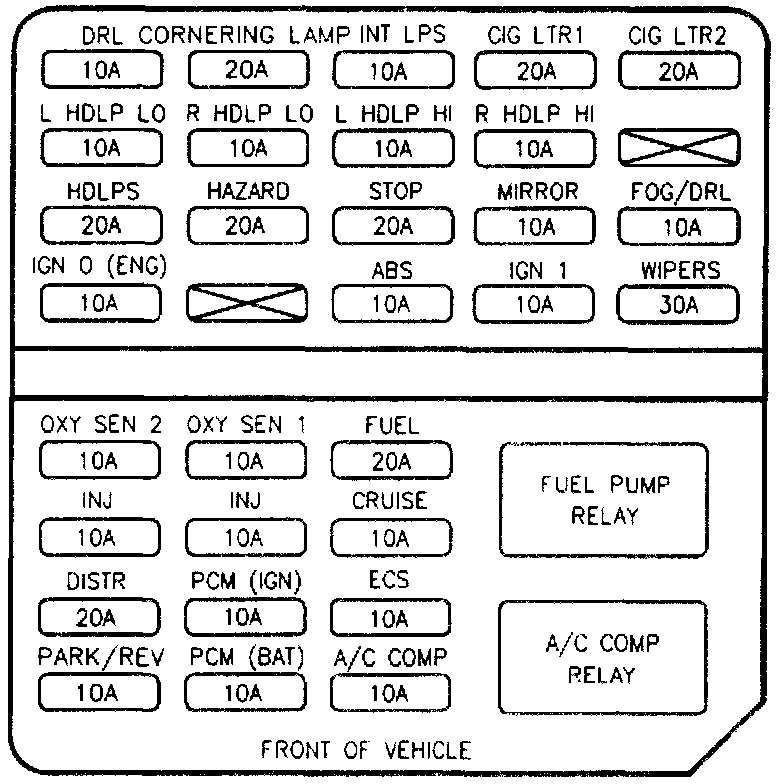

FUEL PUMP RELAYEngine Compartment Fuse/Relay Center:

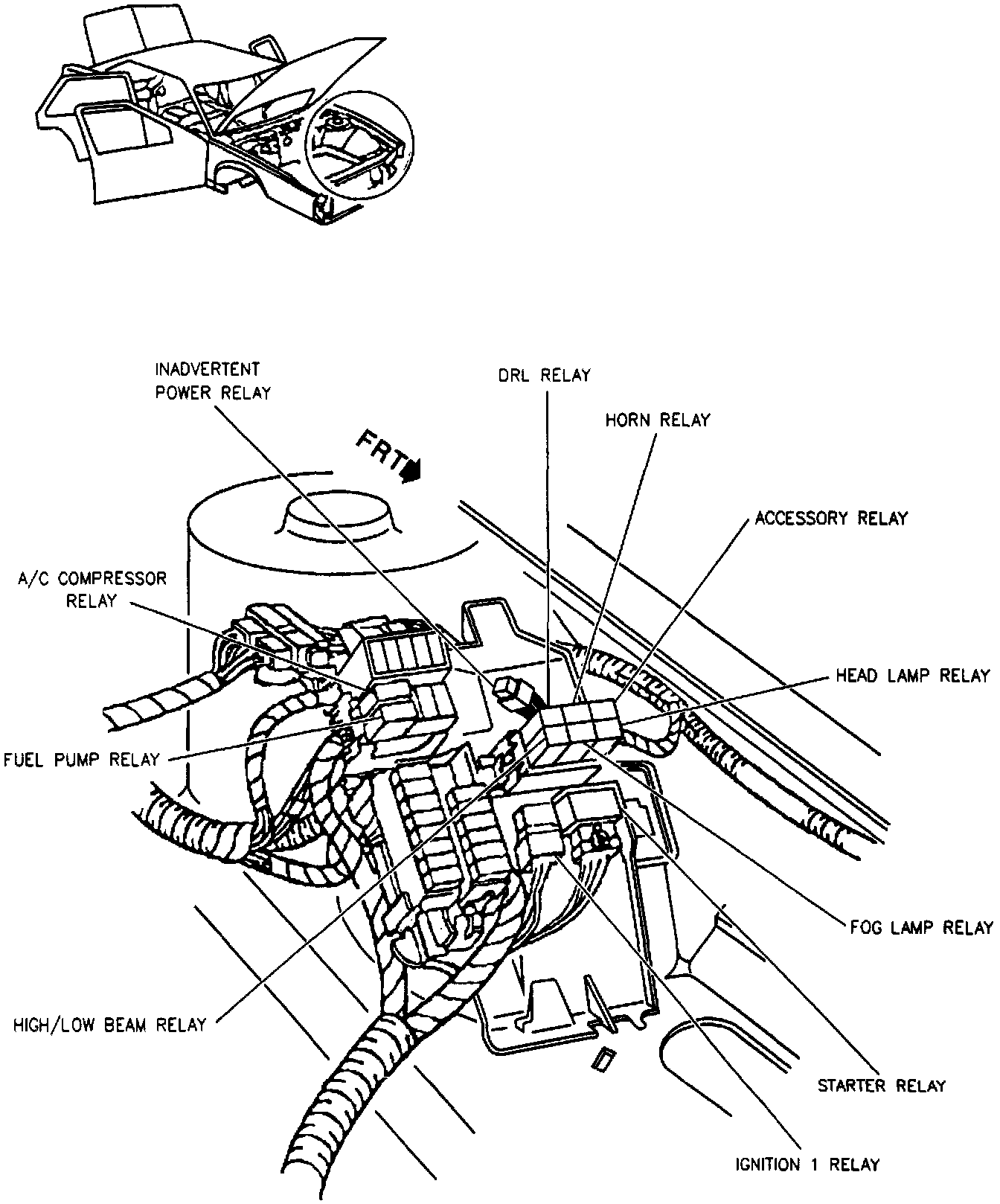

Engine Compartment Micro Relay Center:
The Fuel Pump Relay is located in the Engine Compartment Fuse/Relay Center. The Engine Compartment Fuse/Relay Center is located in the Left hand side of the engine compartment, near the front strut tower.
