EBTCM Connector Pinout Table

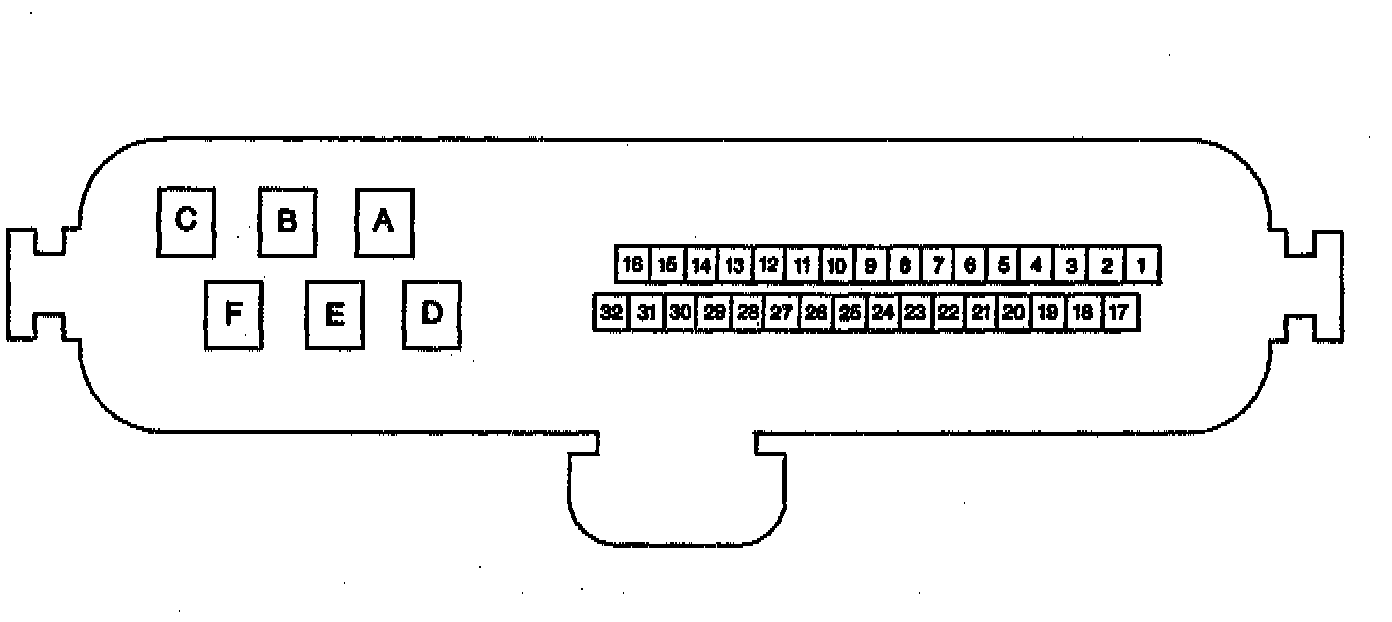

EBTCM Connector C1 And C2:

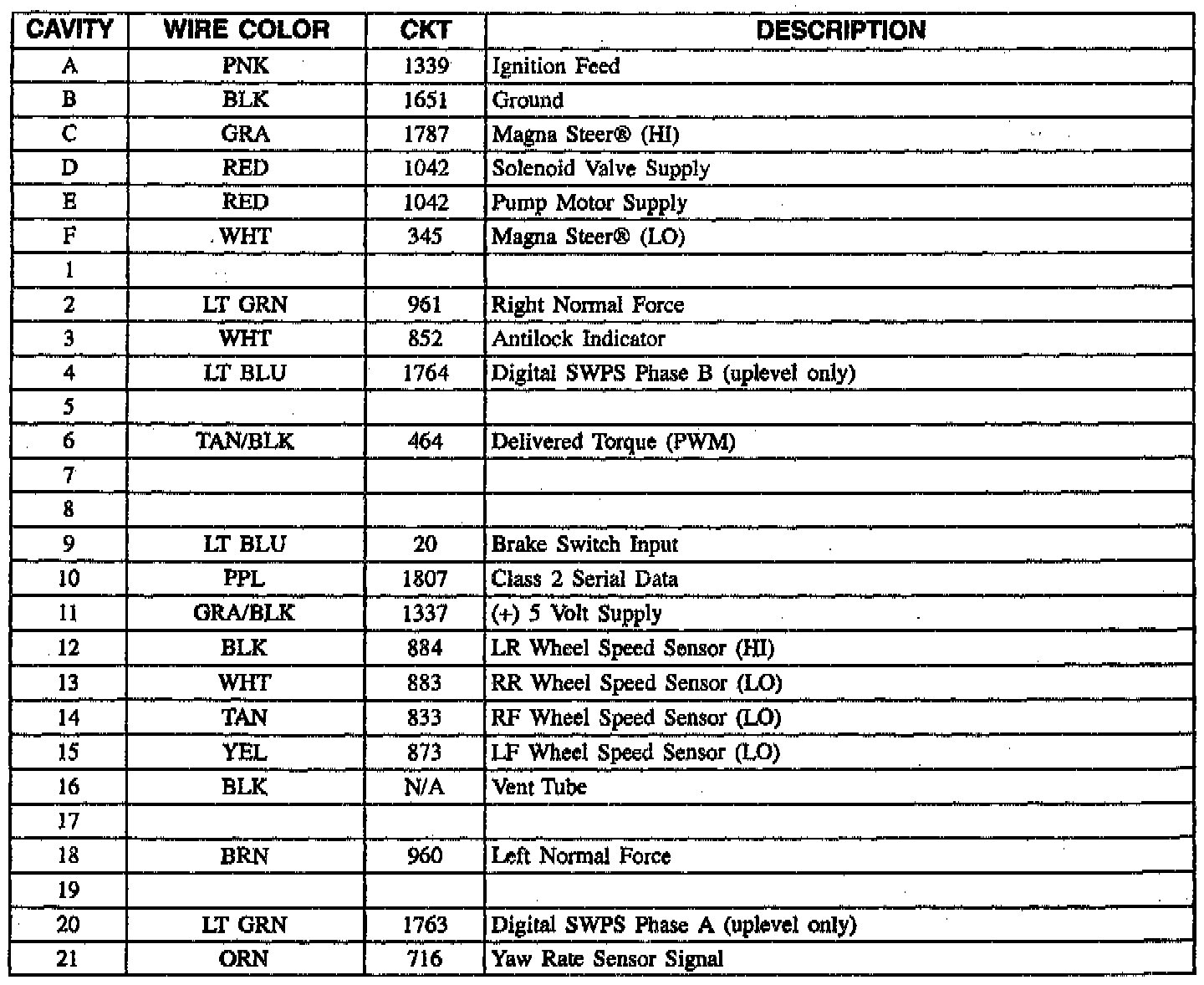

EBTCM Connector Pinout Table:



EBTCM Pinout Table:
