Cable Bracket Replacement

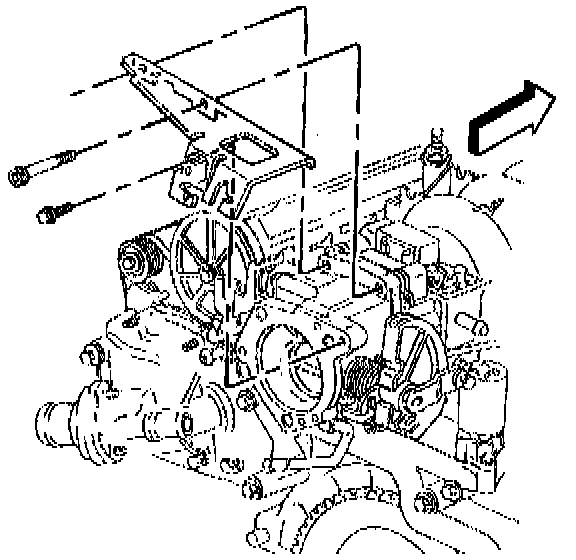

Accelerator Cable Bracket:

Removal Procedure
1. Remove the cruise control from the bracket.

2. Remove the accelerator cable from the bracket.

3. Remove the accelerator cable bracket bolts.

Installation Procedure
1. Install the accelerator cable bracket.

2. Install the accelerator cable to the bracket.

3. Install the cruise control to the bracket.
