EVAP - Revised Pipes/Canister Illustration and Callouts

File In Section: 6E - Engine Fuel & Emission

Bulletin No.: 71-63-03

Date: August, 1997

SERVICE MANUAL UPDATE

Subject:
Section 6E - Engine Controls Revised Rear EVAP Pipes and Canister Illustration and Callouts

Model:
1997 Cadillac DeVille, Eldorado, Seville
with 4.6L Engine (VINs Y, 9 - RPOs LD8, L37)

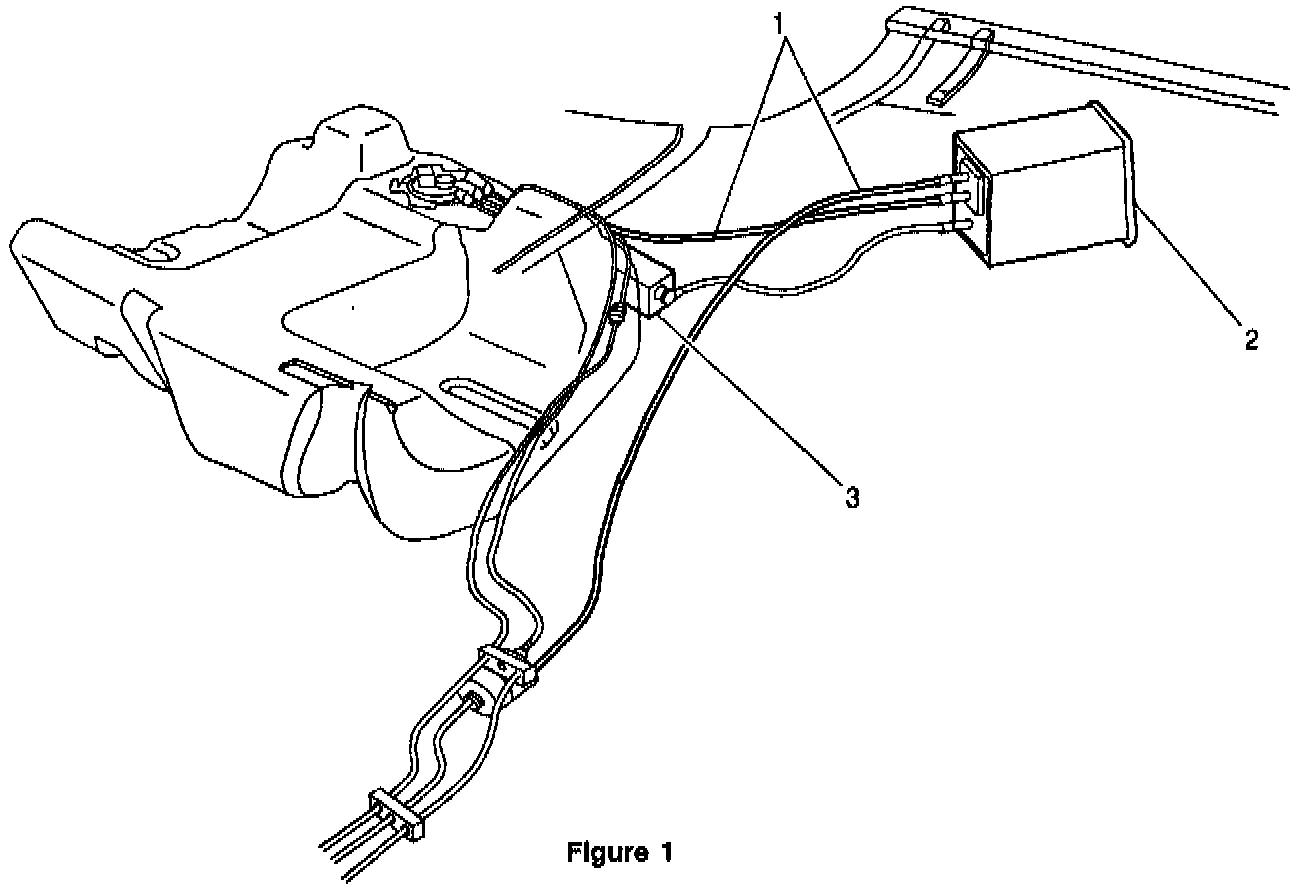

This bulletin is being issued to provide the revised Illustration and Callouts for the Rear Fuel and EVAP Pipes and Canister.

Revised Callouts are as follows:

# 1 EVAP Canister Pipes

# 2 EVAP Canister

# 3 EVAP Canister Filter





This Illustration is located in Engine Controls, 4.6L - page 6-812.
