Home >> Cadillac >> 1997 >> DeVille Concours V8-4.6L VIN 9 >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Scan Tool Testing and Procedures >> Scan Tool Data List >> Engine 2 Data Values

Engine 2 Data Values

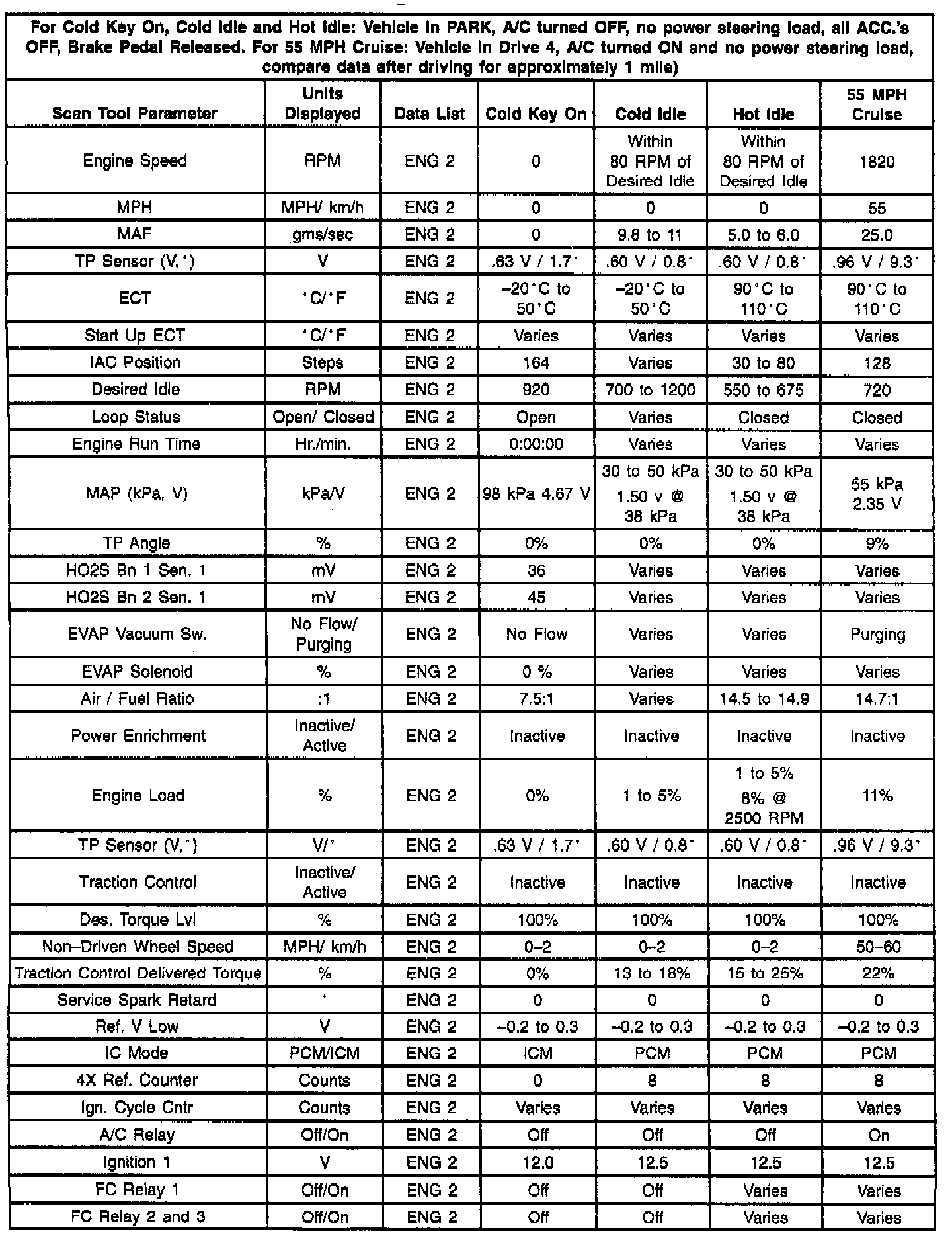

Engine 2 Data Values - Part 1 0f 2:

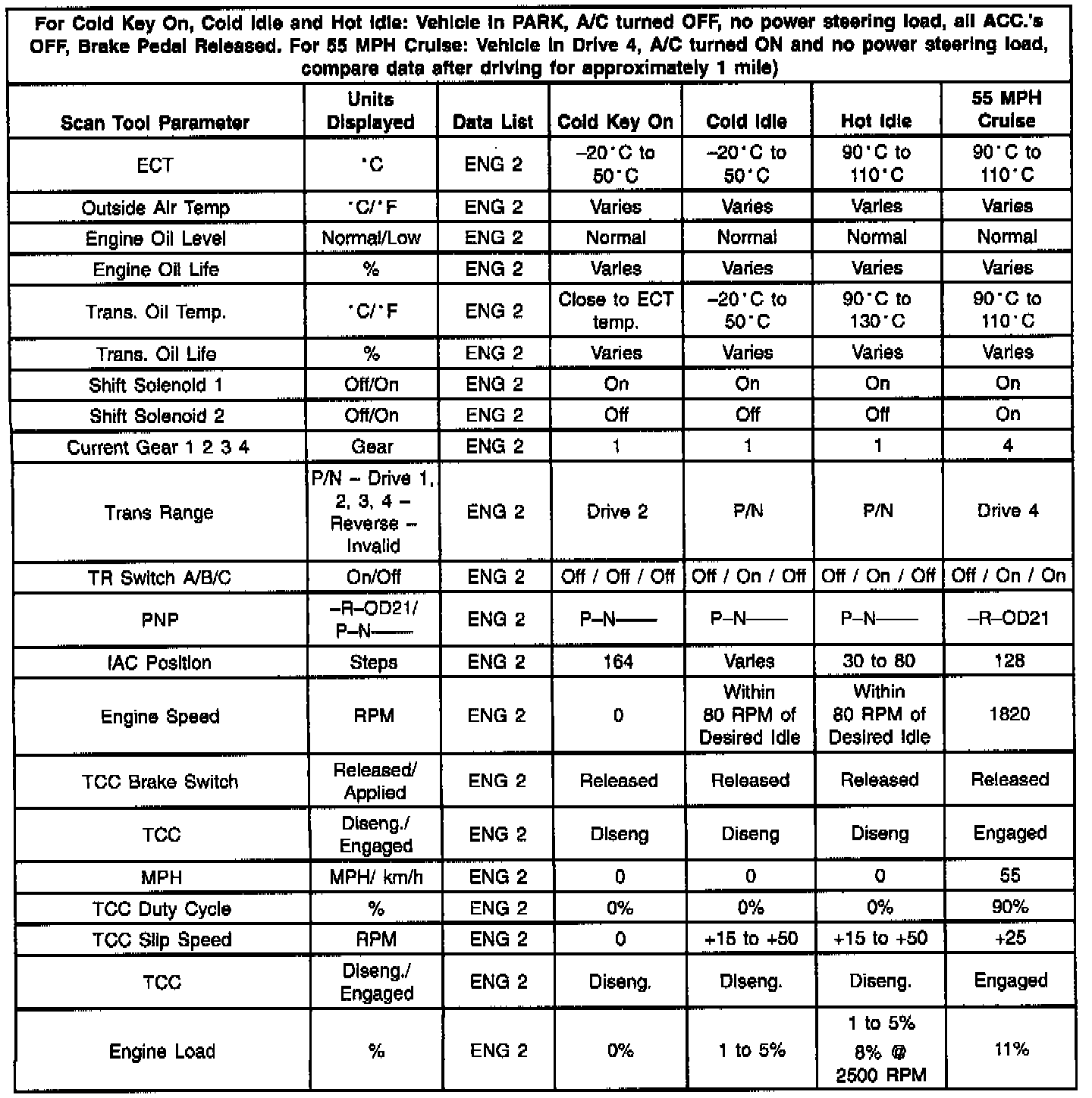

Engine 2 Data Values - Part 2 0f 2:
