Export Only

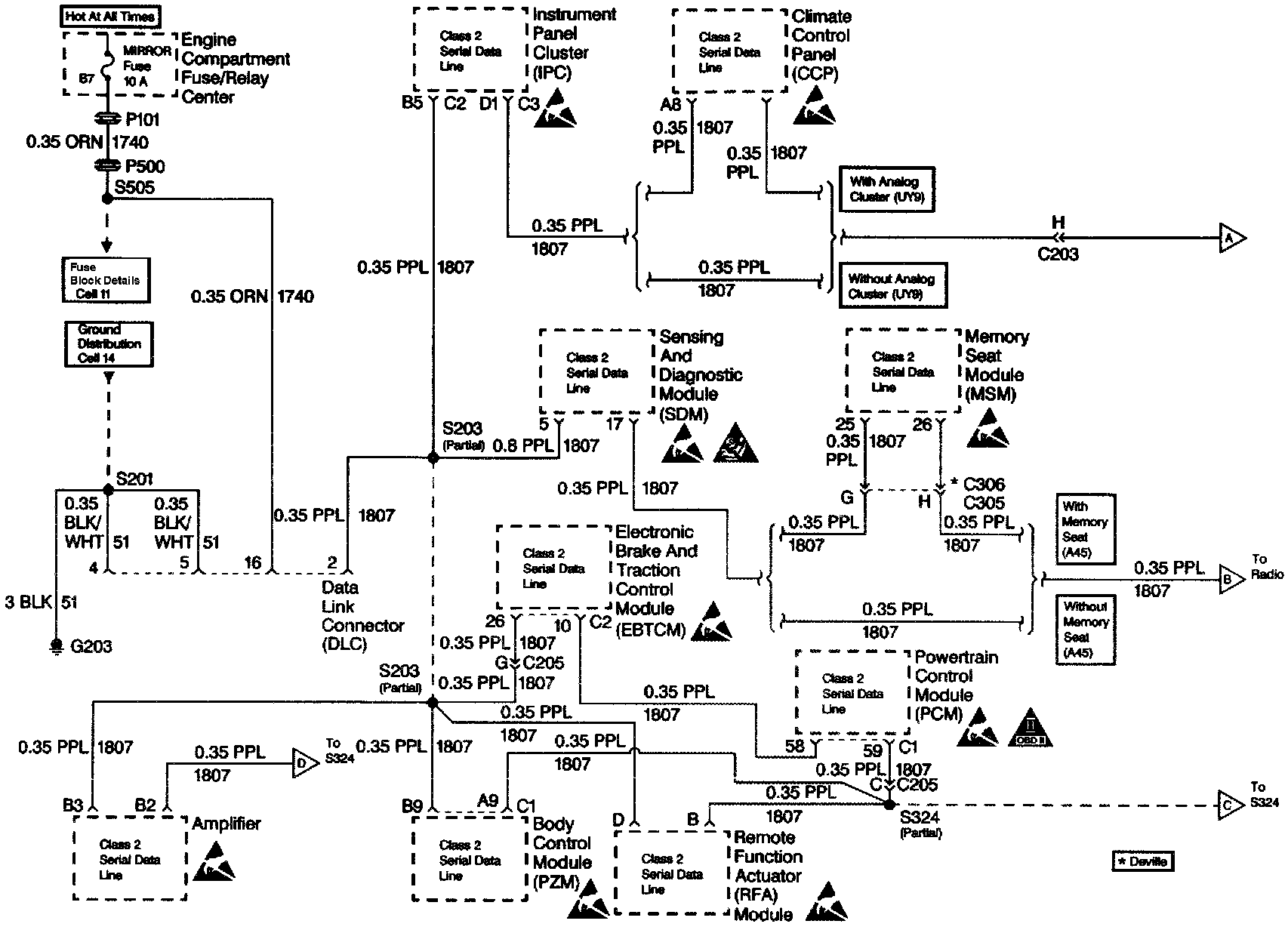

Data Link Connector (DLC): Export (Part 1 Of 2):

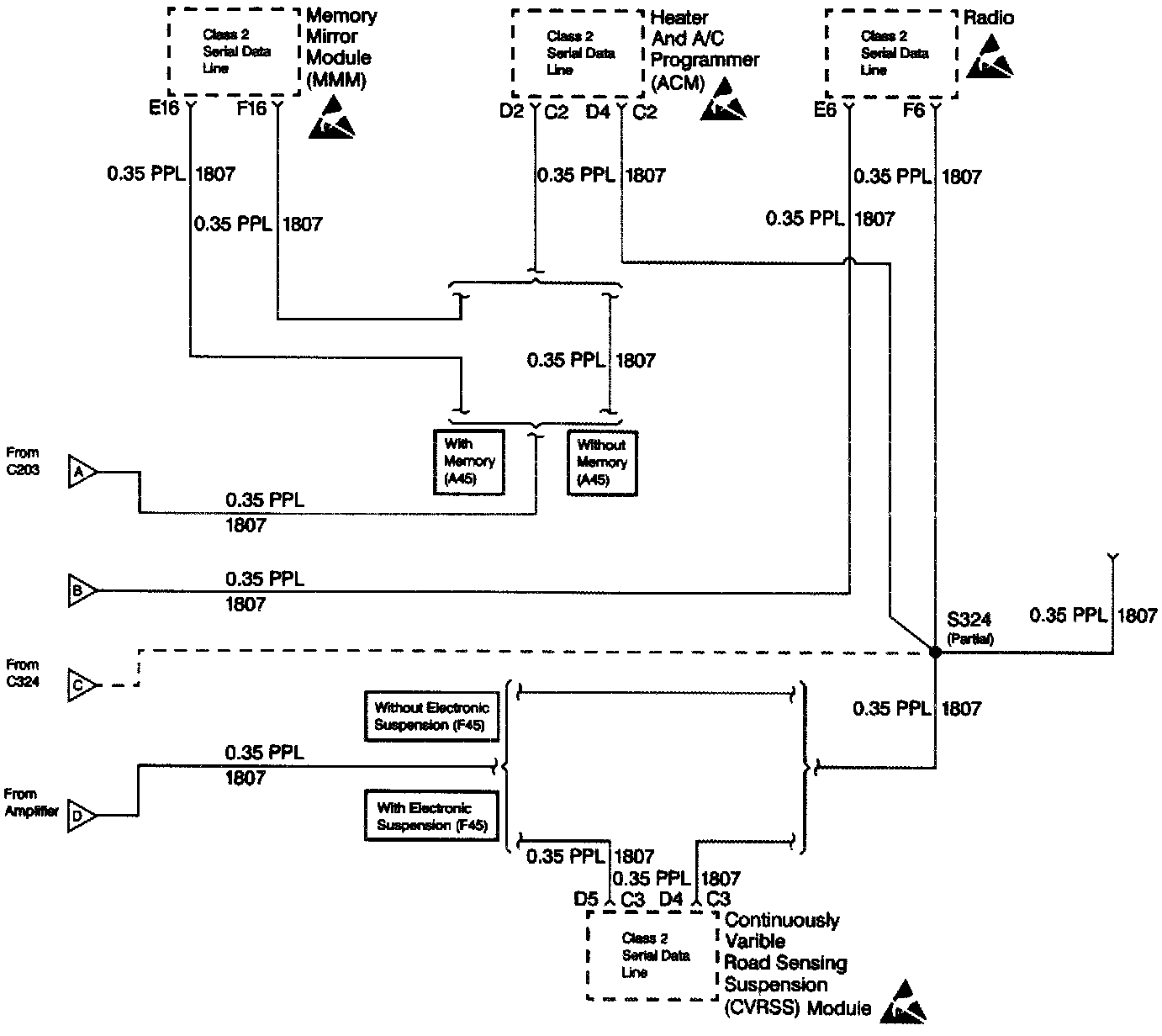

Data Link Connector (DLC): Export (Part 2 Of 2):
