Home >> Cadillac >> 1997 >> DeVille Concours V8-4.6L VIN 9 >> Repair and Diagnosis >> Lighting and Horns >> Headlamp >> Diagrams >> Electrical Diagrams >> Without Daytime Running Lamps (DRL) >> General

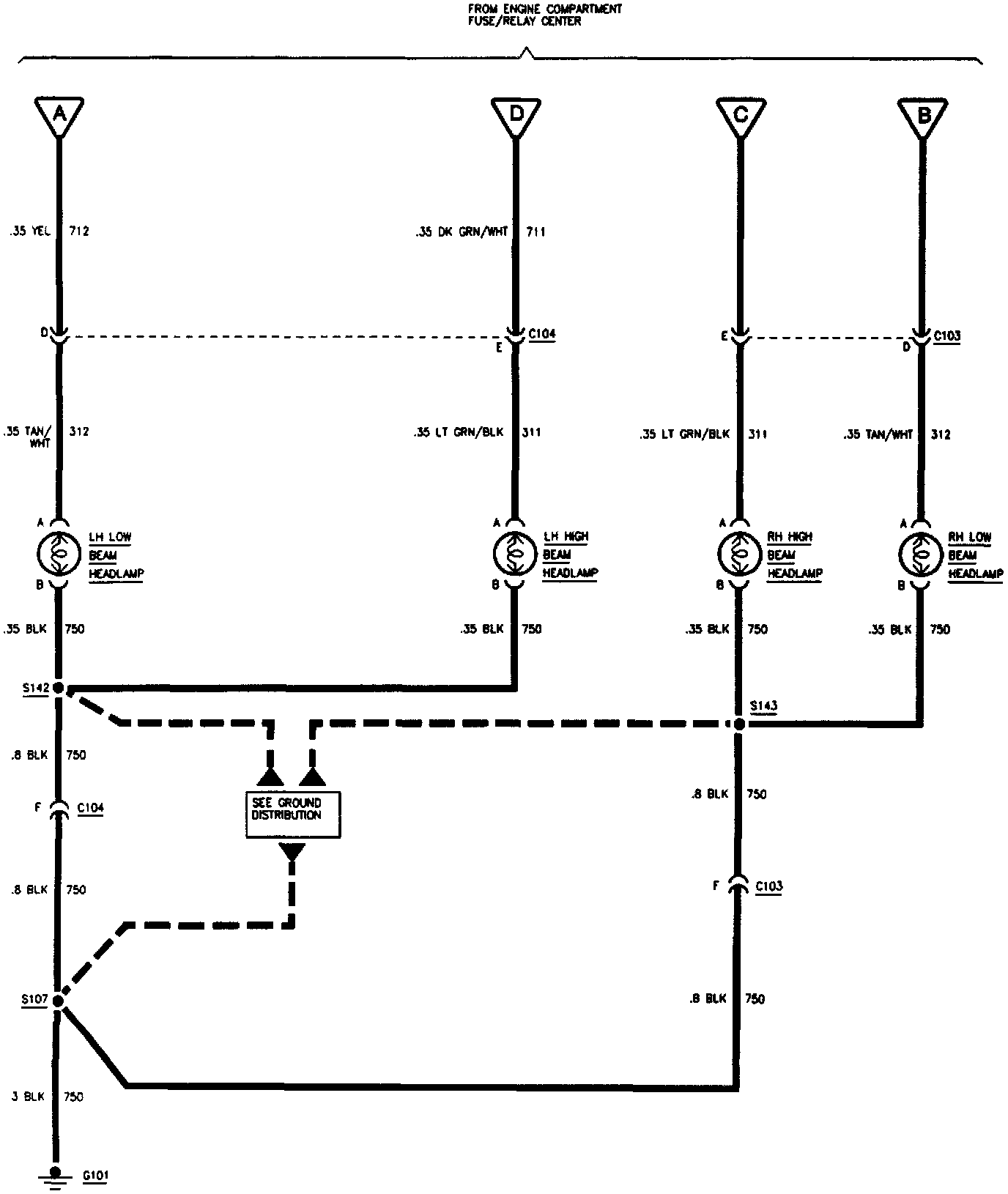

General

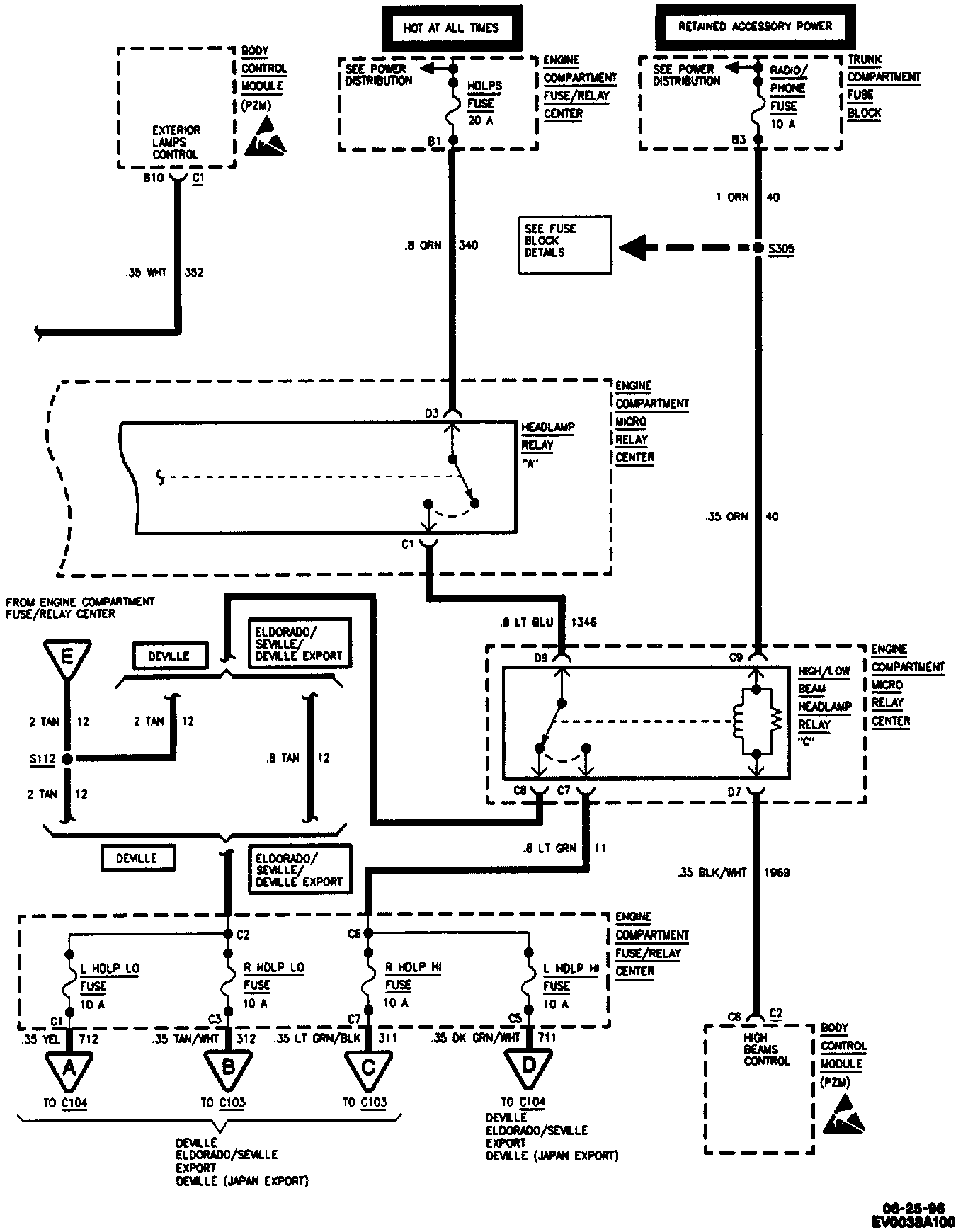

Headlamps: Headlamp Dimmer Switch/Twilight Sentinel:

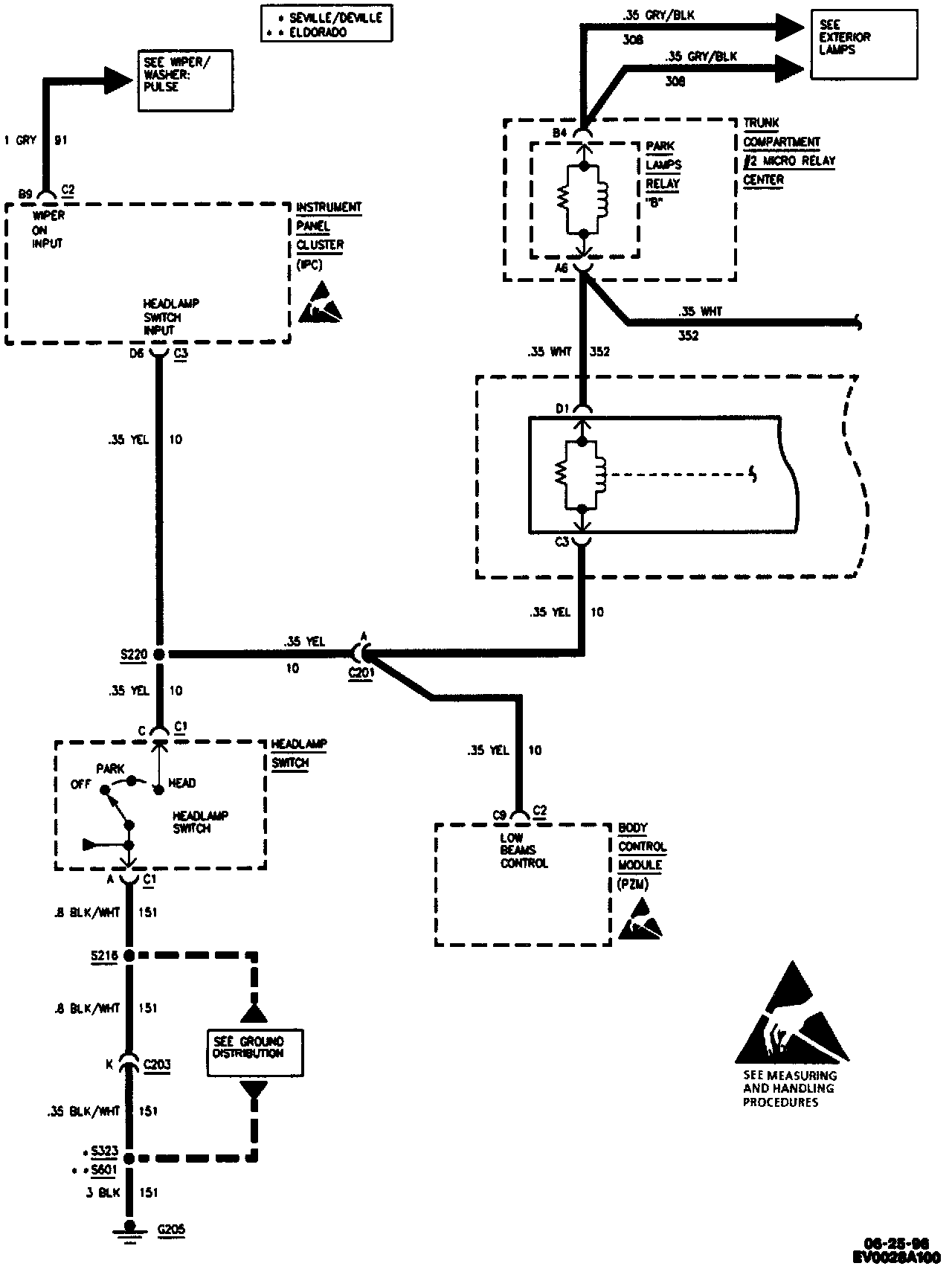

Headlamps: Headlamp Dimmer Switch/Twilight Sentinel:



Headlamps: Japan Export:
