Home >> Cadillac >> 1997 >> DeVille Concours V8-4.6L VIN 9 >> Repair and Diagnosis >> Lighting and Horns >> Fog/Driving Lamp >> Testing and Inspection >> Diagnostic Charts >> Chart #4 Rear Fog Lamps Inoperative

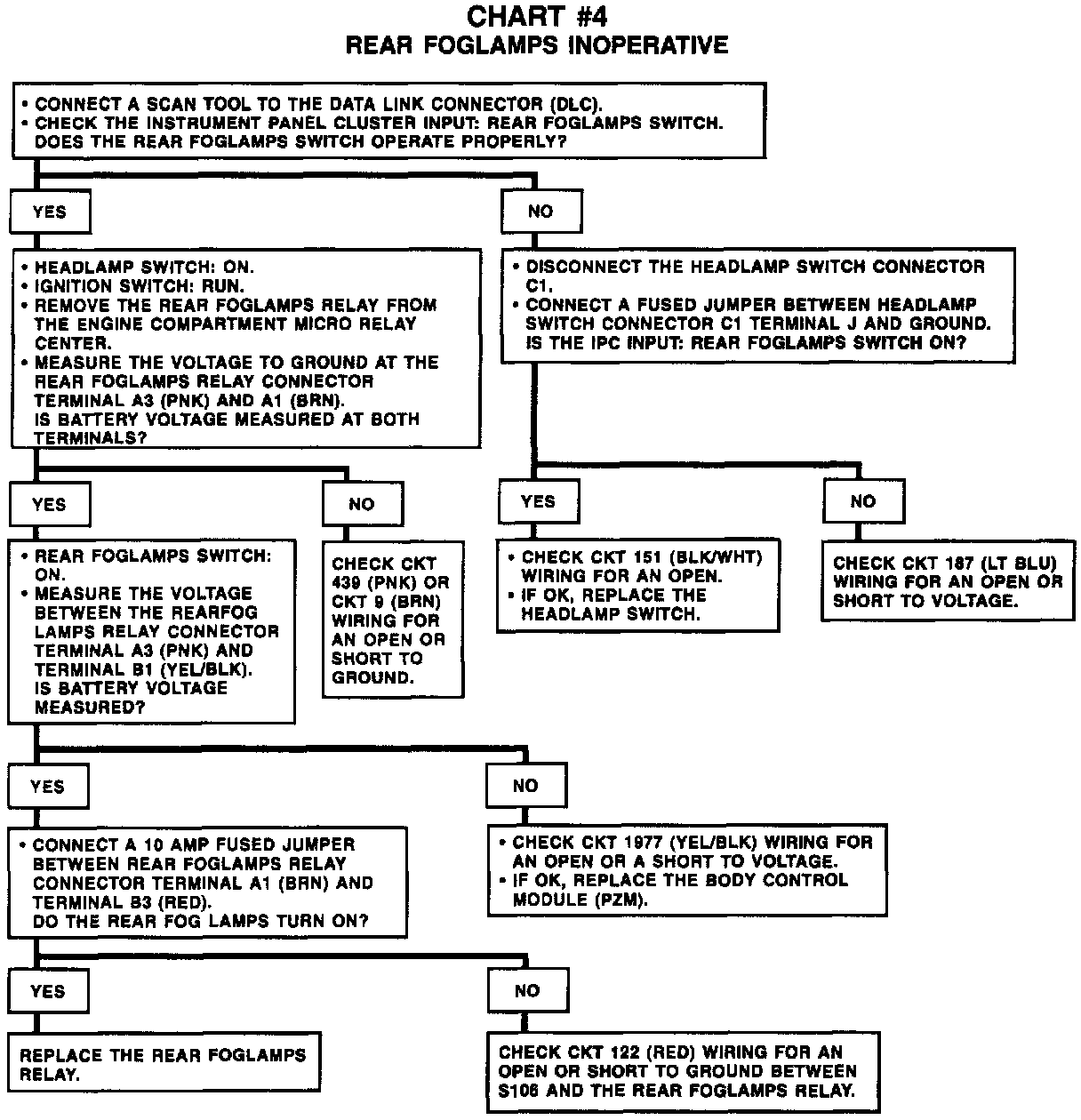

Chart #4 Rear Fog Lamps Inoperative

Chart #4 Rear Fog Lamps Inoperative:
