Home >> Cadillac >> 1997 >> DeVille Concours V8-4.6L VIN 9 >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Symptom Diagnostic Charts >> With HVAC System - Automatic >> Chart 4 Passenger Temperature Offset Functioning Improperly - Dual Zone Climate Controls Only

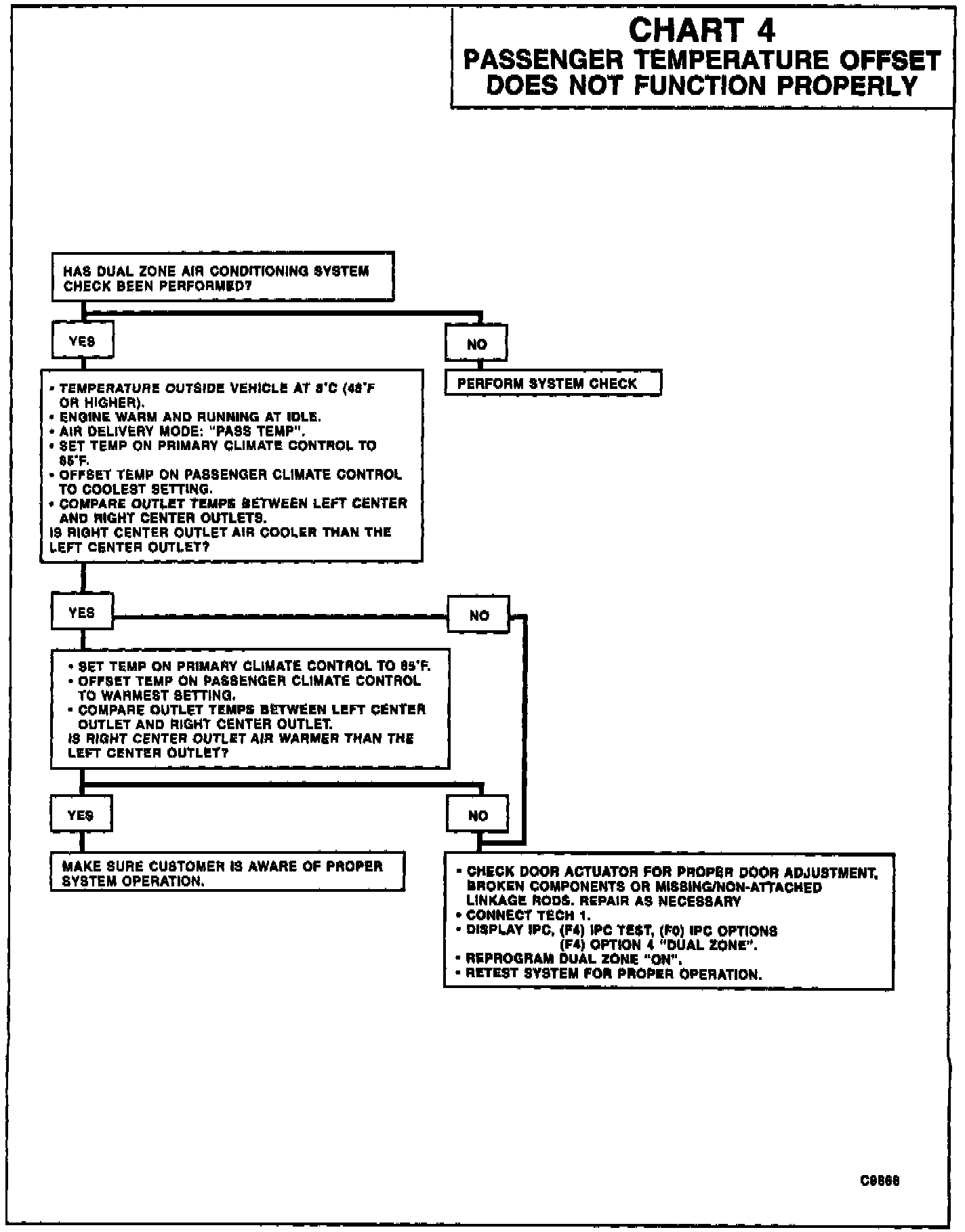

Chart 4 Passenger Temperature Offset Functioning Improperly - Dual Zone Climate Controls Only
