Home
>>
Cadillac
>>
1997
>>
DeVille Concours V8-4.6L VIN 9
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Suspension
>>
Suspension Control ( Automatic - Electronic )
>>
Electronic Level Control (ELC)
>>

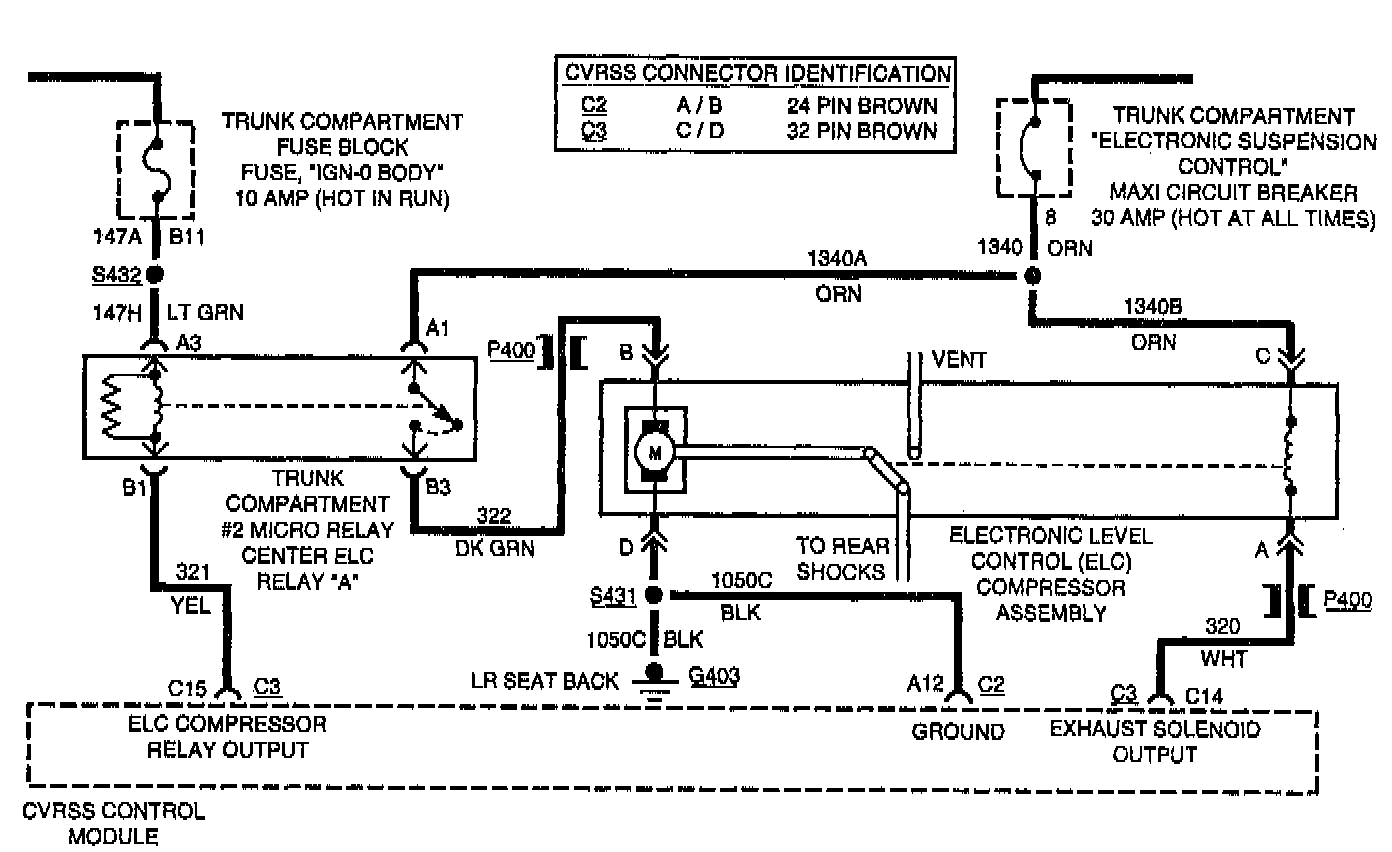

With Continuously Variable Road Sensing Suspension (CVRSS)
With Continuously Variable Road Sensing Suspension (CVRSS)

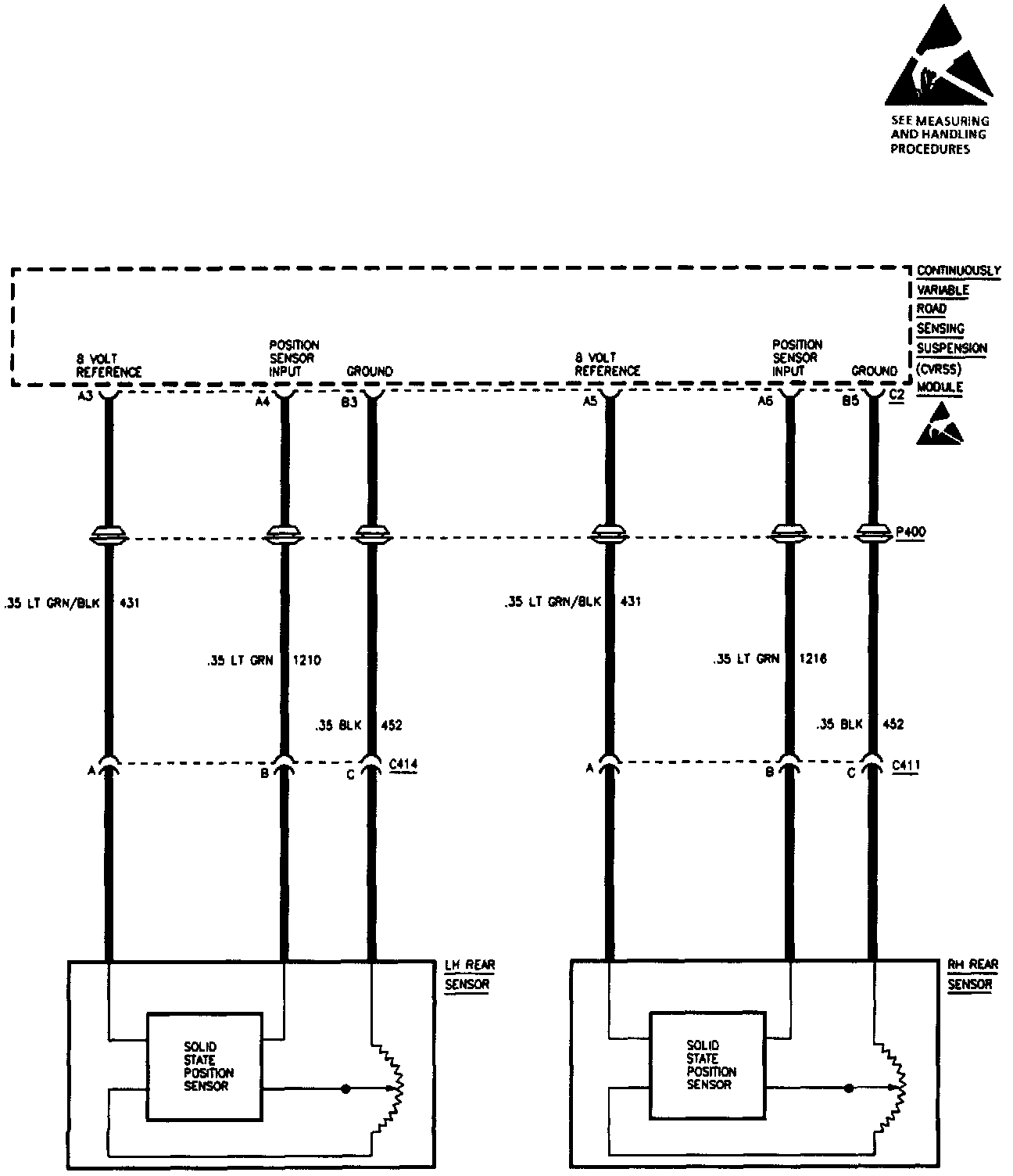

Electronic Level Control: With F45 (Part 1 Of 3):

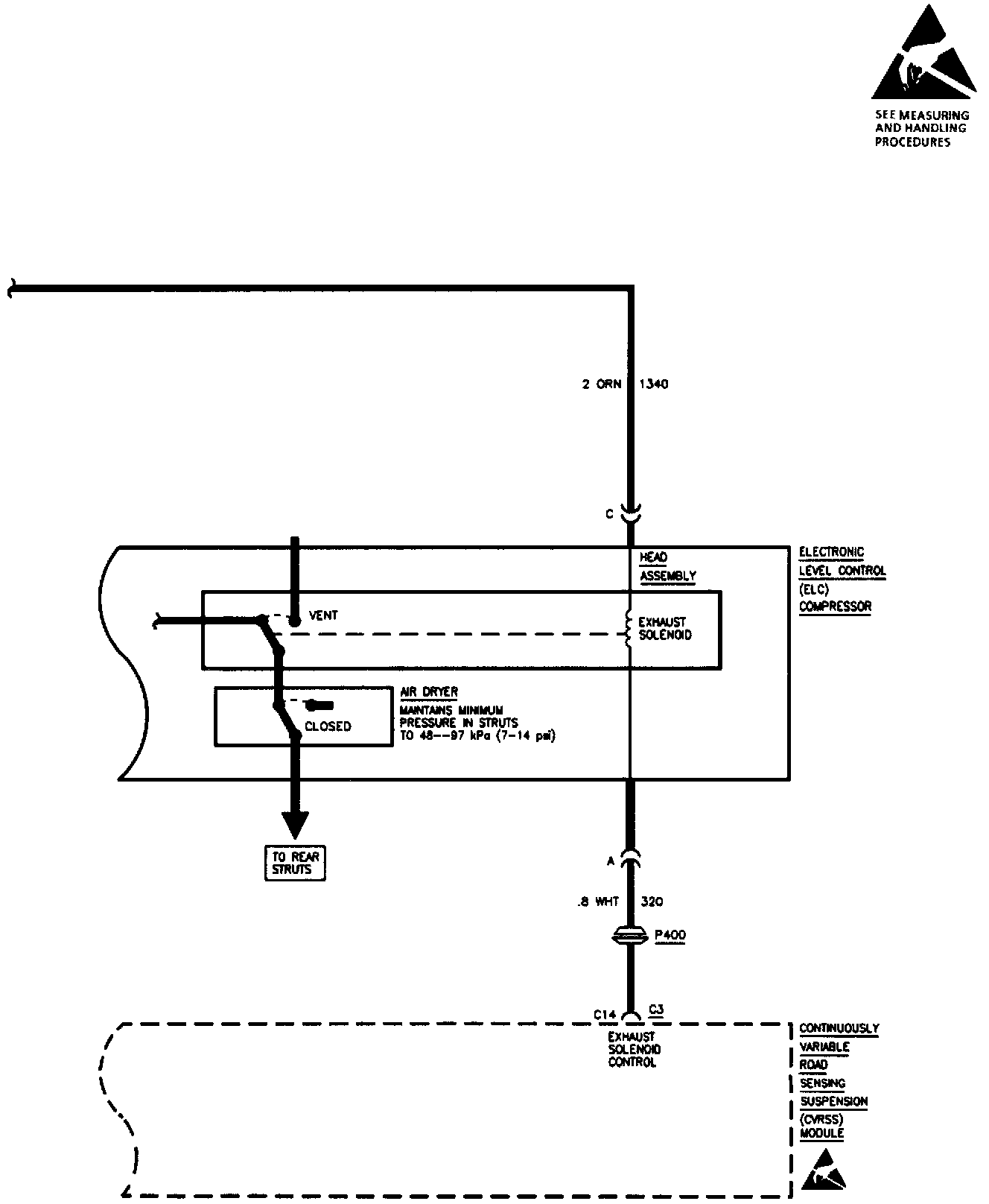

Electronic Level Control: With F45 (Part 2 Of 3):

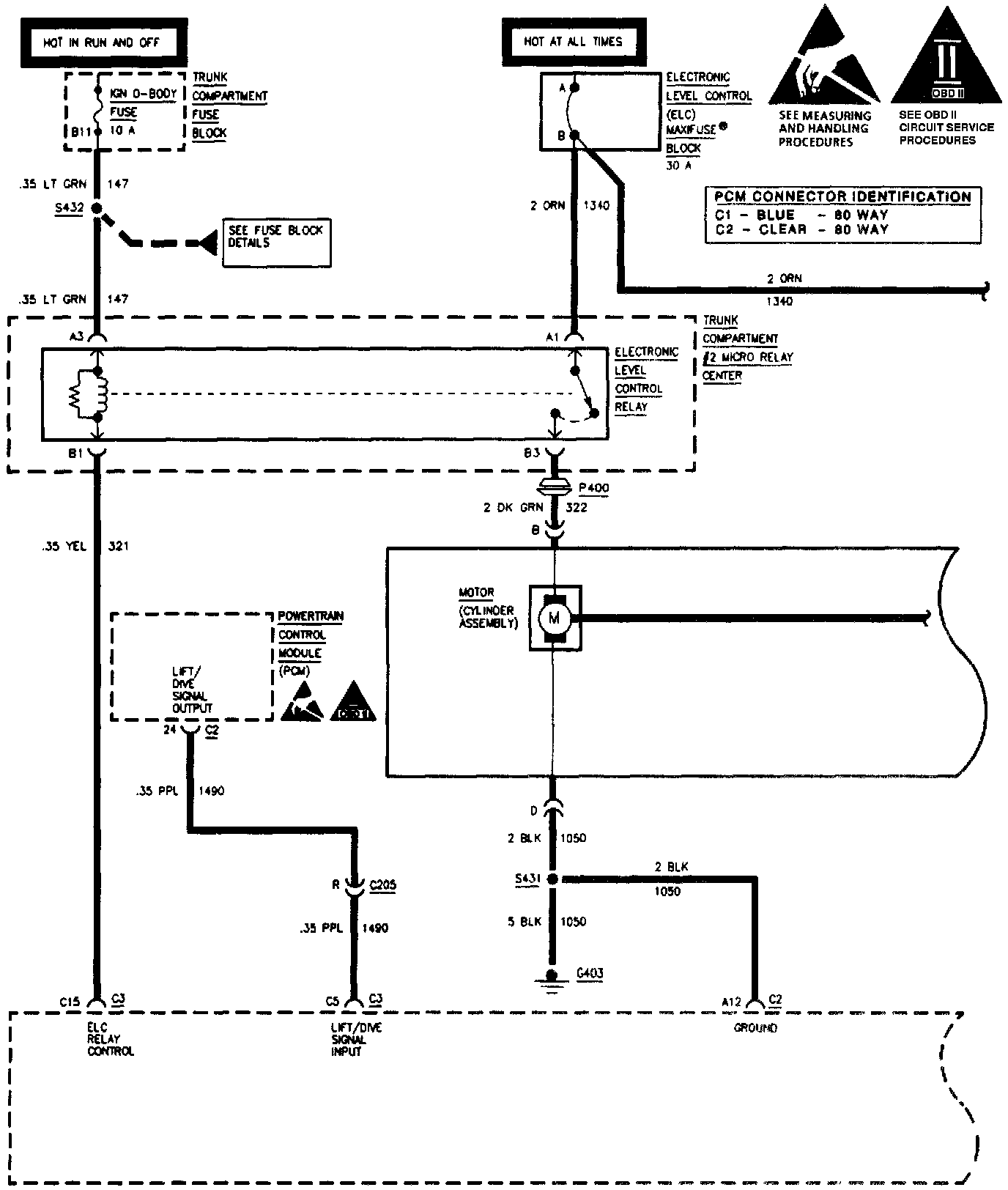

Electronic Level Control: With F45 (Part 3 Of 3):
