Continuously Variable Road Sensing Suspension (CVRSS)

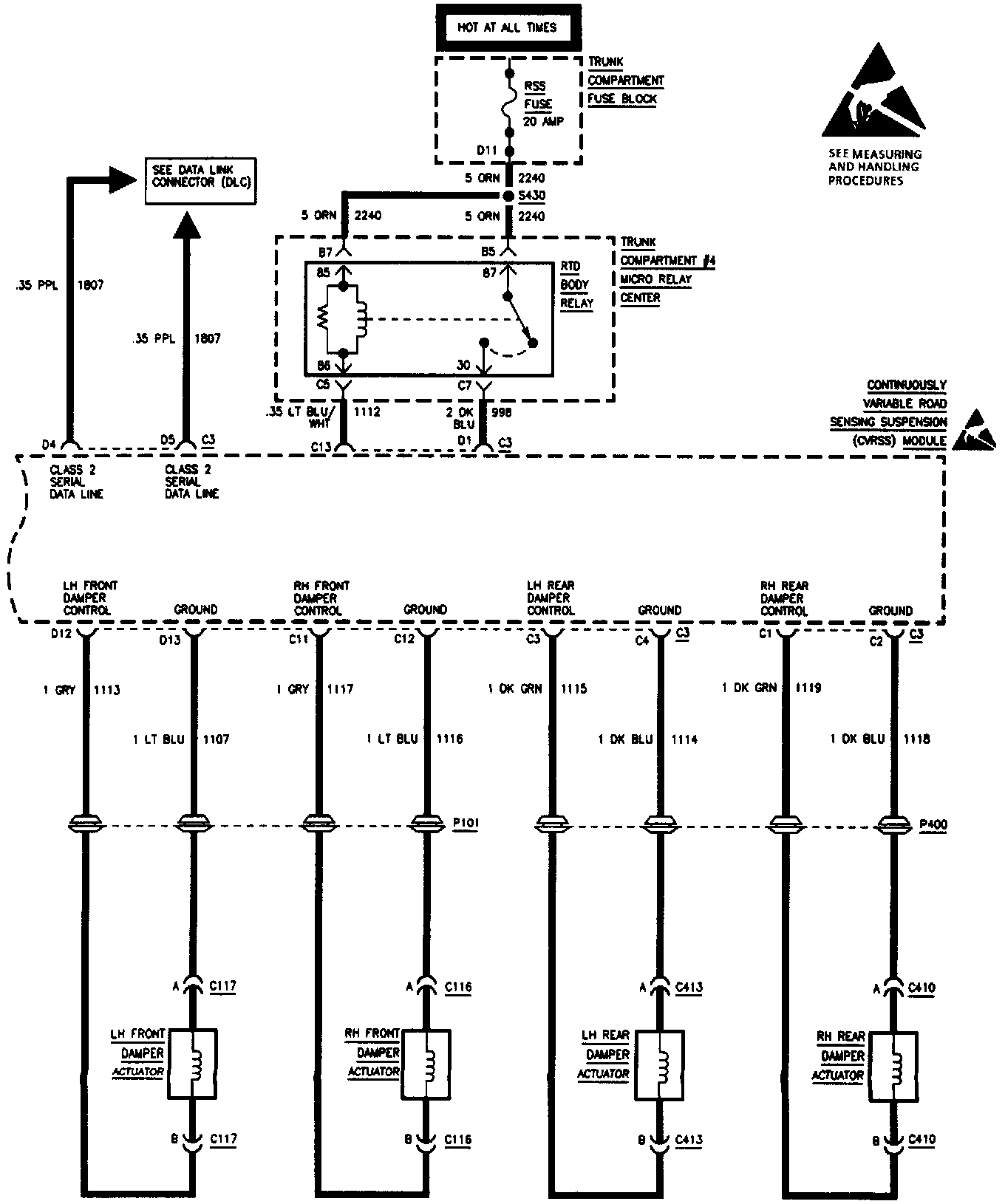

Suspension Controls (Part 1 Of 3):

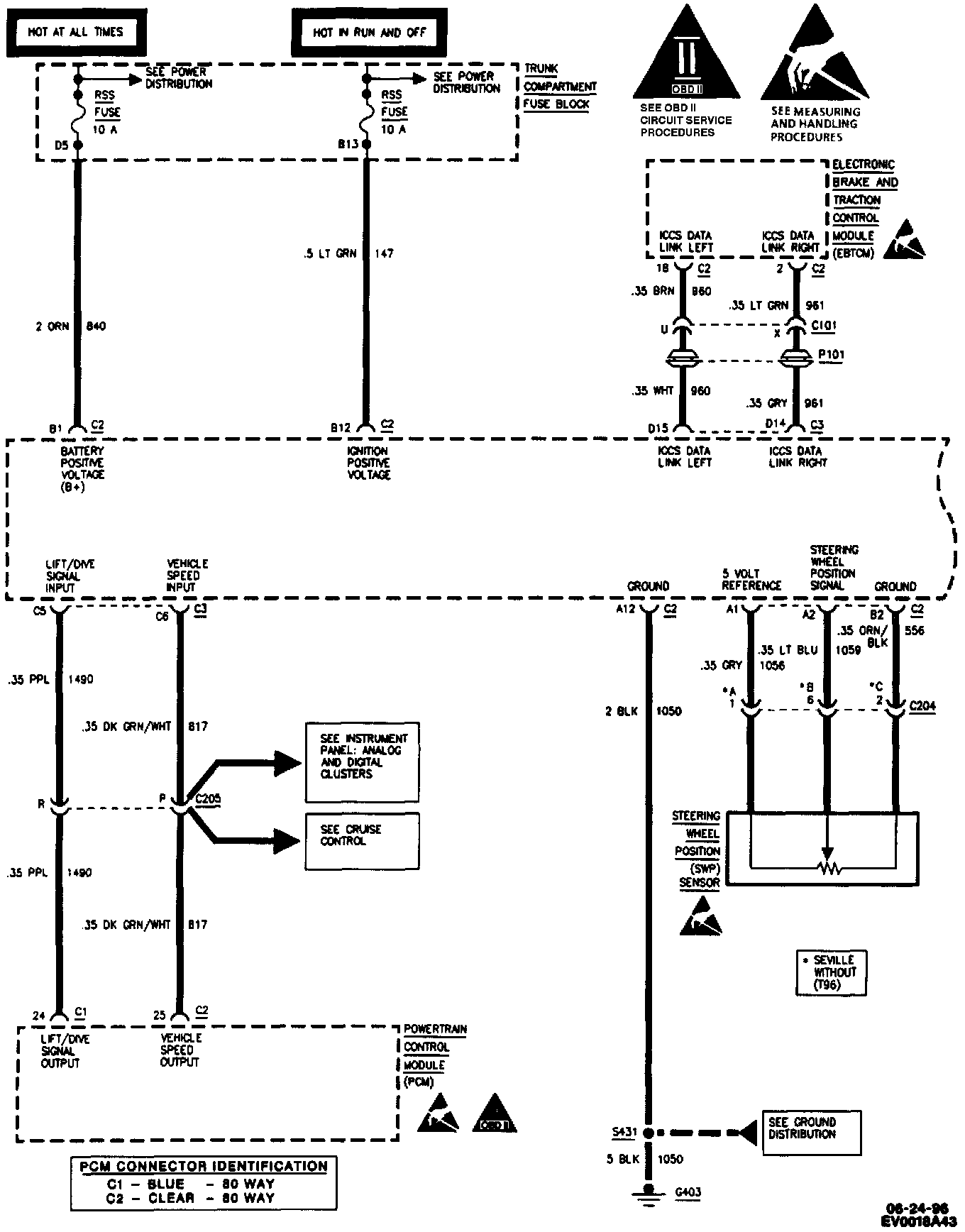

Suspension Controls (Part 2 Of 3):

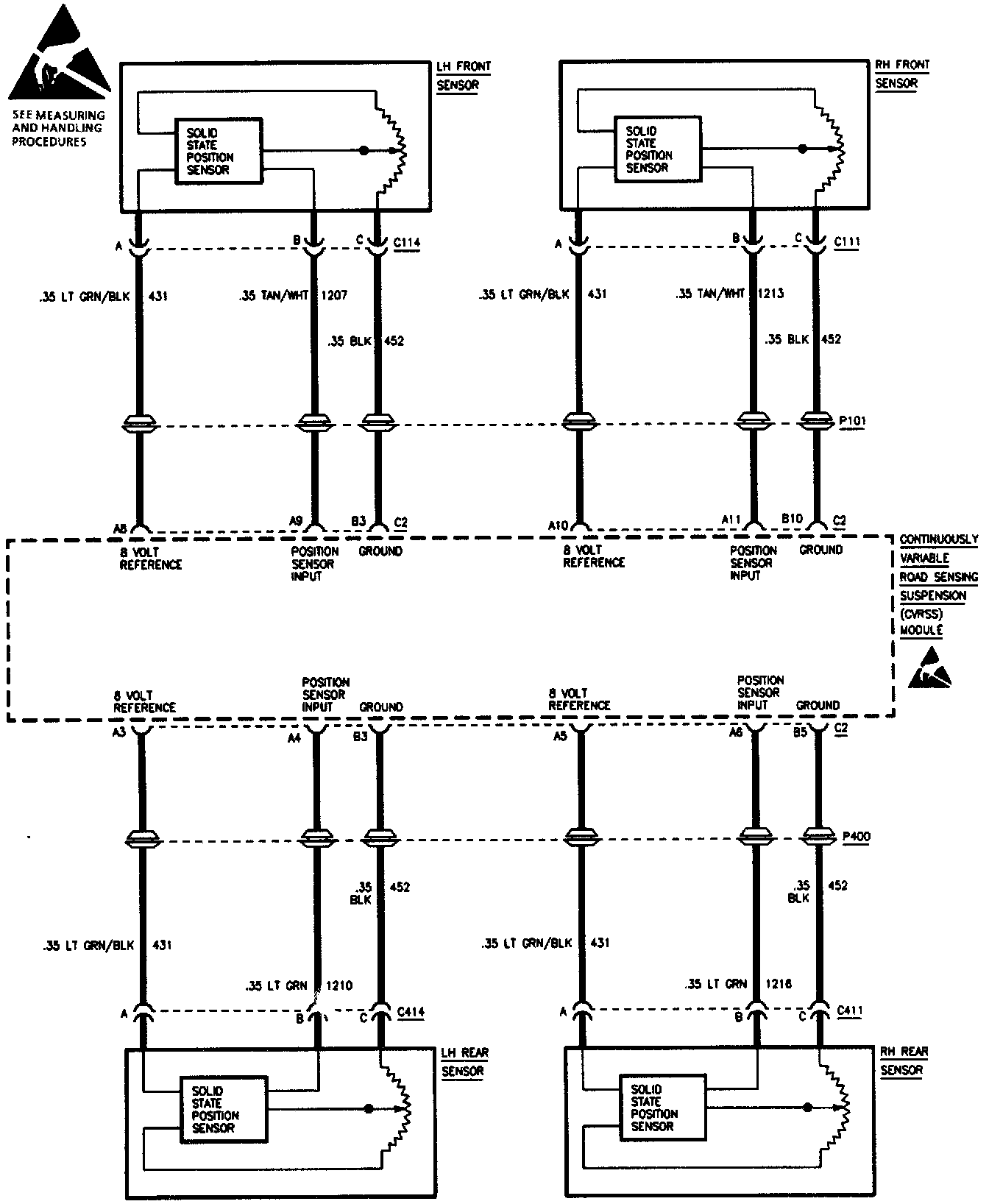

Suspension Controls (Part 3 Of 3):
