DeVille Concours V8-4.6L VIN 9
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Radio, Stereo, and Compact Disc
>>
System Diagram
>>
Radio/Audio System Wiring
>>
With Active Audio System
With Active Audio System

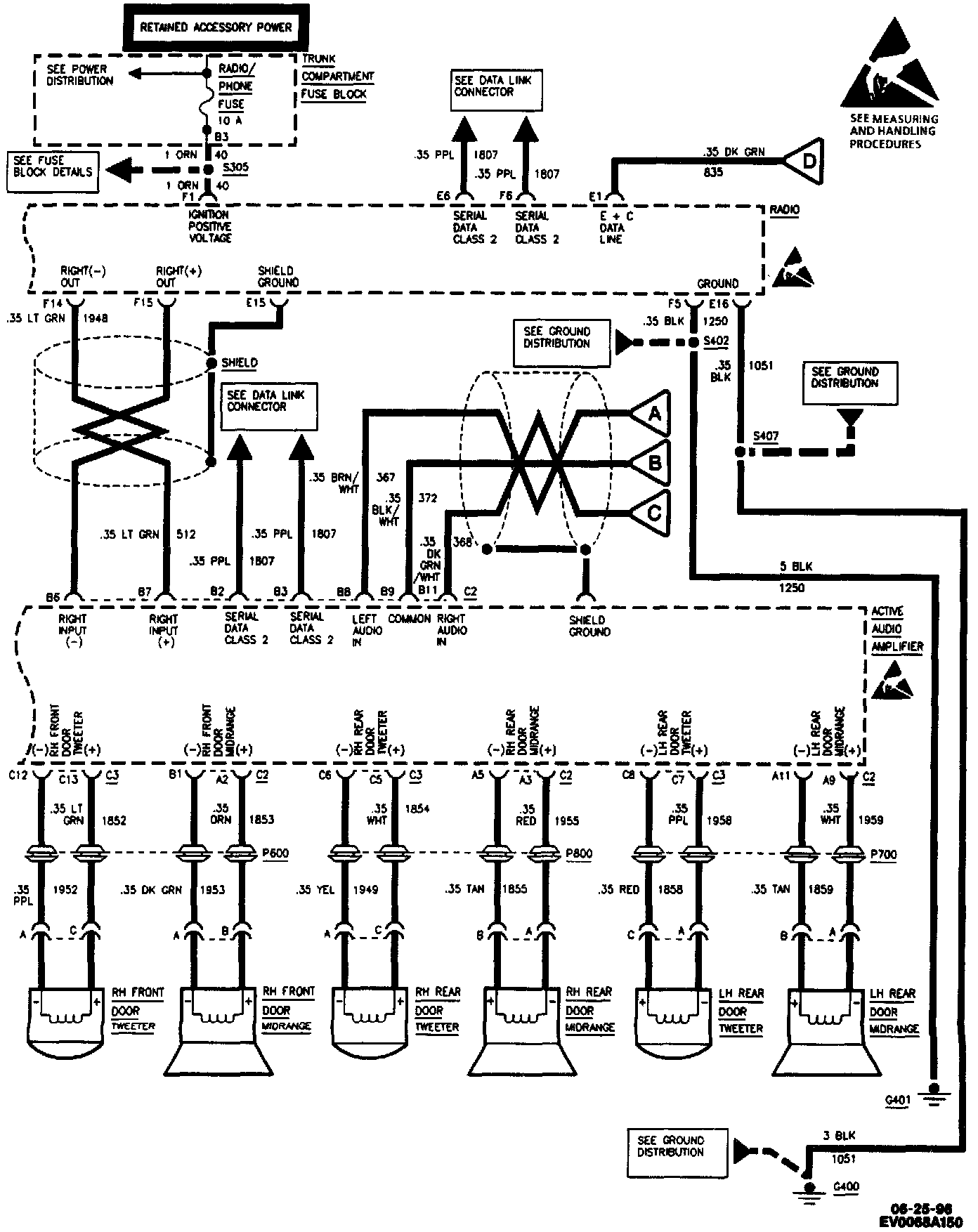

Audio Systems: With Active Audio System UQ6 (Part 1 Of 3):

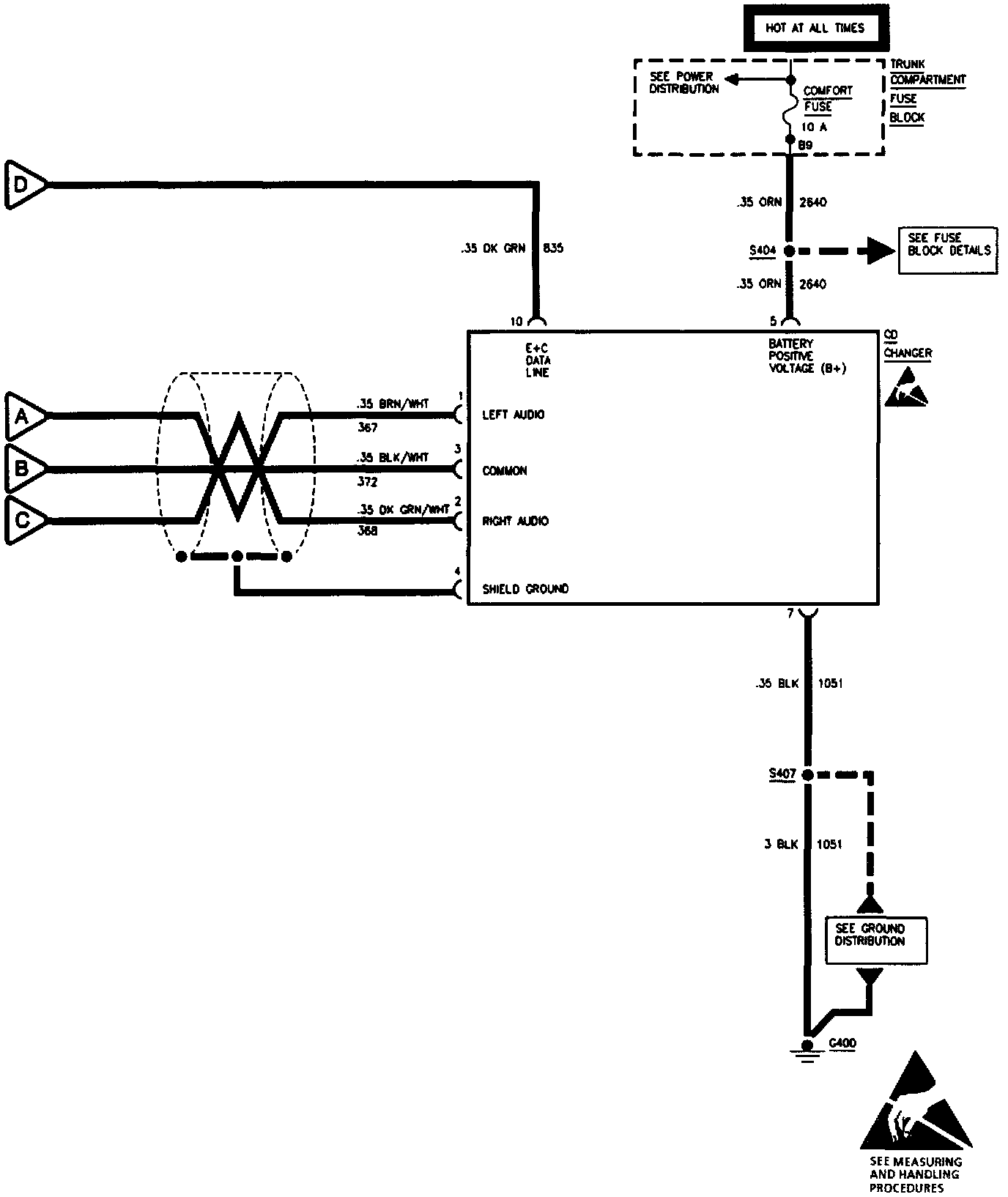

Audio Systems: With Active Audio System UQ6 (Part 2 Of 3):

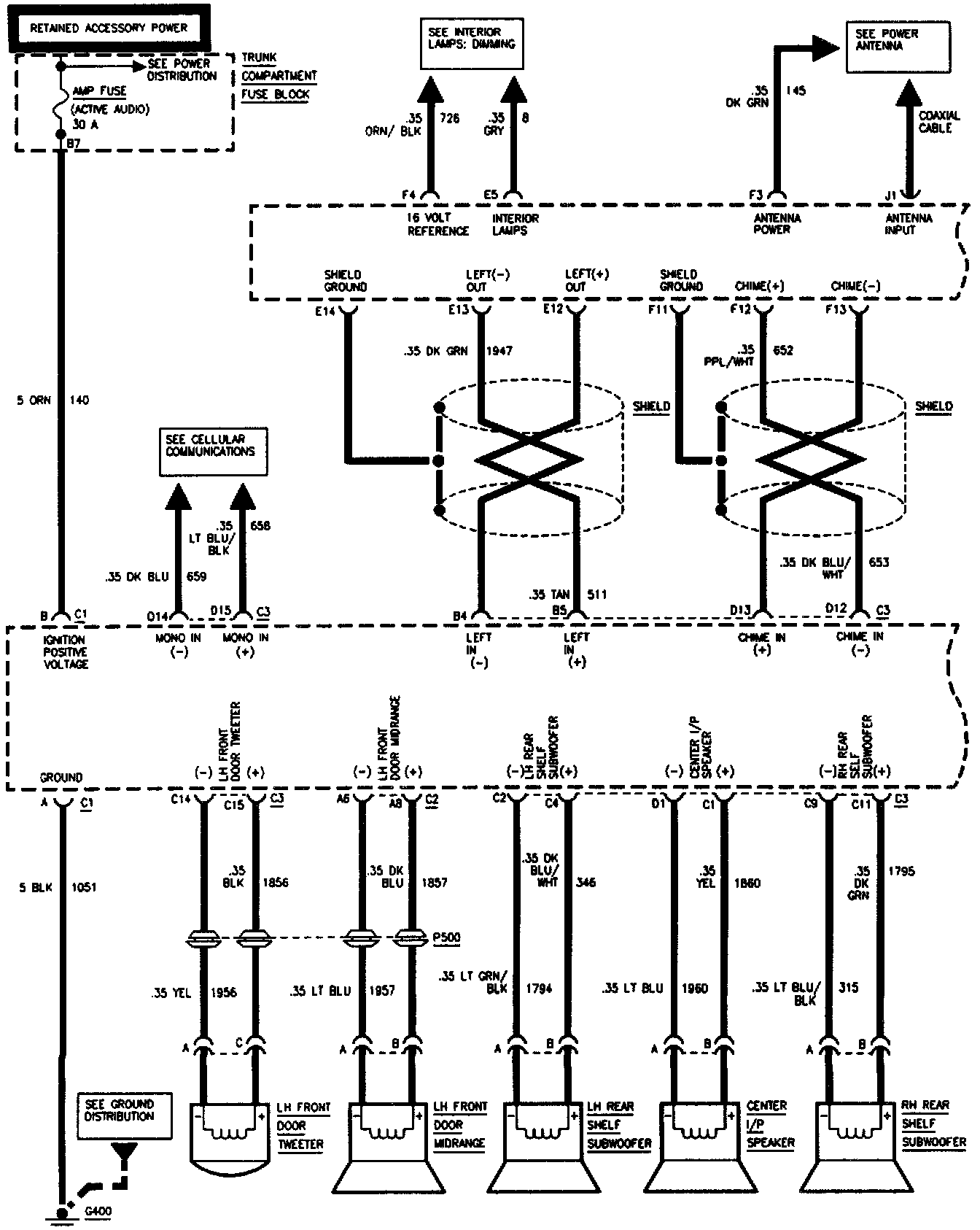

Audio Systems: With Active Audio System UQ6 (Part 3 Of 3):
