Home >> Cadillac >> 1997 >> DeVille Concours V8-4.6L VIN 9 >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> System Diagram >> Interior Lamps >> Interior Lamps Dimming >> Digital Cluster

Digital Cluster

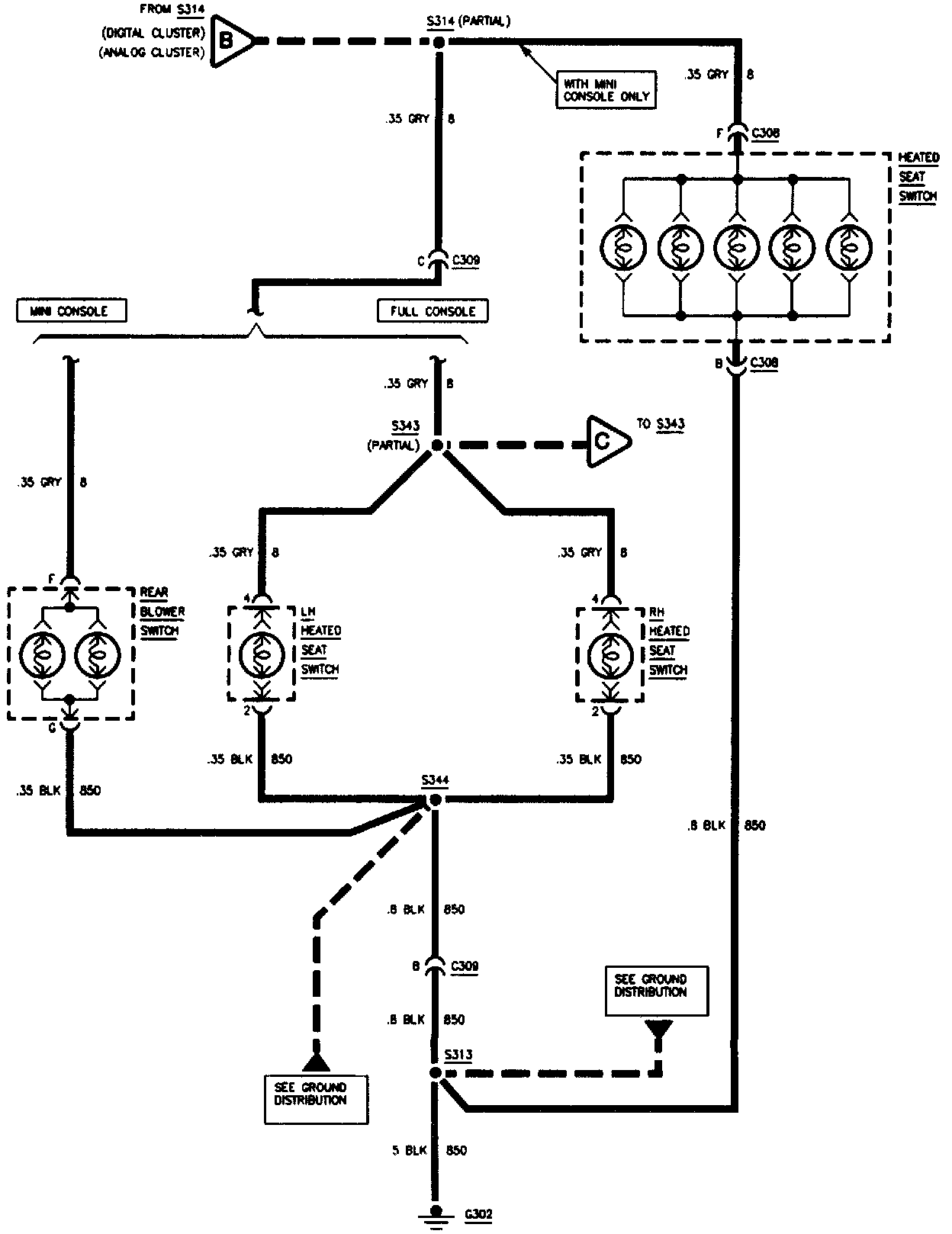

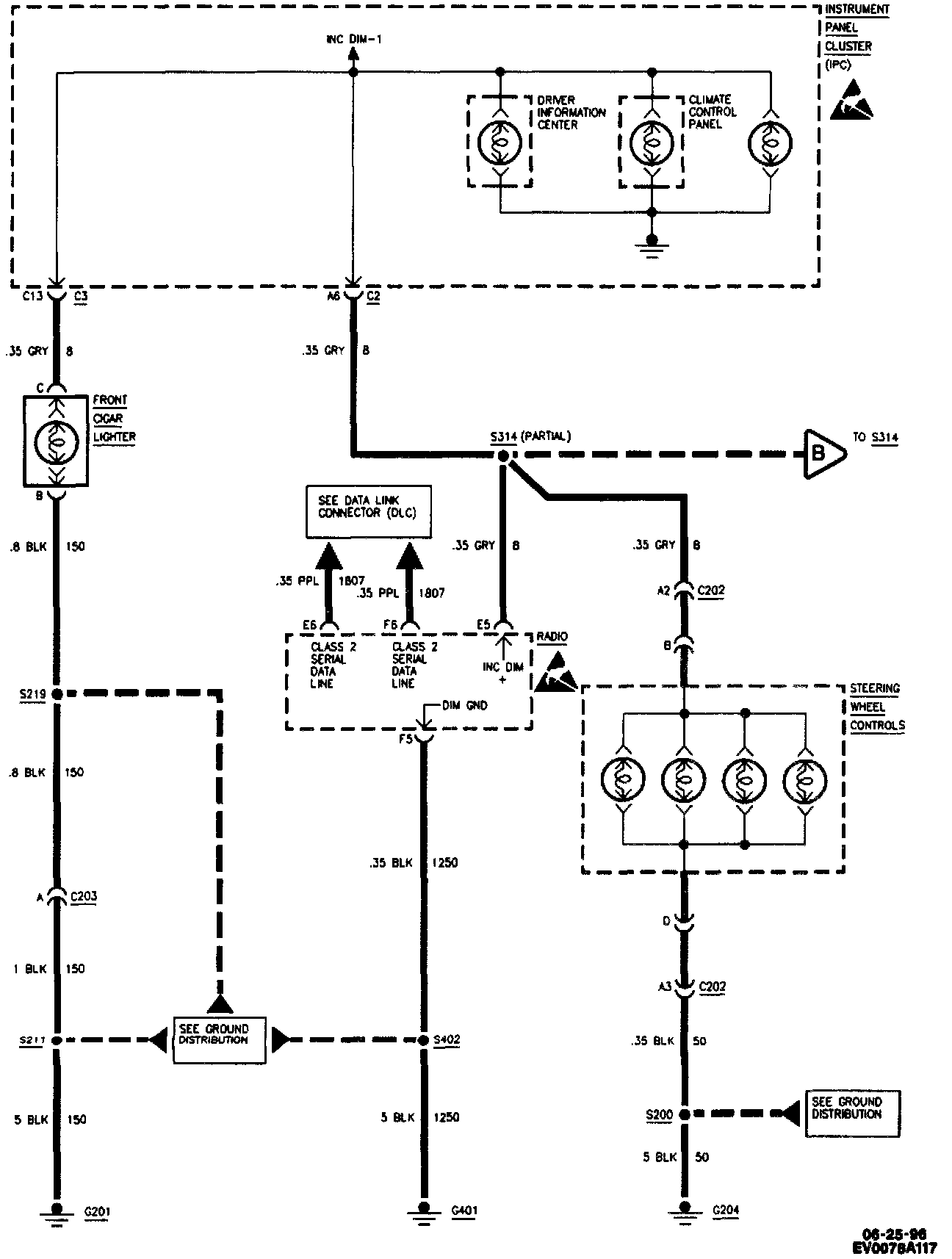

Interior Lamps Dimming: [Digital Cluster (Seville Only)]:



Interior Lamps: Dimming:
