Home >> Cadillac >> 1997 >> DeVille Concours V8-4.6L VIN 9 >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> System Diagram >> Interior Lamps >> Console Cigar Lighters (With D55)

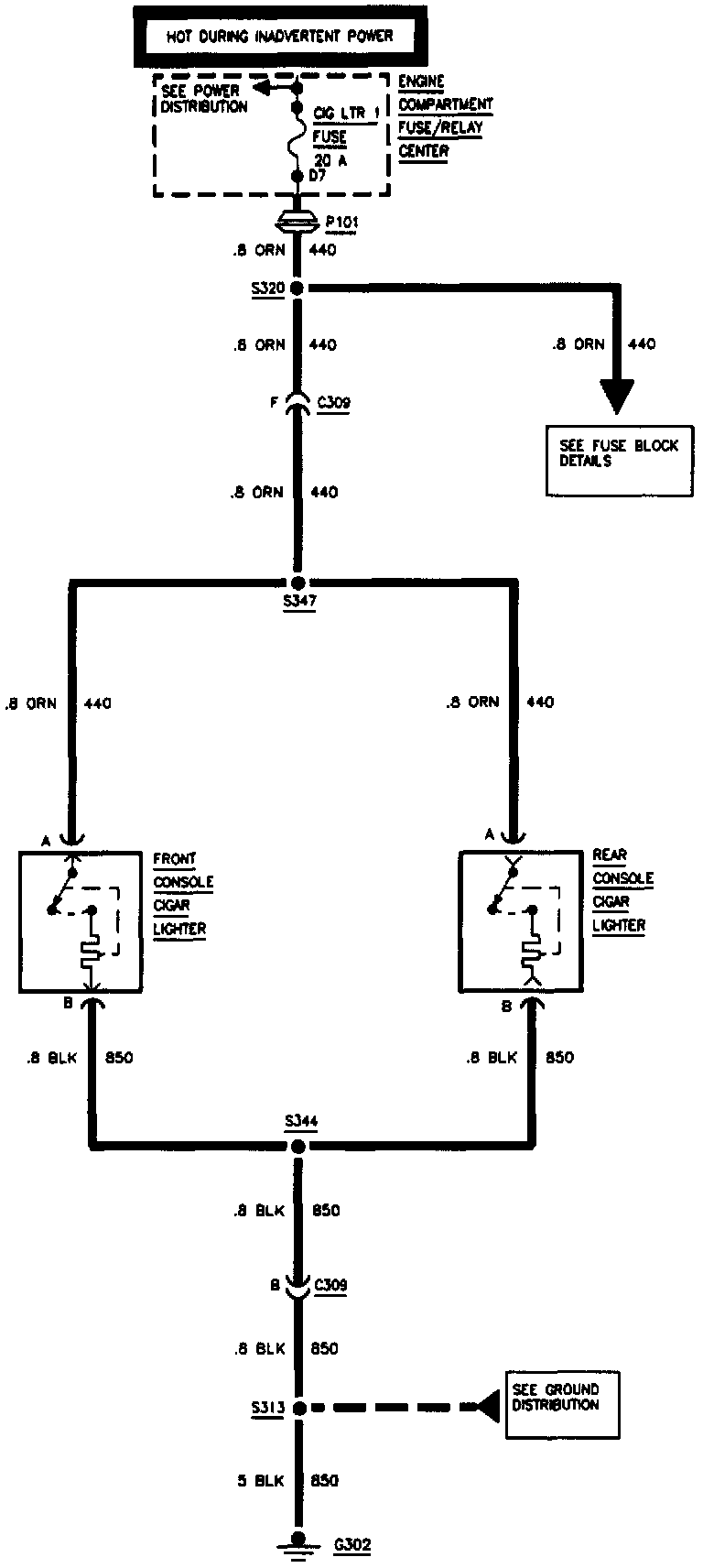

Console Cigar Lighters (With D55)

Interior Lamps: Console Cigar Lighters (With D55):
