Home >> Cadillac >> 1997 >> DeVille Concours V8-4.6L VIN 9 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Heating and Air Conditioning >> System Diagram >> Heater and A/C Programmer (ACM) >> C2

C2

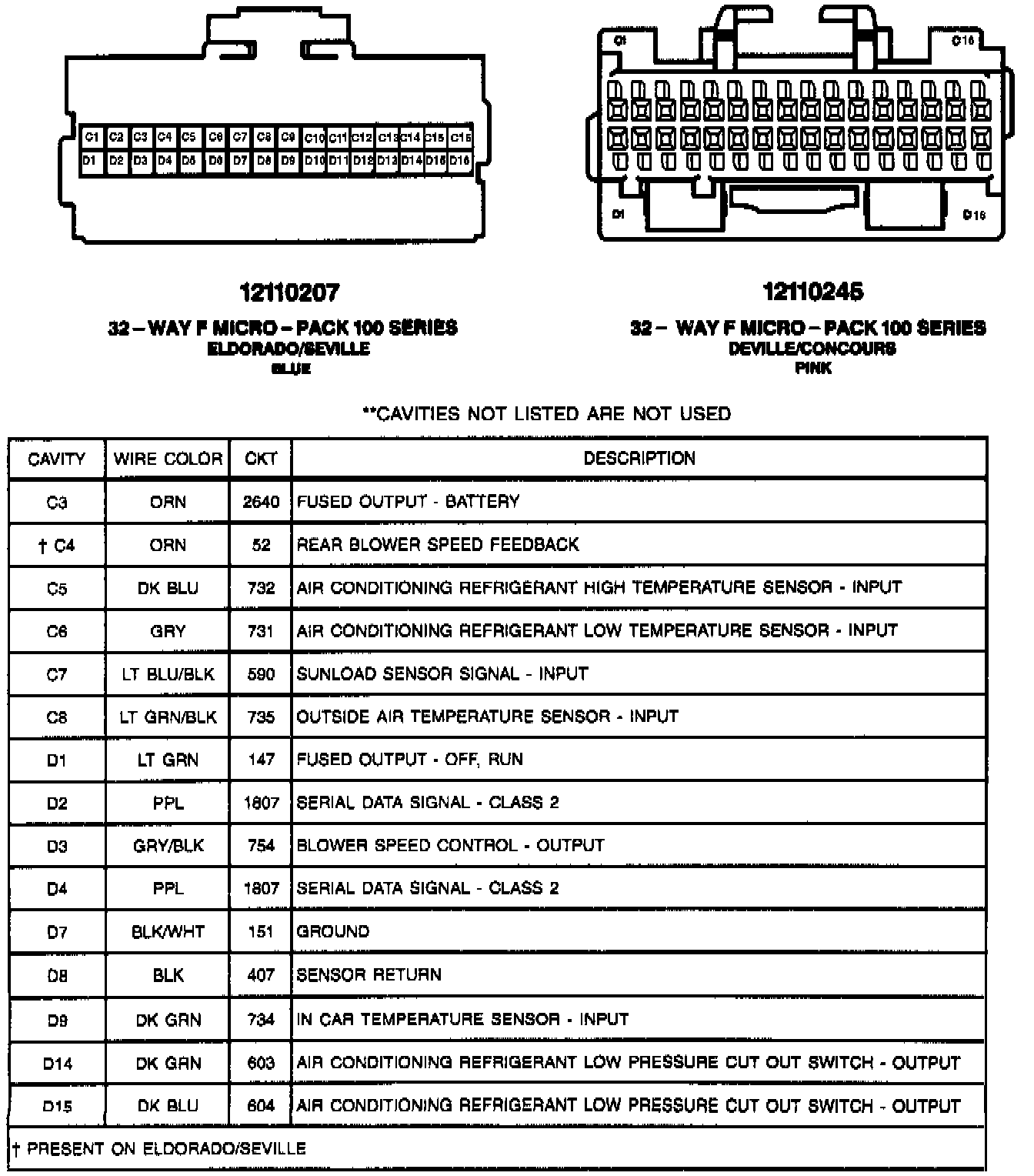

Heater And A/C Programmer (ACM) C2:
