Trunk Compartment #1 Micro Relay Center
Trunk Compartment #1 Micro Relay Center

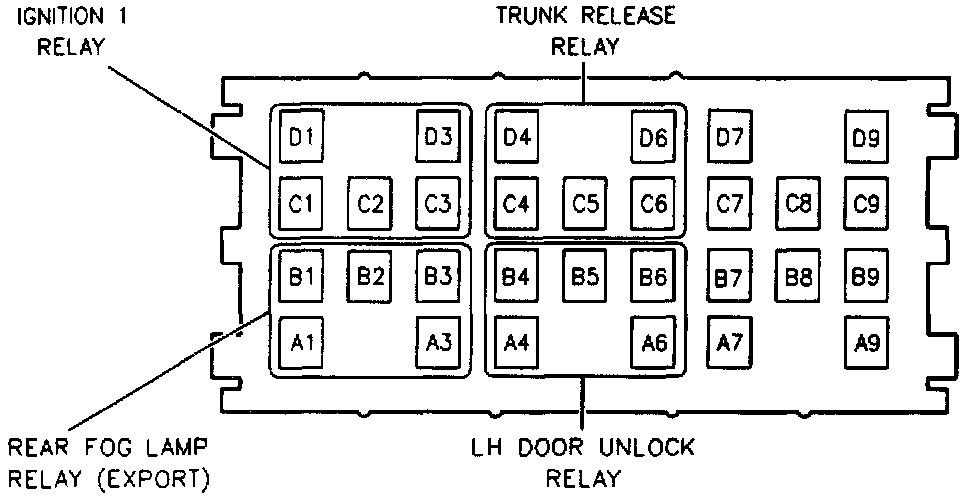

Trunk Compartment #1 Micro Relay Center:

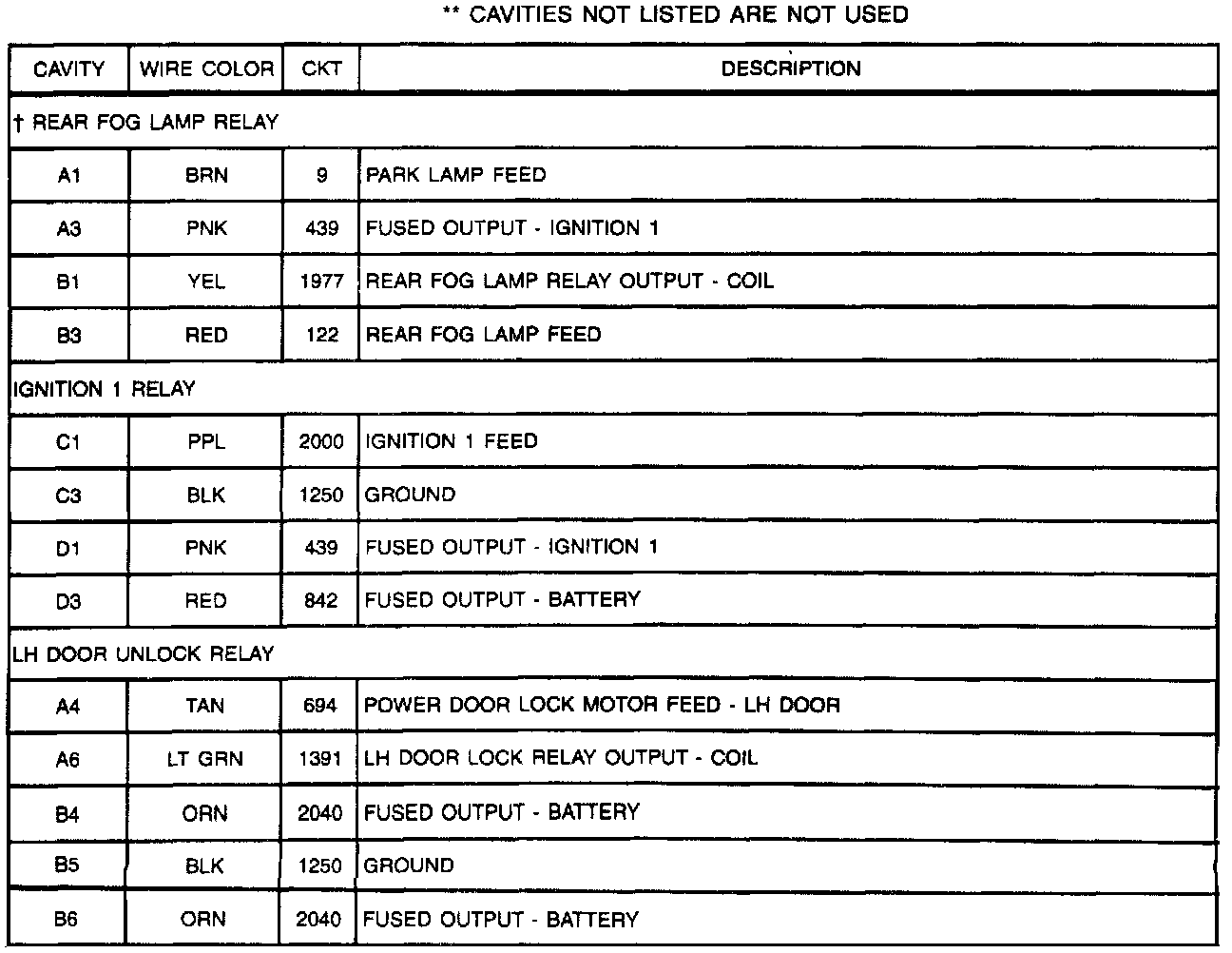

Trunk Compartment #1 Micro Relay Center (Part 1 Of 2):

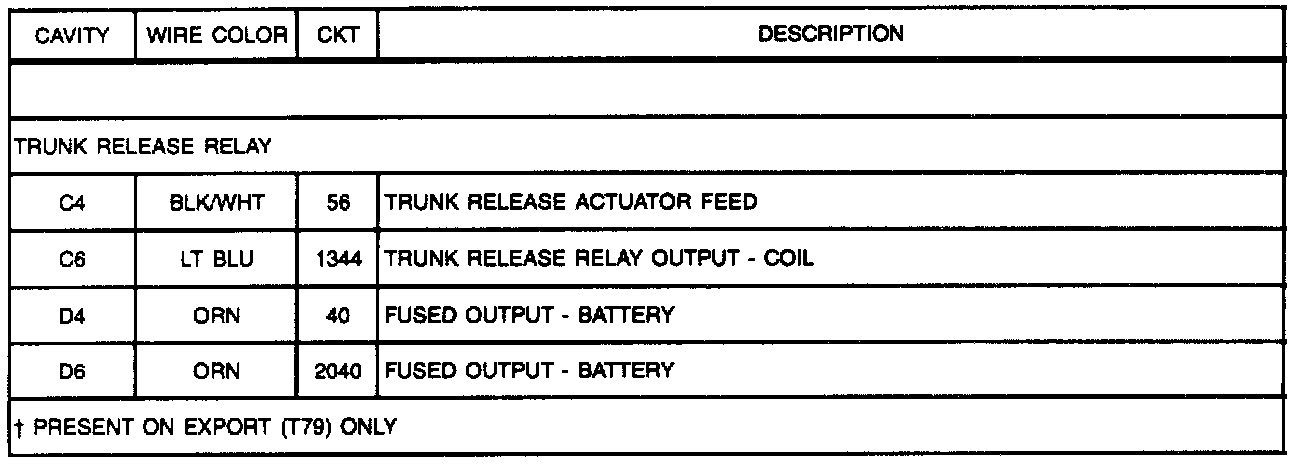

Trunk Compartment #1 Micro Relay Center (Part 2 Of 2):
