Home >> Cadillac >> 1997 >> DeVille Concours V8-4.6L VIN 9 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Antilock Brakes / Traction Control Systems >> Electronic Brake Control Module >> Electronic Brake and Traction Control Module (EBTCM)

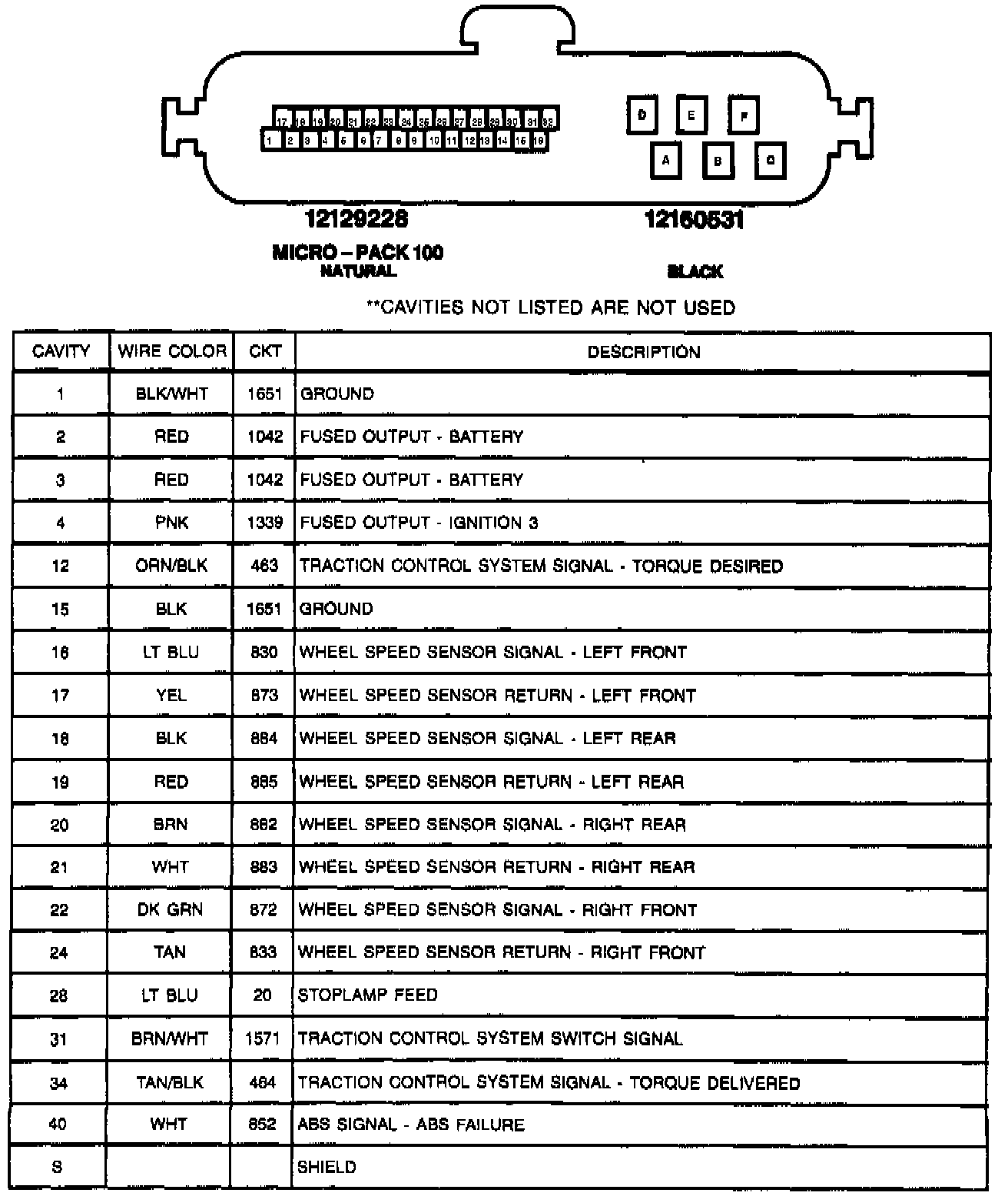

Electronic Brake and Traction Control Module (EBTCM)

Electronic Brake And Traction Control Module (EBTCM):
