Home >> Cadillac >> 1997 >> DeVille Concours V8-4.6L VIN 9 >> Repair and Diagnosis >> Diagrams >> Components >> Modules >> Seat Relay Module (LH & RH)

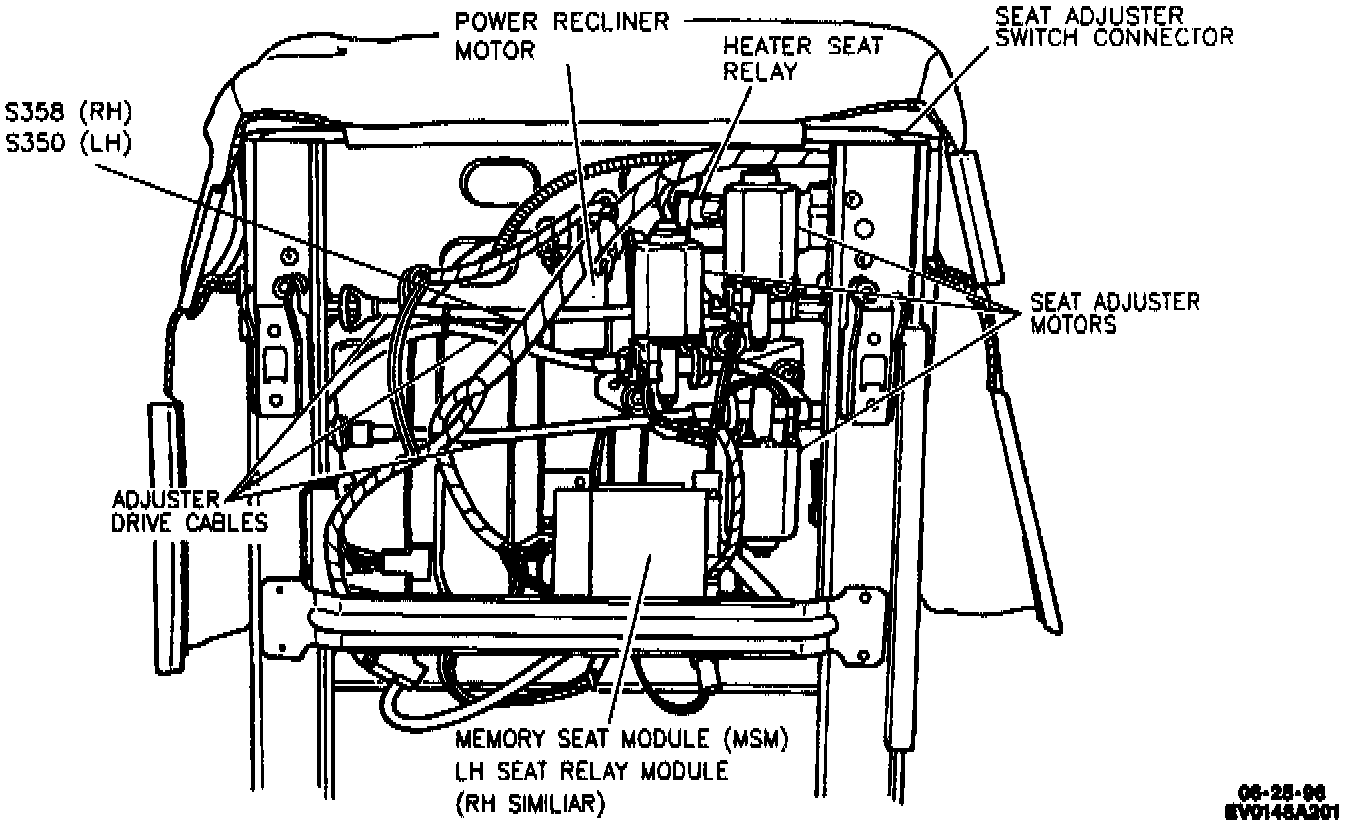

Seat Relay Module (LH & RH)

LH Front Seat, RH Front Similar:
