Home >> Cadillac >> 1997 >> DeVille Concours V8-4.6L VIN 9 >> Repair and Diagnosis >> Body and Frame >> Seats >> Diagrams >> Electrical Diagrams >> Power Seats >> RH

RH

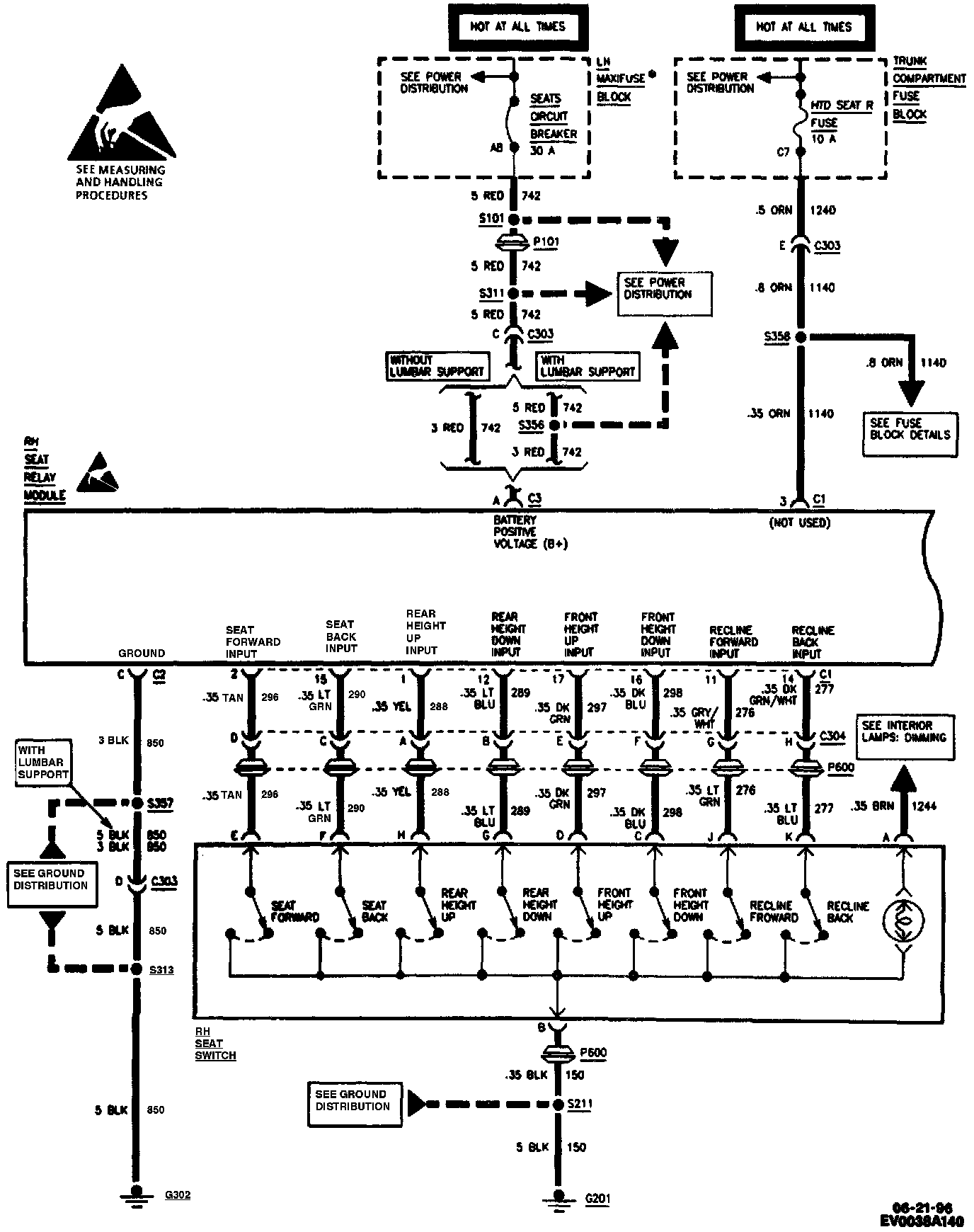

Power Seats: RH (Part 1 Of 2):

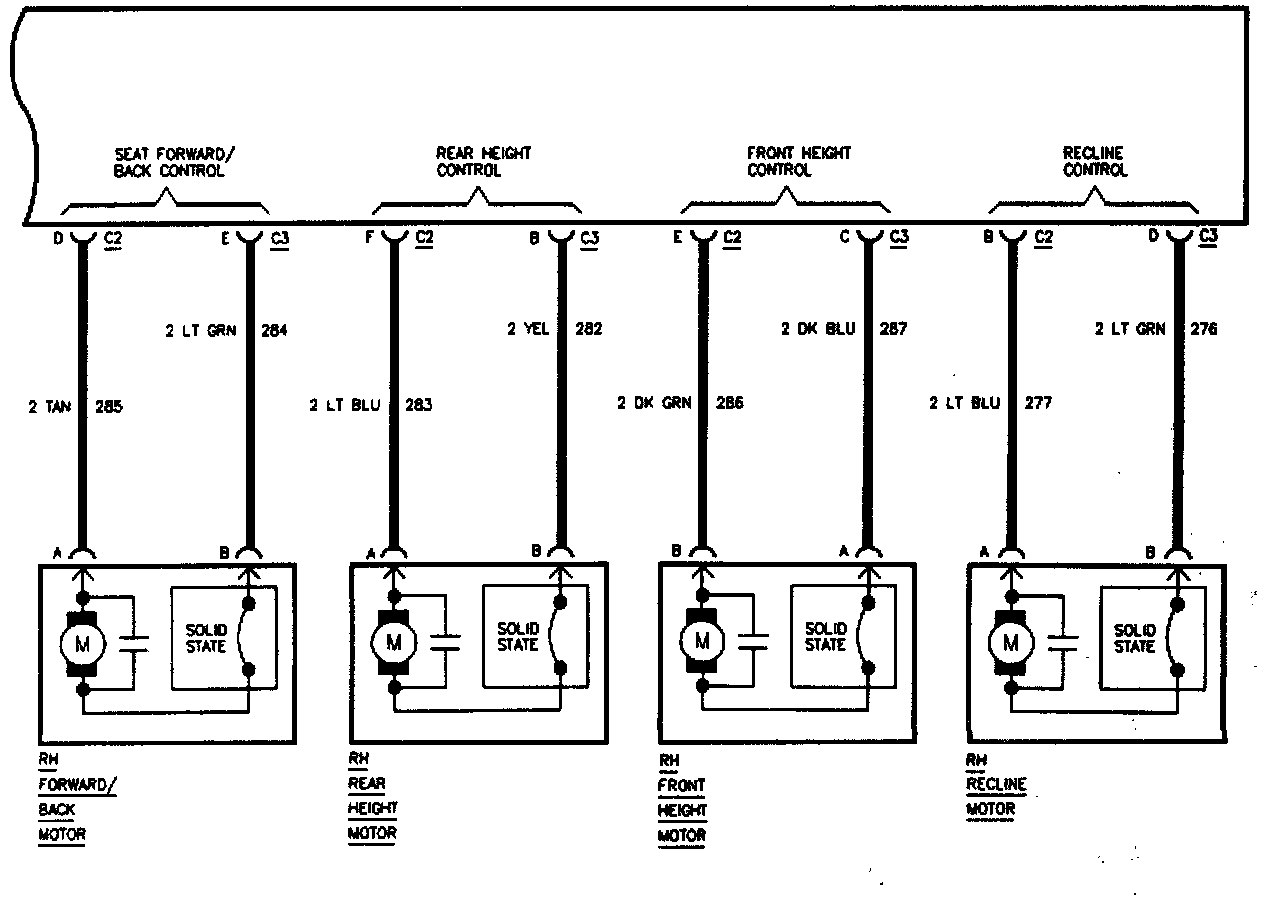

Power Seats: RH (Part 2 Of 2):
