Home >> Cadillac >> 1997 >> DeVille Concours V8-4.6L VIN 9 >> Repair and Diagnosis >> Body and Frame >> Seats >> Diagrams >> Electrical Diagrams >> Power Seats/Mirrors Memory >> Seat Switch

Seat Switch

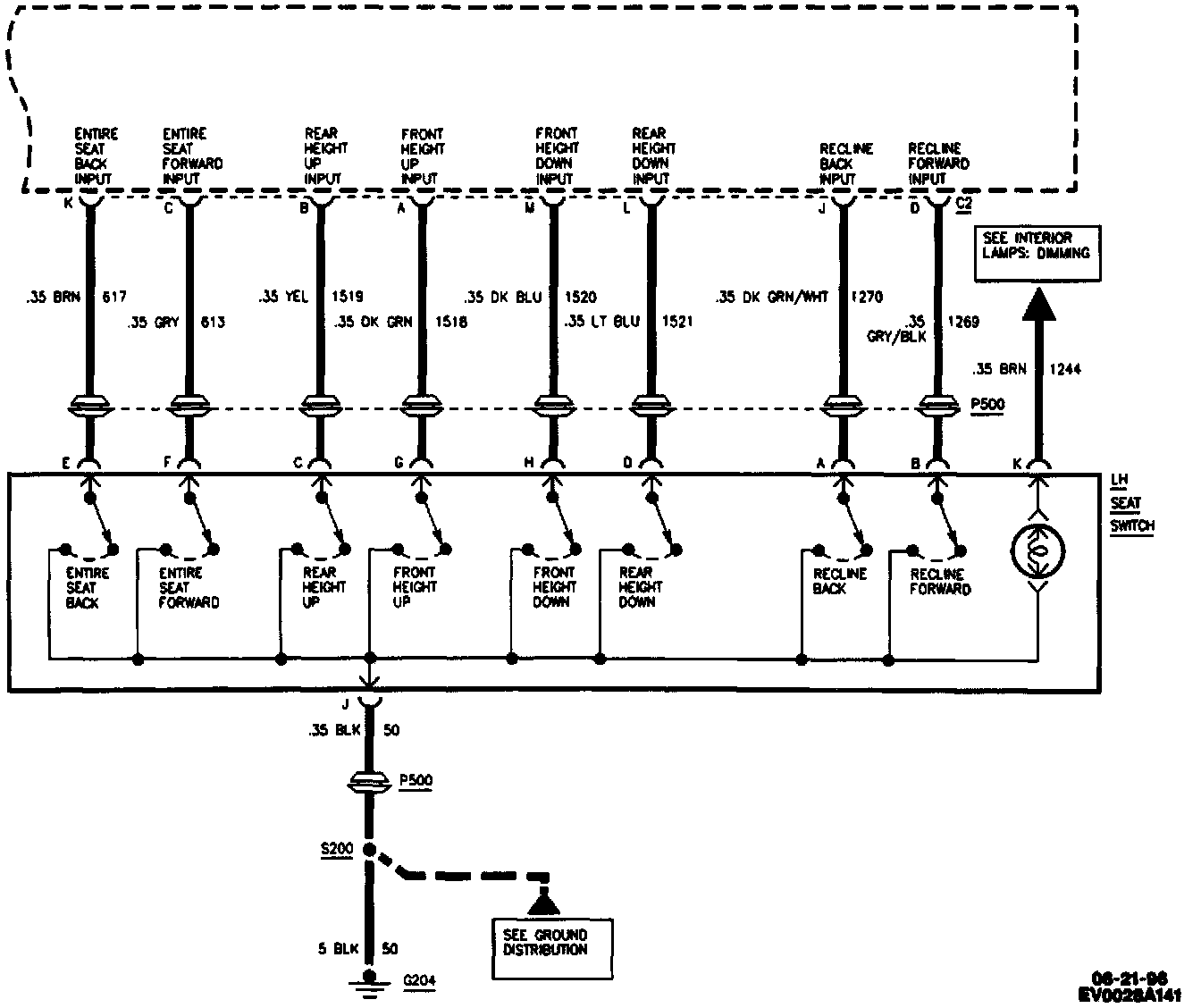

Power Seat/Mirrors: Memory (Seat Switch):
