Home >> Cadillac >> 1997 >> DeVille Concours V8-4.6L VIN 9 >> Repair and Diagnosis >> Body and Frame >> Seats >> Diagrams >> Electrical Diagrams >> Power Seats/Mirrors Memory >> Lumbar Switch/Motors

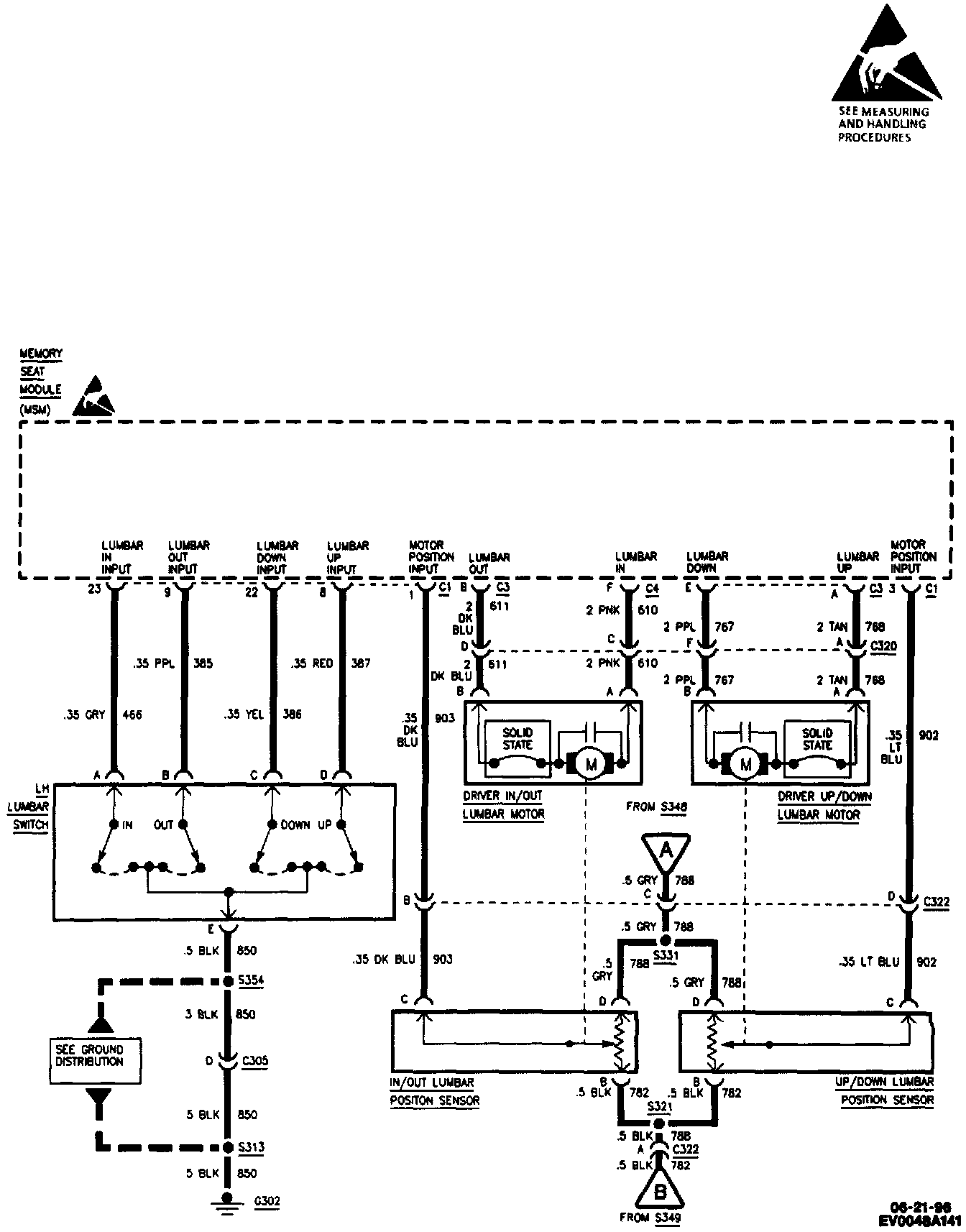

Lumbar Switch/Motors

Power Seat/Mirrors: Memory (Lumbar Switch/Motors):
