Steering Column Opening Bracket

STEERING COLUMN OPENING BRACKET

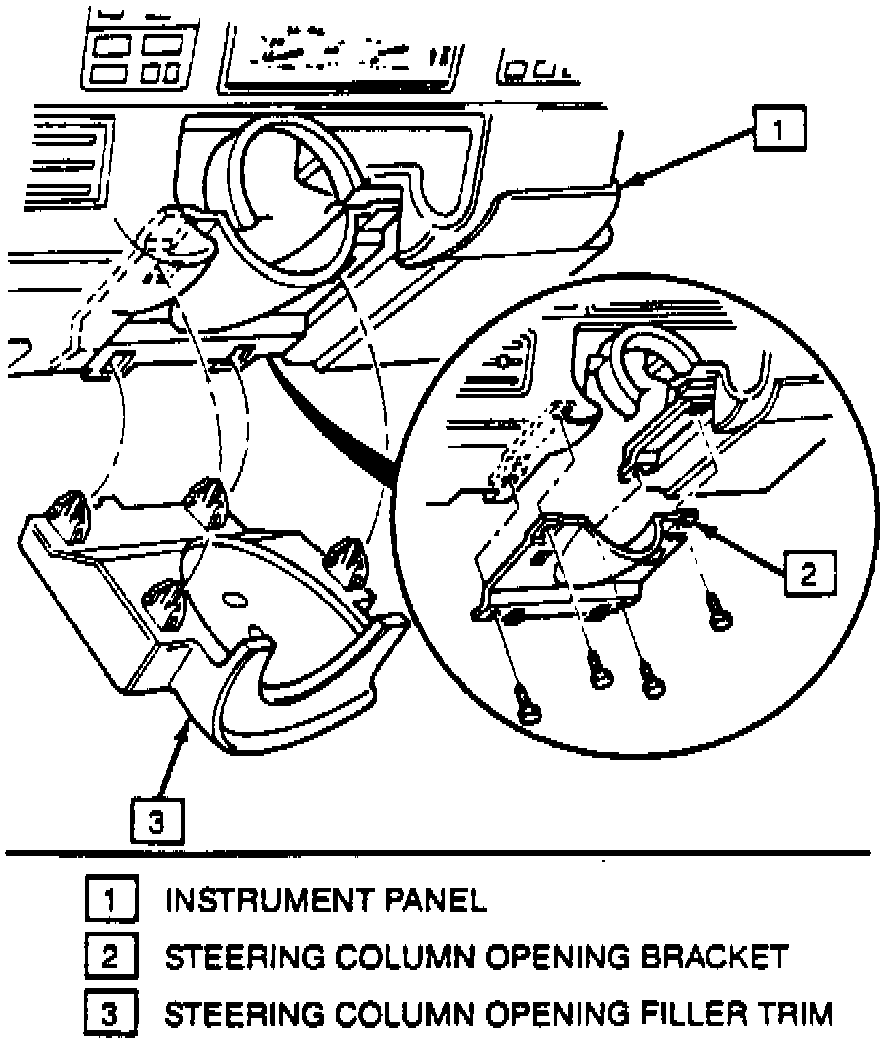

Fig. 24 Steering Column Opening Bracket & Filler Trim Removal:

REMOVE OR DISCONNECT
1. Filler trim. Refer to Steering Column Opening Filler Trim.
2. Four bolts retaining bracket and bracket from vehicle.

IMPORTANT: The steering column opening bracket should be replaced, not repaired. if there is any visible damage.

INSTALL OR CONNECT
1. Steering column opening bracket to vehicle and secure with four bolts.
2. Filler trim.
