Compact Disc Changer

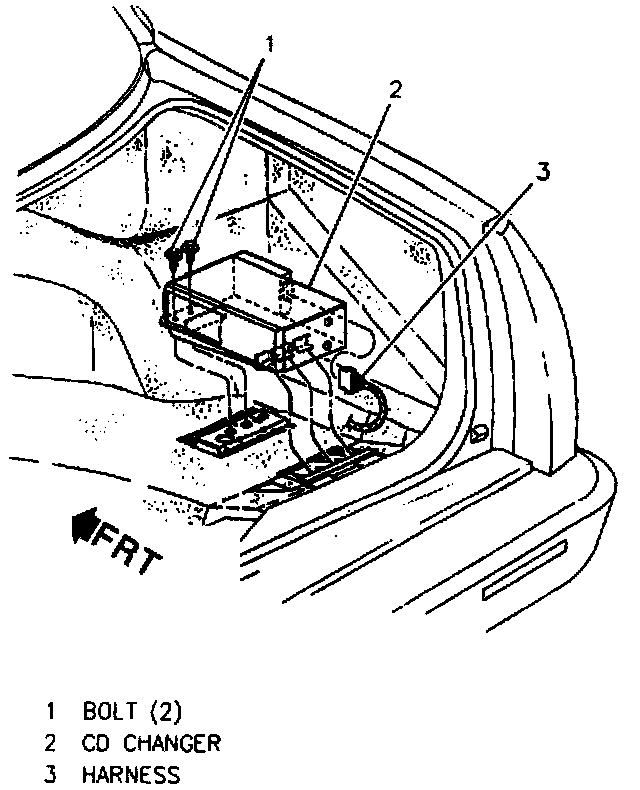

CD Changer Mounting:

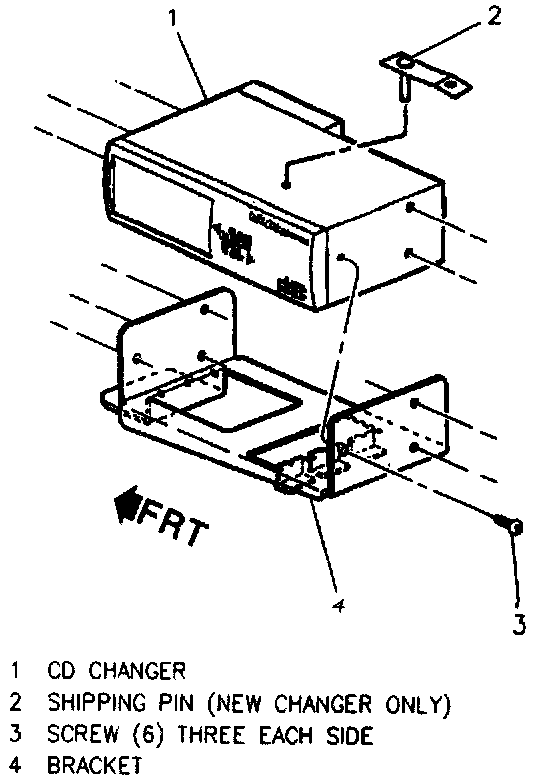

CD Changer Mounting Bracket:

REMOVE OR DISCONNECT
1. Electrical connector three from changer.
2. Two bolts two from floor bracket at front of changer.
3. Slide forward to remove.

INSTALL OR CONNECT
1. Slide tabs on bracket into slots in floor.
2. Two bolts two to front of bracket into floor.
3. Electrical connector three.
