Amplifier Active Audio System and RIM Radio Interface Module

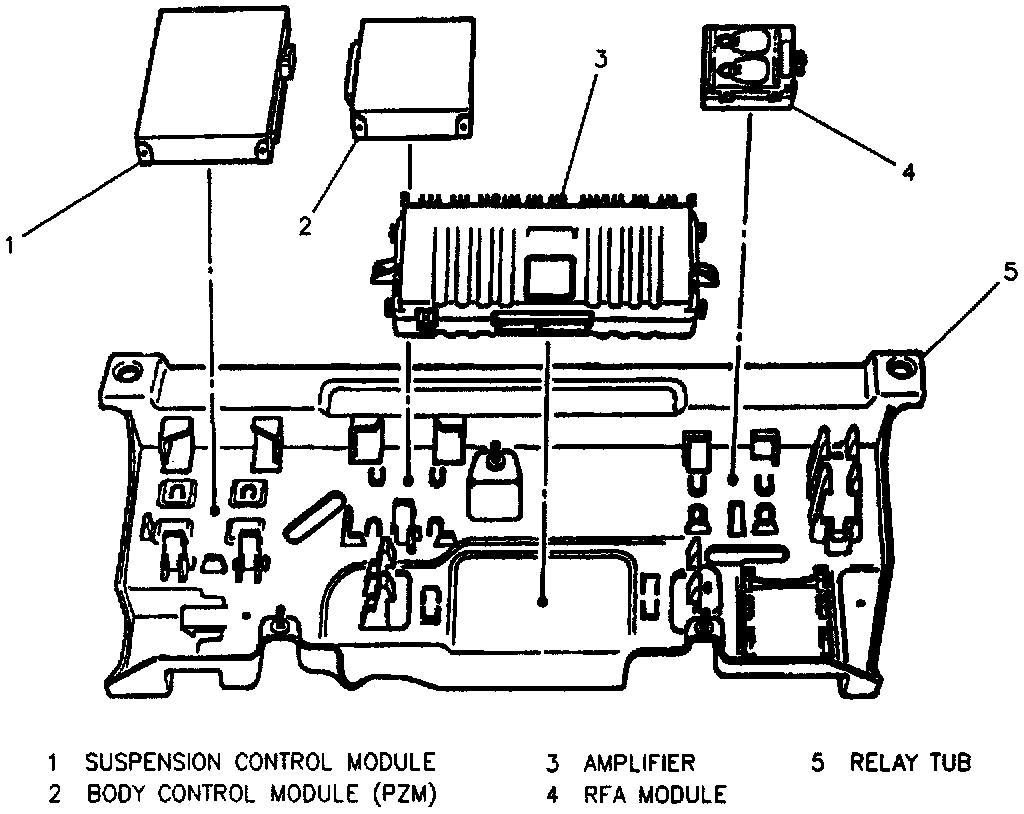

Active Audio System (AAS) Amplifier And Radio Interface Module (RIM):

REMOVE OR DISCONNECT
1. Electronics Bay Board.
2. Pull out on retainers holding module to bay board board.
3. Electrical connectors from amplifier.

INSTALL OR CONNECT
1. Module onto tub.
2. Electrical connectors to module.
3. Electrical Bay Board.
