P0713

CIRCUIT DESCRIPTION

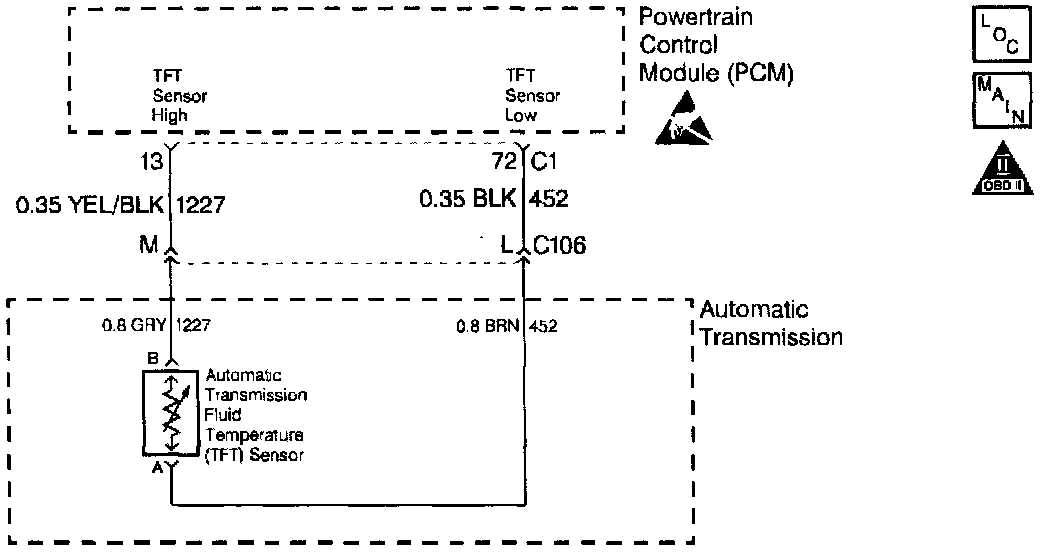

The Automatic Transmission Fluid Temperature (TFT) sensor is a negative coefficient thermistor whose resistance value changes based on temperature. The Powertrain Control Module (PCM) provides a 5 volt reference to the sensor on circuit 1227. A low fluid temperature or open circuits 1227 or 452 result in high signal voltage. The TFT operating range is -40 to +151°C (-40 to +305°F).

If the PCM detects a continuous open or a short to power on the TFT sensor circuit, then DTC P0713 sets. DTC P0713 is a Type D DTC.

CONDITIONS FOR SETTING THE DTC

^ The PCM detects a reading of -40°C (-40°F) or less (5.04 volts or greater) for 6 seconds.
^ The engine is running.
^ The vehicle speed is more than 16 km/h (10 mph) for 5 minutes.
^ The engine coolant temperature is greater than -25°C (-13°F).

ACTION TAKEN WHEN THE DTC SETS

^ If any engine coolant temperature sensor codes set, the PCM substitutes a transmission fluid temperature default value of 132°C (269°F).
^ If the engine coolant temperature is greater than 115°C (239°F), the PCM substitutes a transmission fluid temperature default value of 132°C (269°F). This enables Transmission Hot Mode. The transmission remains in Hot Mode until the engine coolant temperature drops below 110°C (230°F).
^ If the engine run time is less than 3 minutes, the PCM substitutes the intake air temperature for the transmission fluid temperature value at ignition ON.
^ If the engine coolant temperature is 45-115°C (113-239°F), the transmission fluid default temperature equals ECT-10°C when the intake air temperature is less than 27°C (81°F) at ignition ON. If the intake air temperature is greater than 27°C (81°F) at ignition ON, the transmission fluid default temperature equals ECT+10°C.
^ If engine run time is greater than 3 minutes and the engine coolant temperature is less than 45°C (113°F), the PCM substitutes a transmission fluid temperature default value of 12°C (54°F).

CONDITIONS FOR CLEARING THE DTC

^ A scan tool can clear the DTC from the PCM history. The PCM clears the DTC from the PCM history if the vehicle completes 40 warm-up cycles without a failure reported.
^ The PCM cancels the DTC default actions when the fault no longer exists and the ignition is OFF long enough in order to power down the PCM.

DIAGNOSTIC AIDS

^ Inspect the wiring for poor electrical connections at the PCM. Inspect the wiring for poor electrical connections at the transmission 20-way connector. Inspect the wiring for poor electrical connections at the Automatic Transmission Fluid Temperature sensor connector. Look for the following problems:

- A bent terminal
- A backed out terminal
- A damaged terminal
- Poor terminal tension
- A chafed wire

^ When diagnosing for an intermittent open, massage the wiring harness while watching the test equipment for a change.

TEST DESCRIPTION

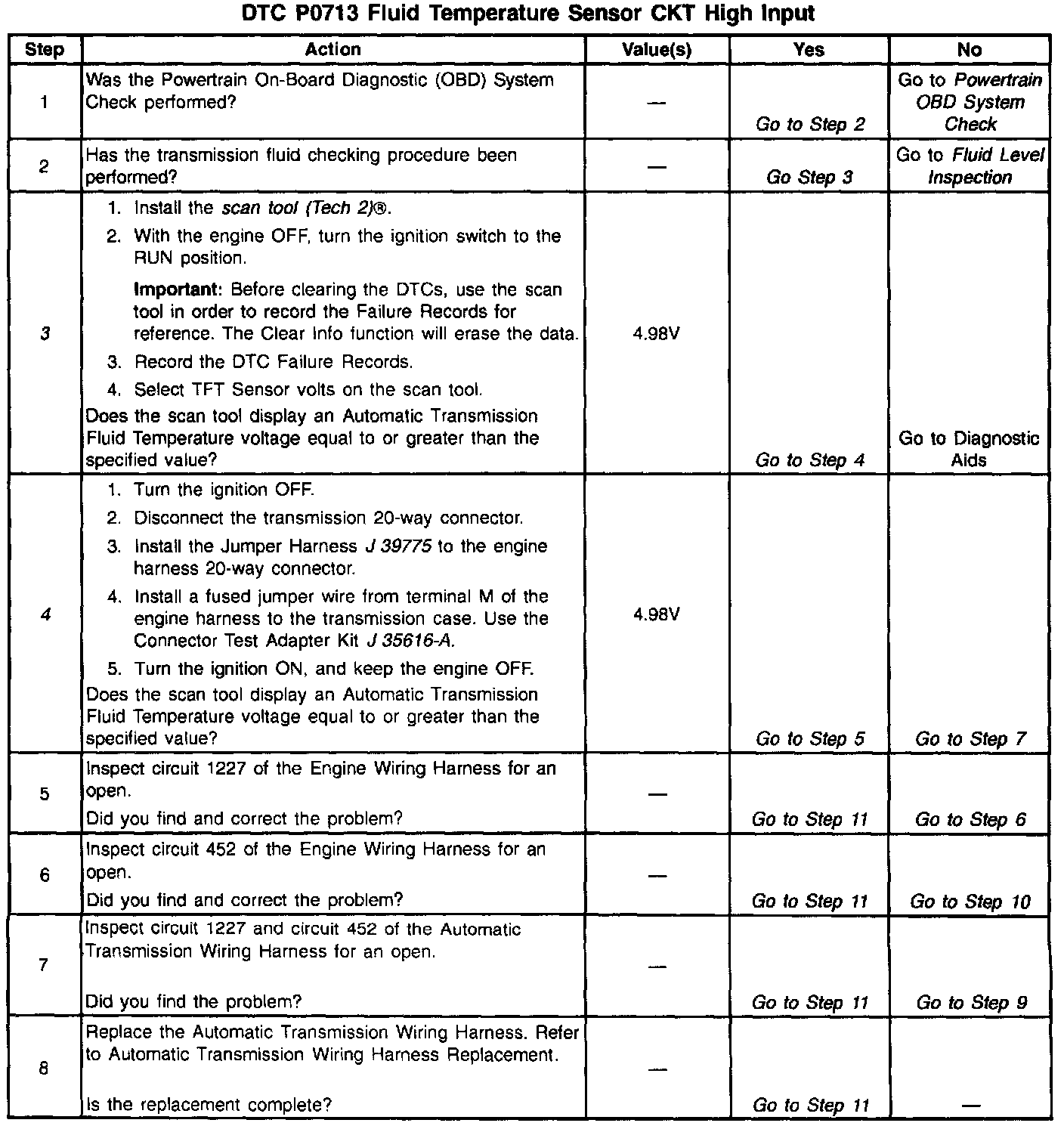

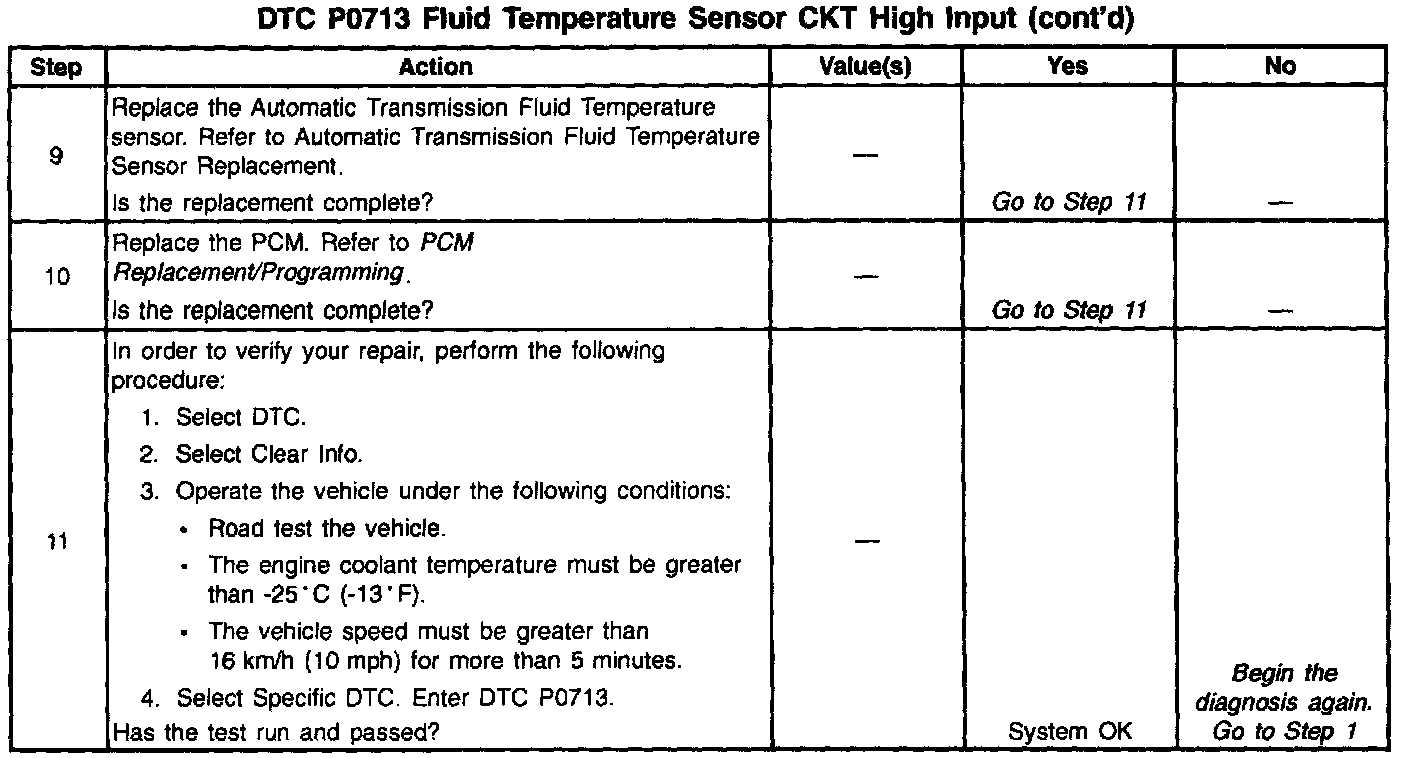

The numbers below refer to the step numbers on the diagnostic table.

3. If the display does not indicate an Automatic Transmission Fluid Temperature Sensor voltage greater than 4.98 volts, inspect the connectors and the terminal for intermittent problems.

Important: After 7 seconds, the scan tool will display a default temperature.

4. This step isolates the Automatic Transmission Wiring Harness by using a fused jumper from terminal M to the transmission case. Inspect Engine Wiring Harness circuit 1227 and circuit 452 for an open.
