P0117

CIRCUIT DESCRIPTION

The Engine Coolant Temperature sensor is a thermistor, a sensor whose resistance varies with temperature. The ECT sensor signal is on CKT 410 and sensor ground on CKT 808. As the temperature of the sensor increases, resistance decreases. A high coolant temperature will result in low signal voltage on CKT 410. DTC P0117 sets because the coolant temperature cannot be greater than 147°C (297°F) when the IAT is less than 100°C (212°F) or the vehicle has been driving long enough to cool the engine to less than 147°C (297°F).

CONDITIONS FOR SETTING THE DTC

Test Conditions

^ DTCs P0112 and P0113 not set.
^ IAT temperature of 100°C (212°F) or less.
OR
^ DTCs P0122 and P0123 not set.
^ Engine running with throttle angle between 5 and 35 degrees for at least 3.5 minutes.

Failure Condition

The ECT sensor reading is 147°C (297°F) or more.

ACTION TAKEN WHEN THE DTC SETS

^ PCM turns ON the SERVICE EMISSION SYSTEM message.
^ PCM uses the transaxle temperature sensor values in place of the engine coolant temperature sensor for the first 4.25 minutes of engine operation, and a value of 90°C (194°F) afterwards.
^ Transaxle shift adapts are maintained at current levels.
^ The PCM will illuminate the Malfunction Indicator Lamp (MIL) when the diagnostic runs and fails.
^ The PCM will record operating conditions at the time the diagnostic fails. This information will be stored in the Freeze Frame and Failure Records.

CONDITIONS FOR CLEARING THE MIL/DTC

^ The PCM will turn the MIL OFF after three consecutive drive trips that the diagnostic runs and does not fail.
^ A Last Test Failed (current) DTC will clear when the diagnostic runs and does not fail.
^ A History DTC will clear after forty consecutive warm-up cycles with no failures of any emission related diagnostic test.
^ PCM battery voltage is interrupted.
^ Using a Scan tool.

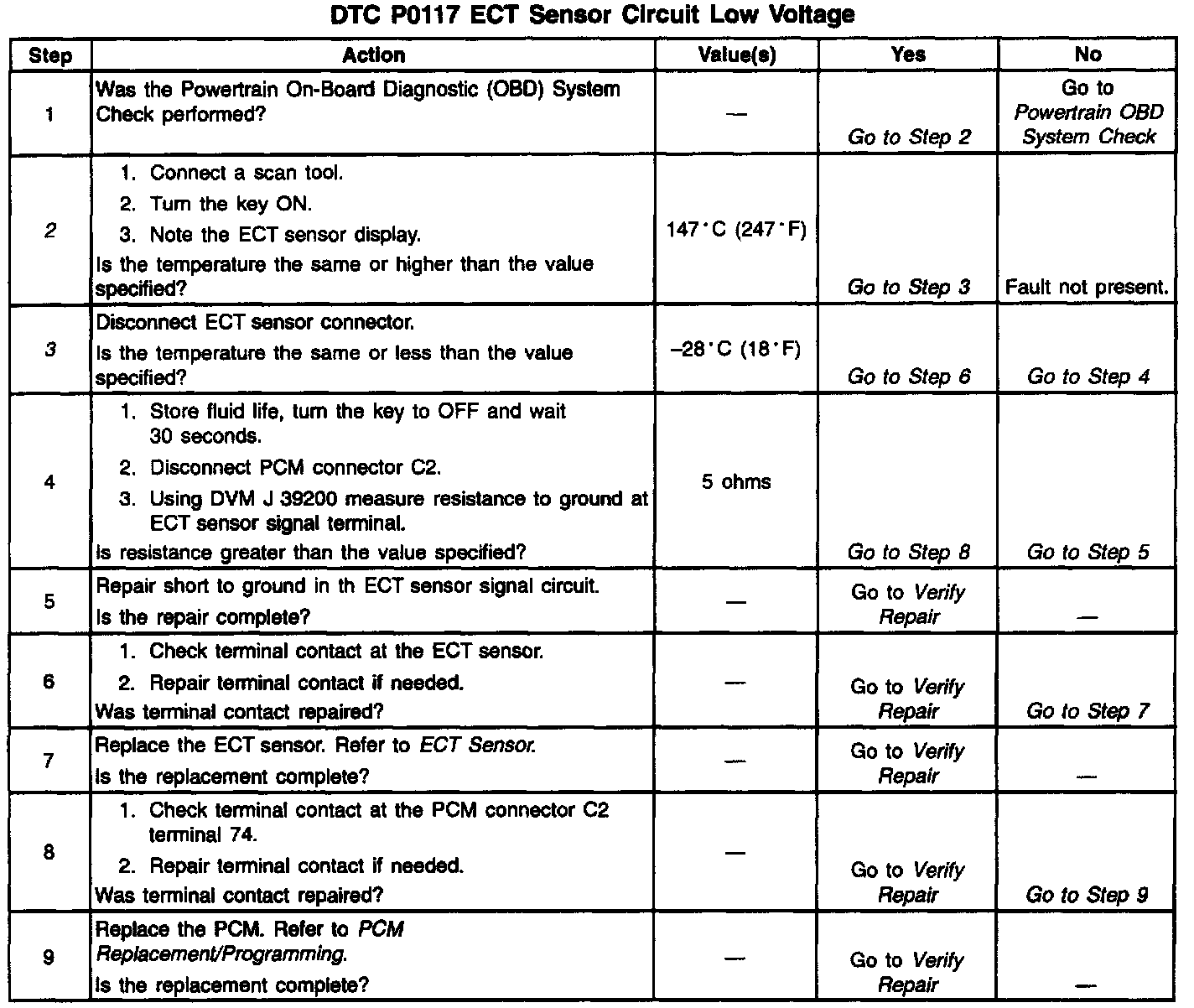

TEST DESCRIPTION

Number(s) below refer to the step number(s) on the Diagnostic Table.

2. With the ECT sensor or wiring shorted, ECT display will read 147°C (247°F) or greater.
3. If ECT display reads -29°C (-20°F) or less with ECT sensor disconnected, wiring is okay but ECT sensor must be shorted.
