ABS - Integrated Chassis Control

DTC C1298: PCM Indicated Class 2 Serial Data Link Malfunction:

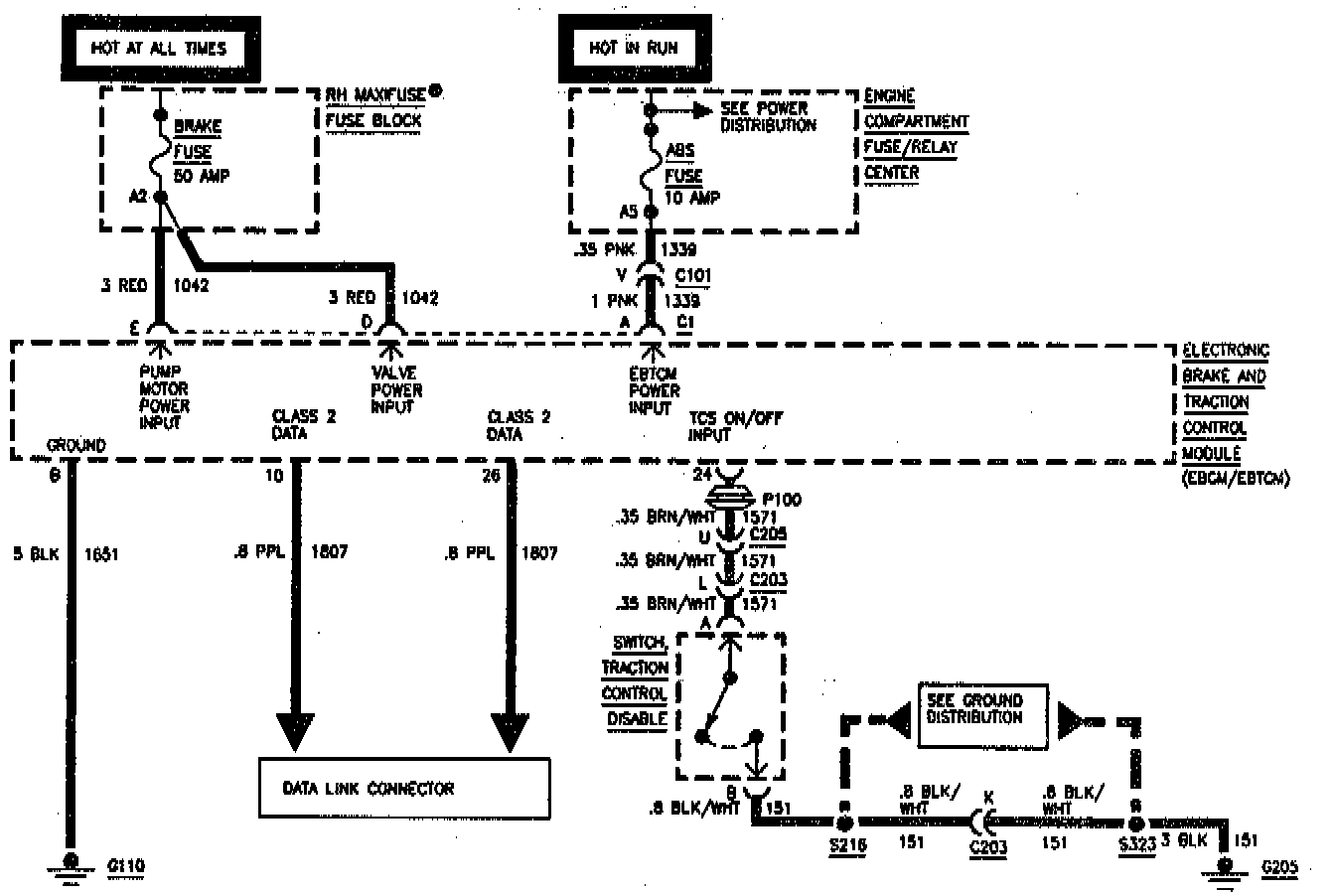

DTC C1298 Schematic:

CIRCUIT DESCRIPTION
The Class 2 serial data line allows all the modules on the line to transmit information to each other as needed. Each module is assigned an ID and all the information sent out on the line is assigned a priority by which it is received.

CONDITION FOR SETTING THE DTC
The DTC can be set any time the ignition is in the RUN position, and the PCM does not communicate with the EBTCM for 7 seconds.

ACTION TAKEN WHEN THE DTC SETS
A malfunction DTC is stored, TCS is disabled and the TRACTION CONTROL indicator lamp is fumed ON. ABS remains functional.

CONDITIONS FOR CLEARING THE DTC
Condition for DTC is no longer present and scan tool clear DTC function is used. Fifty start cycles have passed with no DTCs detected.

DIAGNOSTIC AIDS
It is very important that a thorough inspection of the wiring and connectors be performed. Failure to carefully and fully inspect wiring and connectors may result in misdiagnosis, causing part replacement with reappearance of the malfunction. Possible causes: Class 2 transmit fault on the EBTCM. Class 2 receiver fault on the PCM. Extreme Class 2 bus traffic. An intermittent malfunction is most likely caused by a poor connection, rubbed through wire insulation, or a wire that is broken inside the insulation.

TEST DESCRIPTION

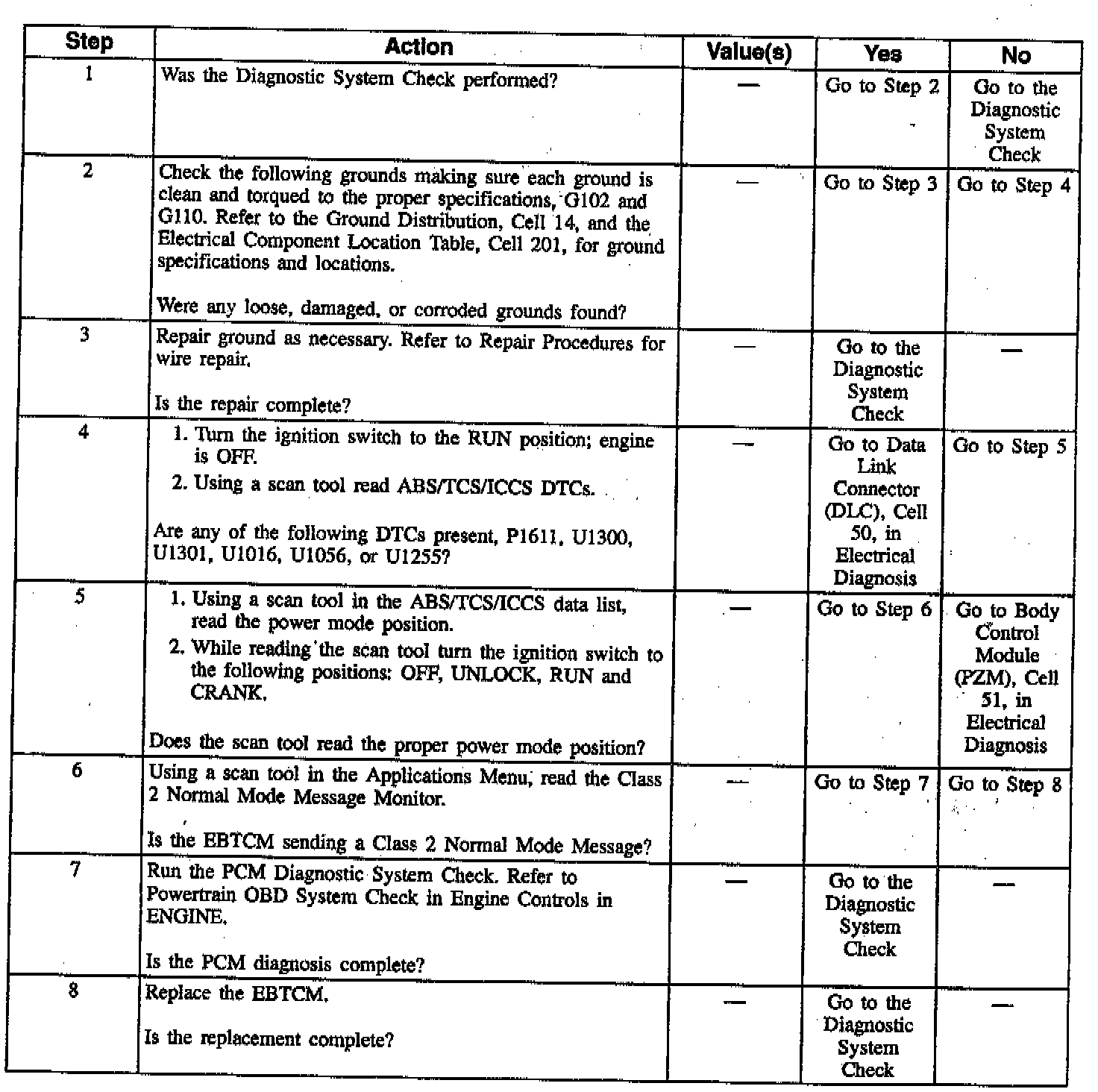

The numbers below refer to step numbers on the diagnostic table.
5. Checks to see if the Standard Body Module (SBM) is sending the proper power mode position message.
6. Checks to see if the EBTCM is sending out the required information on the Class 2 serial data link.
