B1171

CAUTION: Be careful when you handle a Sensing & Diagnostic Module (SDM). Do not strike or jolt the SDM. Before applying power to the SDM:
^ Remove any dirt, grease, etc. from the mounting surface.
^ Position the SDM horizontally on the mounting surface.
^ Point the arrow on the SDM toward the front of the vehicle.
^ Tighten all of the SDM fasteners and SDM bracket fasteners to the specified torque value.
Failure to follow the correct procedure could cause air bag deployment, personal injury, or unnecessary SIR system repairs.

NOTICE: When DTC B1125 has been set it is necessary to replace the inflatable restraint Sensing and Diagnostic Module (SDM). Setting DTC B1125 will also cause DTC B1171 to set. When a scan tool clear codes command is issued and the malfunction is still present, DTC B1125 and DTC B1171 will remain current. When a scan tool clear codes command is issued and the malfunction is no longer present, DTC B1125 will clear but DTC B1171 will remain current. Ensure that the short to voltage condition is repaired prior to installing a replacement SDM to avoid damaging the SDM.

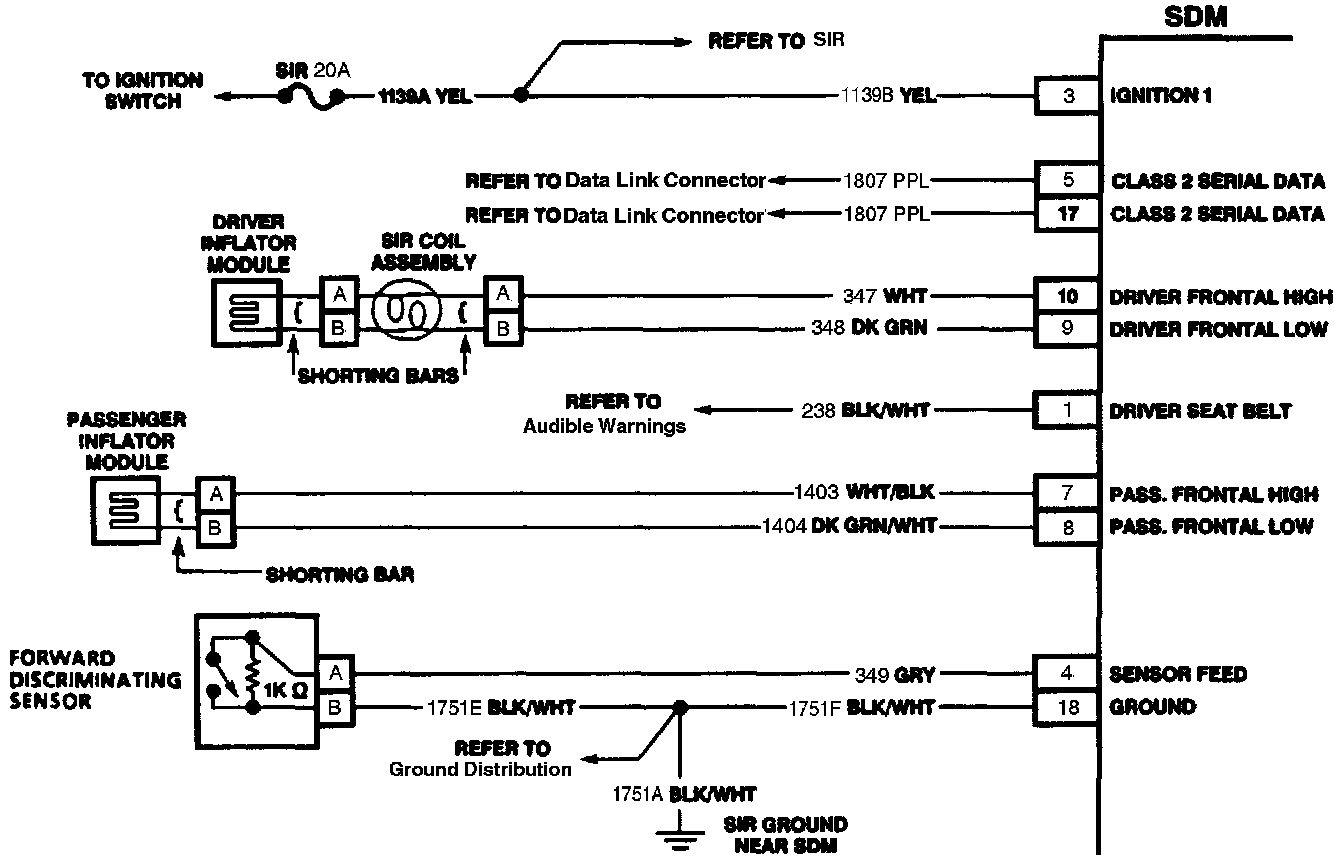

CIRCUIT DESCRIPTION

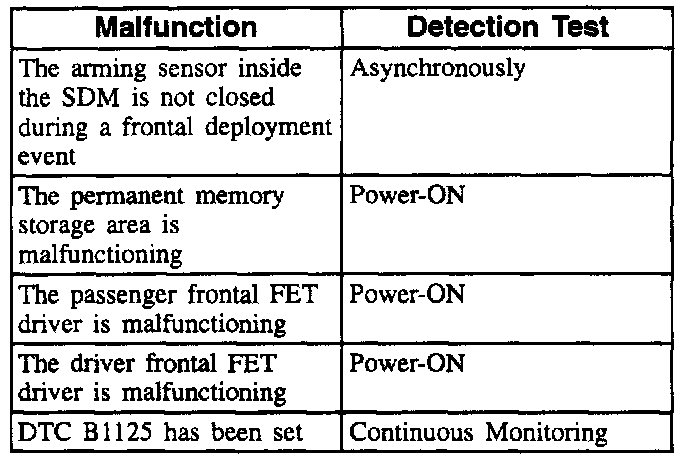

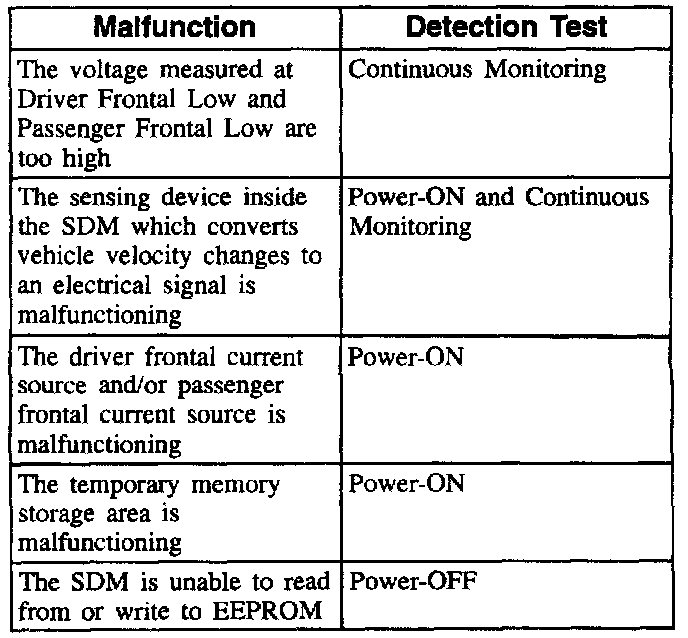

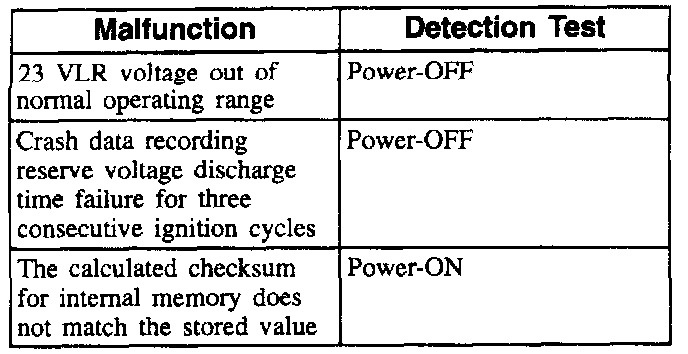

DTC B1171 is an indication of an internal inflatable restraint Sensing and Diagnostic Module (SDM) malfunction. DTC B1171 will set detection of any condition in the table below.

CONDITIONS FOR SETTING THE DTC










ACTION TAKEN WHEN THE DTC SETS
^ The SDM sets a diagnostic trouble code.
^ The SDM commands the Instrument Panel Cluster (IPC) to turn ON the AIR BAG warning lamp.

CONDITIONS FOR CLEARING THE DTC
^ Current DTC.
- The malfunction has not been detected for 500 milliseconds.
^ History DTC.
- You issue a scan tool CLEAR CODES command.
- 250 malfunction-free ignition cycles have occurred.

When you issue a scan tool CLEAR CODES command, some of the indicated malfunctions will only allow the AIR BAG warning lamp to go out briefly then come back ON.

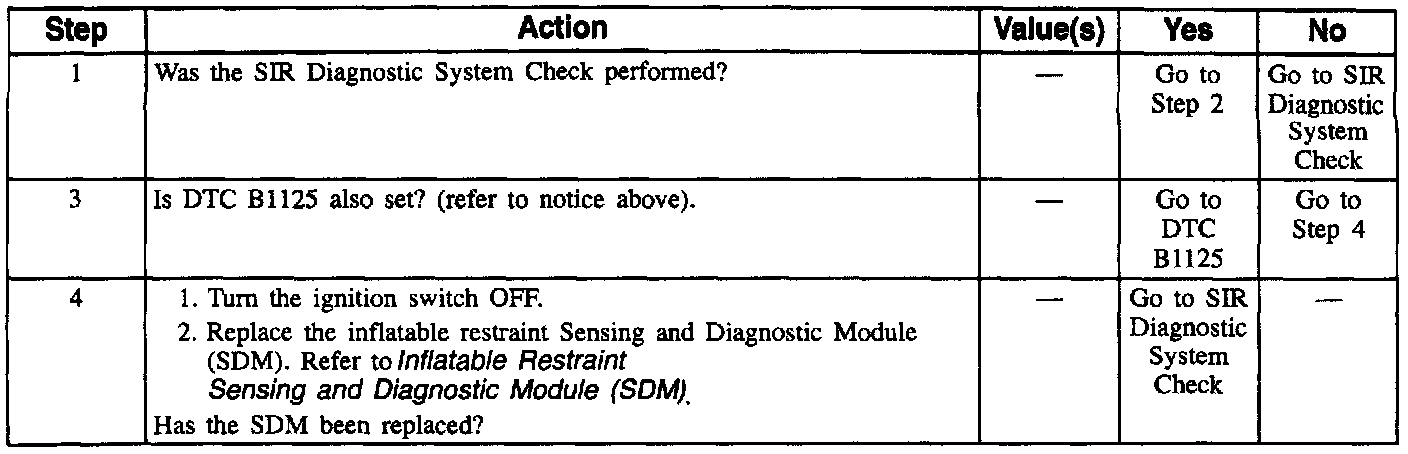

DIAGNOSTIC AIDS
DTC B1171 indicates a fault within the SDM. Replace the SDM if DTC B1171 sets, current or history.
