Home >> Cadillac >> 1997 >> Catera V6-3.0L VIN R >> Repair and Diagnosis >> Powertrain Management >> Transmission Control Systems >> Diagrams >> Connector Views >> Output Shaft Speed (OSS) Sensor

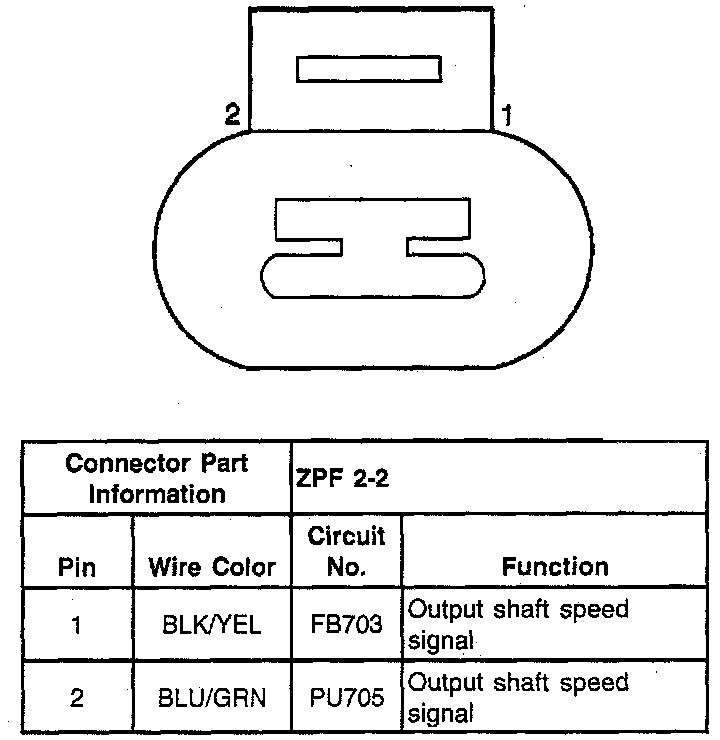

Output Shaft Speed (OSS) Sensor
