Rear Defogger and Heated Outside Mirrors

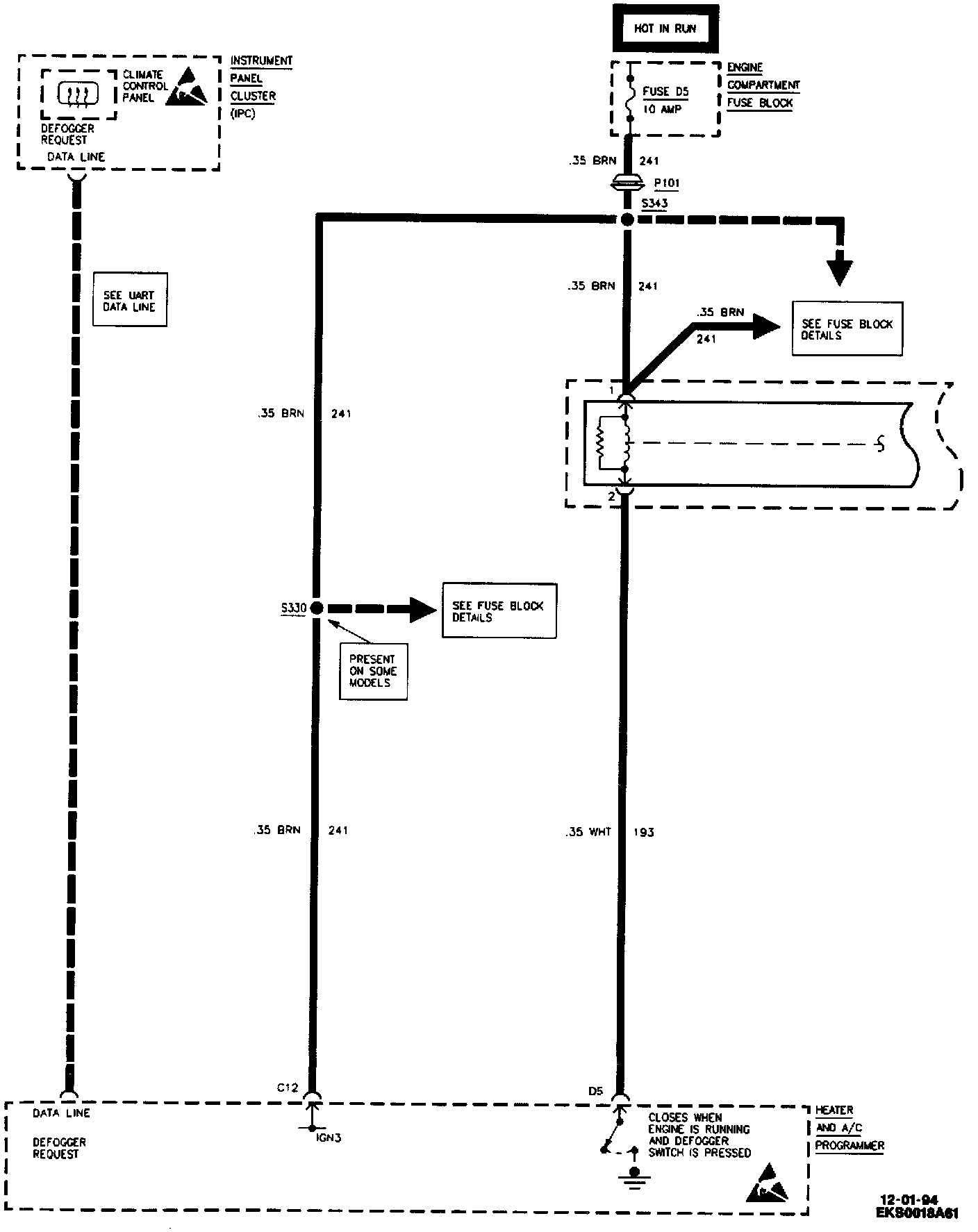

Defogger: Rear Window And Outside Mirrors (Part 1 Of 2):

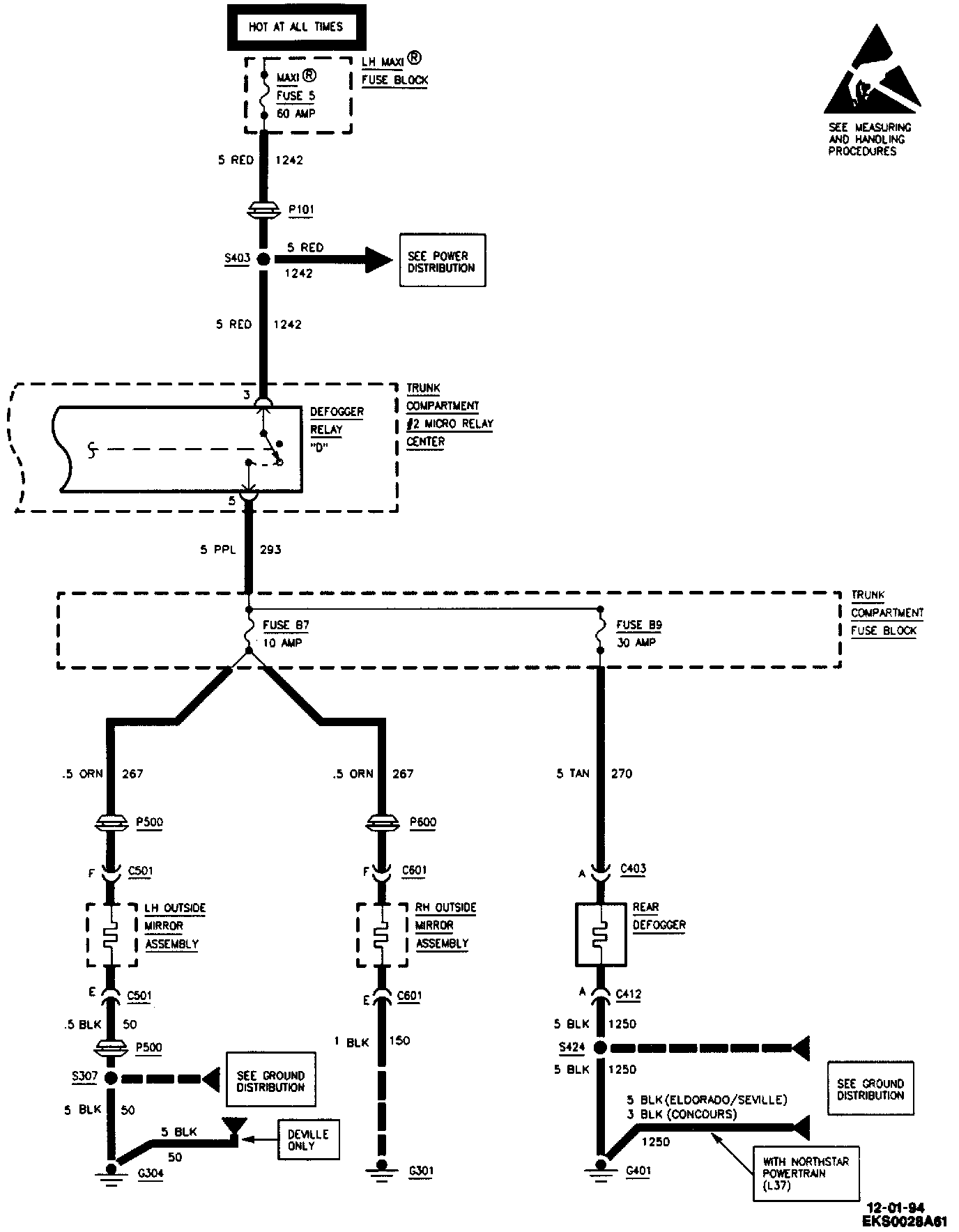

Defogger: Rear Window And Outside Mirrors (Part 2 Of 2):
