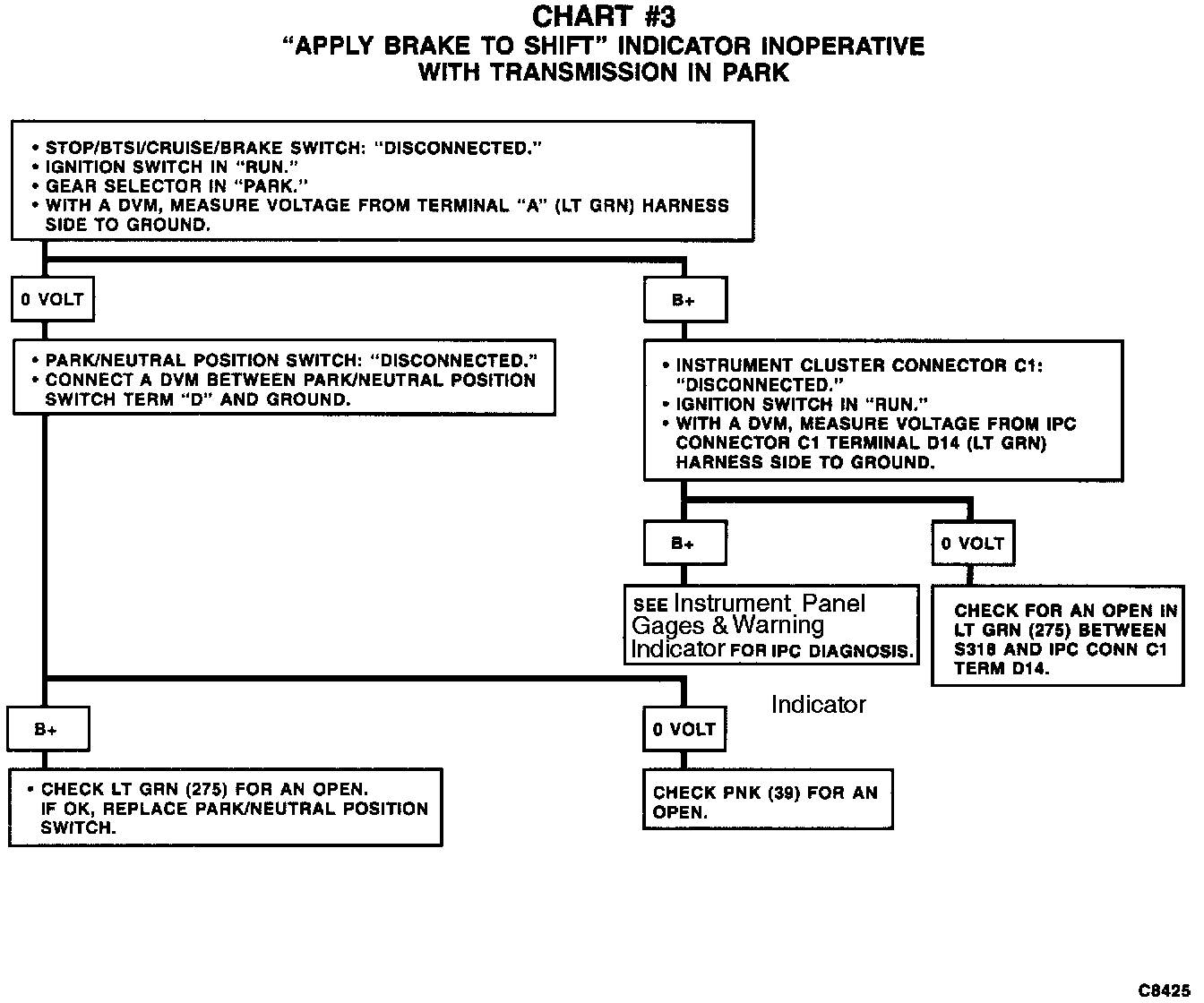

Chart #3 Apply Brake to Shift Indicator Indicator Inoperative
Chart #3 Apply Brake to Shift Indicator Indicator Inoperative
Chart #3 Apply Brake To Shift Indicator Indicator Inoperative:
