Rear RSS Rotary Sensor Replacement

REAR ROTARY SENSOR REPLACEMENT

Description:

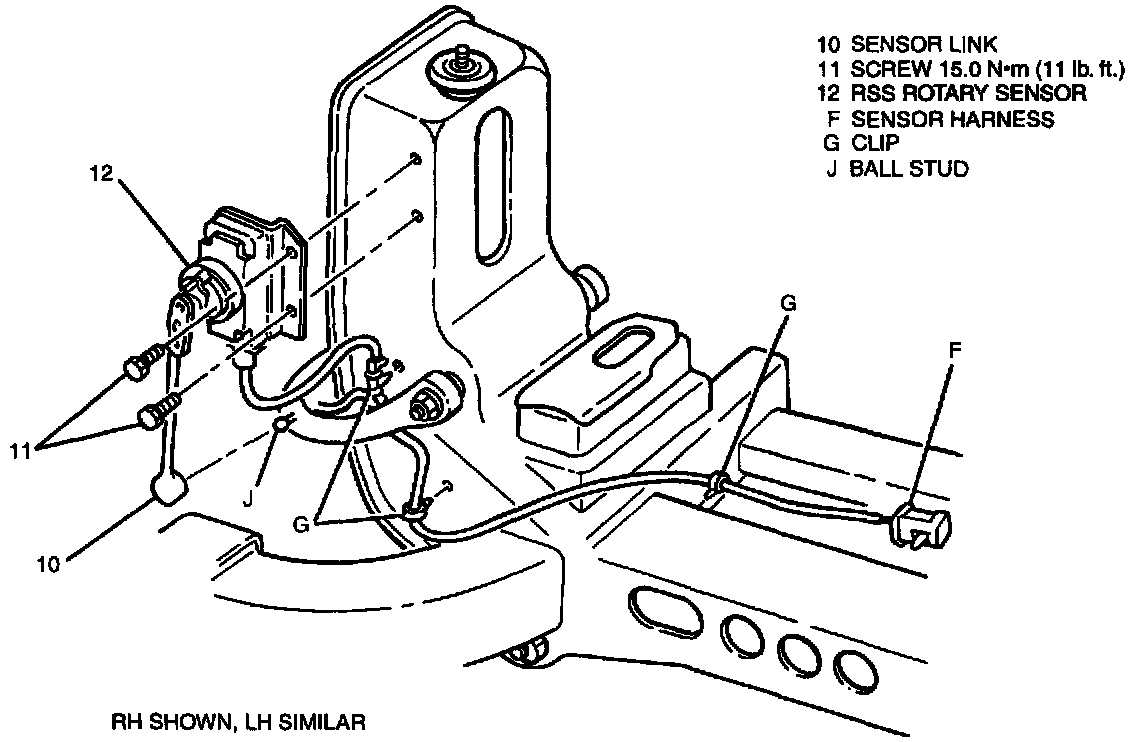

REMOVE OR DISCONNECT
1. Raise vehicle.
2. Wheel from vehicle.
3. Sensor harness (F) connector from vehicle harness connector.
4. Three clips (G) from vehicle.
5. Sensor link (10) from ball stud (J).
6. Two screws (11) and RSS rotary sensor (12) from vehicle.

INSTALL OR CONNECT
1. Install RSS rotary sensor (9) on vehicle with two screws (8).

TIGHTEN
^ Two screws to 15 Nm (11 lb. ft.).

2. Sensor link (7) to ball stud (D).
3. Three Clips (G) on vehicle.
4. Sensor harness (F) connector to vehicle harness connector.
5. Wheel to vehicle.
6. Lower vehicle.

IMPORTANT: Trim height adjustment must be performed.
